1/3 Hp Piston Air Motor, 900 Rpm, 267 L/min

0 reviews • Write a review

from

$712.70

Ex Tax: $712.70

Stock: In Stock
Model: RDDLZ-DAM4
Weight: 1.00
SKU: RDDLZ-DAM4

Available Options

Installation

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Sell piston air motor at low price, the piston type air motor with starting torque 2.61 Nm, stopping torque 3.92 Nm, free shipping and 12 months warranty. The pneumatic piston motor is widely used as drive motors for conveyor belts, etc.

Specification

Model	RDDLZ-DAM4
Power	1/3 hp
Gear ratio	1:1
Rated speed	900 rpm
Rated torque	2.16 Nm
Max. no-load speed	1800 rpm
Air consumption	267 L/min
Starting torque	2.61 Nm
Stopping torque	3.92 Nm
Mounting type	Basic type/ flange type/ foot type
Certificate	CE
Warranty	12 months

Dimension

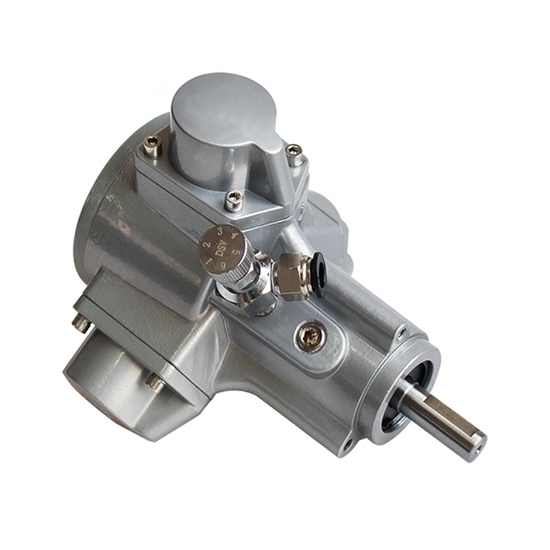

Basic type

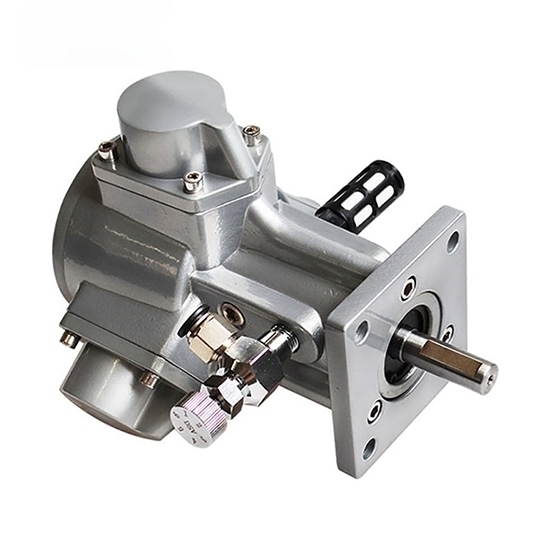

Flange type

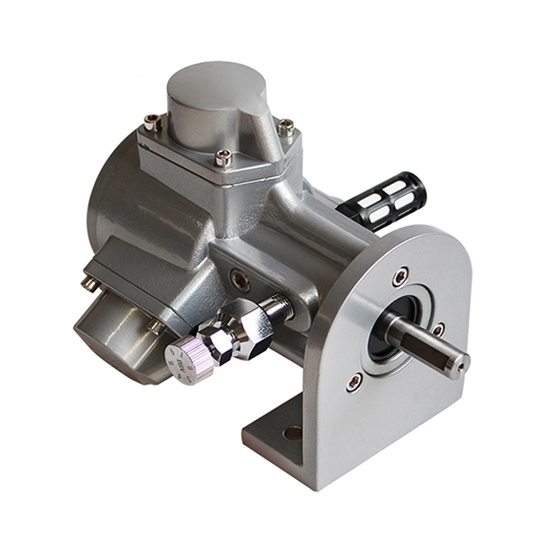

Foot type

Model	Dimension (mm)
Model	A1	A2	A3	A4	B	C	C1	D	E	F	G	H	J	M	N	M1	N1	M2	N2	Q	Q1	P
RDDLZ-DAM4	204	166	142	160	158	14	62	10	4	39	M6	48h7	26	86	65	100	70	50	30	9	9	71

Details

Tips: The Differences between Piston Air Motor and Motor.

1. The structure of piston air motor is simple, and the service life of the air motor is extremely long.
2. Not affected by the external environment, even in harsh environments such as water, dust, humidity, and dirt, because the internal pressure of the air motor is greater than the external pressure when it is running.
3. Safety, explosion-proof, air motor does not produce sparks, overheating, explosion, short circuit (electricity) and other dangerous factors, especially suitable for environments with flammable and explosive substances or high temperature, such as stirring of solvents, paints, chemicals, etc.
