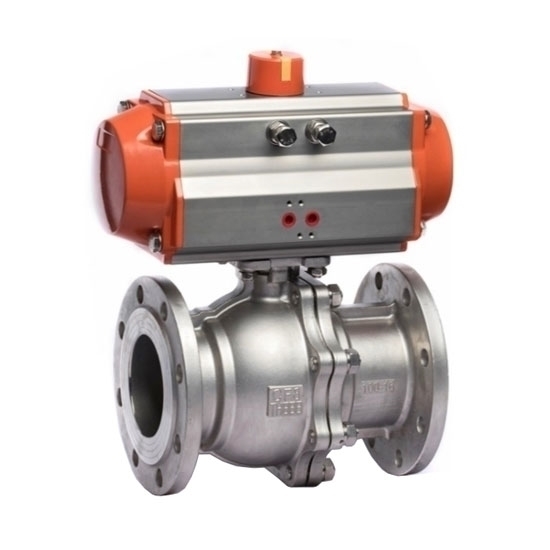

5" Pneumatic Flanged Ball Valve, 2 Way/ 3 Way

0 reviews • Write a review

from

$2,540.79

Ex Tax: $2,540.79

Stock: In Stock
Model: RDDLZ-PBV-125A
Weight: 1.00
SKU: RDDLZ-PBV-125A

Available Options

Short Description

Port

Flow Type

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Note: This ball valve cannot be used for drinking water.

Industrial 5 inch large full port flanged ball valve works with pneumatic actuator. The air powered ball valve is a control valve used for water, oxygen, gas, nitrogen gas, gasoline and other high temperature air and fluid transfer.

Specification

Ball Valve	Model	RDDLZ-Q641F-16P-DN125	RDDLZ-Q644F-16P-DN125	RDDLZ-Q645F-16P-DN125

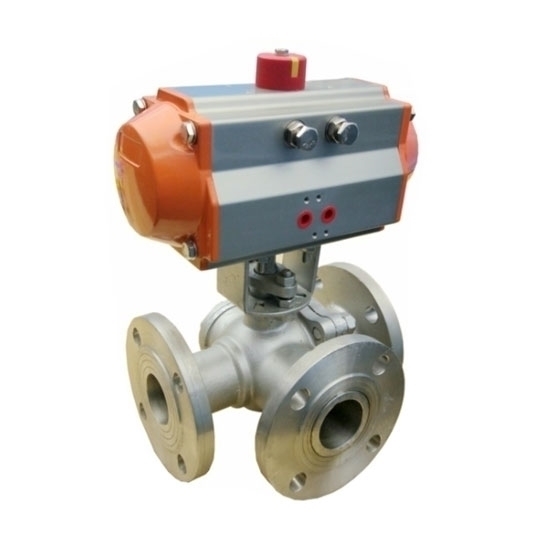

	Ball Valve Type (Optional)	2 Way Flanged Type	3 Way Flanged Type, L Port	3 Way Flanged Type, T Port
	Port Size	5 inch (DN125, 125mm)
	Environment Temperature	-10°C to 60°C
	Medium Temperature	-10°C to 180°C
	Medium Pressure	1.6MPa
	Seat Material	Plastic (PTFE)
	Body Material	Stainless Steel (SS 304)
Pneumatic Actuator	Model	RDDLZ-AT145D	RDDLZ-AT160D	RDDLZ-AT160D
	Bore Size	145mm	160mm	160mm
	Air Supply Port	1/4 inch	1/4 inch	1/4 inch
	Power Source	Compressed Air
	Actuator Type	Double Acting
	Air Pressure	0.3 ~ 0.8MPa
	Actuator Body Material	Aluminum Alloy

Details

2 Way/ 3 Way Flanged Ball Valve Body Dimension (Unit: mm)

DN	L1	T	f	D	B	C	H1	H2	A1	A2	L2	N-M
125	320	22	3	245	185	210	408	390	418	450	380	8-φ18

Pneumatic Actuator Dimension (Unit: mm)

RDDLZ-AT145D

Q	A	B	C	D	E	F	G	H	I
Φ102/Φ125mm	418mm	167mm	80mm	87mm	218mm	178mm	30mm	80mm	PF
J	K	O	P	S	T	U	V	W	X
M6	1/4"	30mm	62mm	4mm	4mm	12mm	24mm	16mm	32mm

RDDLZ-AT160D

Q	A	B	C	D	E	F	G	H	I
Φ102/Φ125mm	450mm	193mm	89mm	104mm	226mm	197mm	30mm	80mm	PF
J	K	O	P	S	T	U	V	W	X
M6	1/4"	30mm	80mm	4mm	4mm	12mm	24mm	16mm	32mm

Three Way Ball Valve Flow Pattern

T Type:

L Type:

Tips: Pneumatic actuated ball valve working principle

Pneumatic actuated ball valve is a kind of pneumatic valve, which is driven by air source. Pneumatic ball valve is composed of a pneumatic actuator and a ball valve, which not only saves time and effort, but also can control multiple ball valves at the same time through the controller. The compressed air enters the pneumatic actuator to drive the ball valve to turn 0~90°, open and close the valve to control the size of the fluid. The valve positioner can be assembled according to the working conditions, so that the ball valve can adjust the medium. When the ball valve rotates to 90°, the valve is closed, thereby blocking the flow of the medium.
