1" Pneumatic Ball Valve, 2 Way/ 3 Way

0 reviews • Write a review

from

$151.49

Ex Tax: $151.49

Stock: In Stock
Model: RDDLZ-PBV-25A
Weight: 1.00
SKU: RDDLZ-PBV-25A

Available Options

Port

Flow Type

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Note: This ball valve cannot be used for drinking water.

Industrial 1 inch pneumatic ball valve with an air actuator requires compressed air to work, which is widely used in petroleum, chemical industry, power generation, paper making, atomic energy, aviation, rocket and other sectors, as well as daily life.

Specification

Ball Valve	Model	RDDLZ-Q611F-16P-DN25	RDDLZ-Q641F-16P-DN25	RDDLZ-Q691X-10U-DN25	RDDLZ-Q614F-16P-DN25	RDDLZ-Q615F-16P-DN25	RDDLZ-Q644F-16P-DN25	RDDLZ-Q645F-16P-DN25
	Ball Valve Type (Optional)	2 Way Threaded Type	2 Way Flanged Type	2 Way PVC True Union Type	3 Way Threaded Type, L Port	3 Way Threaded Type, T Port	3 Way Flanged Type, L Port	3 Way Flanged Type, T Port
	Port Size	1 inch (DN25, 25mm)
	Environment Temperature	-10°C to 60°C
	Medium Temperature	-10°C to 180°C
	Medium Pressure	1.6MPa
	Seat Material	Plastic (PTFE)
	Body Material	Stainless Steel (SS 304)	Stainless Steel (SS 304)	PVC	Stainless Steel (SS 304)	Stainless Steel (SS 304)	Stainless Steel (SS 304)	Stainless Steel (SS 304)
Pneumatic Actuator	Model	RDDLZ-AT050D	RDDLZ-AT063D	RDDLZ-AT050D	RDDLZ-AT063D	RDDLZ-AT063D	RDDLZ-AT063D	RDDLZ-AT063D
	Bore Size	50mm	63mm	50mm	63mm	63mm	63mm	63mm
	Air Supply Port	1/8 inch	1/4 inch	1/8 inch	1/4 inch	1/4 inch	1/4 inch	1/4 inch
	Power Source	Compressed Air
	Actuator Type	Double Acting
	Air Pressure	0.3 ~ 0.8MPa
	Actuator Body Material	Aluminum Alloy

Details

Body Dimension (Unit: mm)

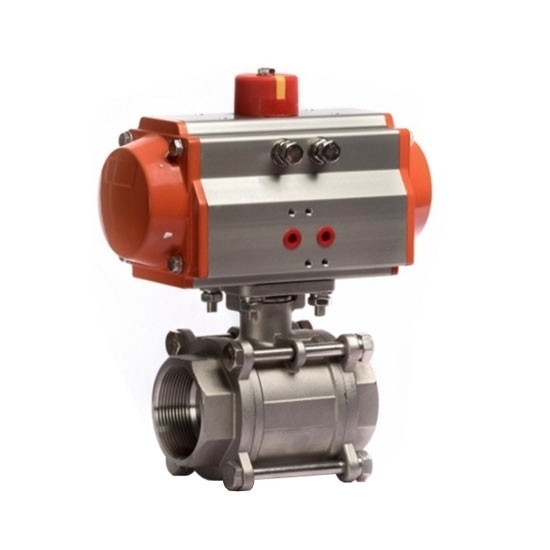

2 way/ 3 way, stainless steel, threaded type

φd	L1	A	H1	L2	H2
25	90	146	146	86	135

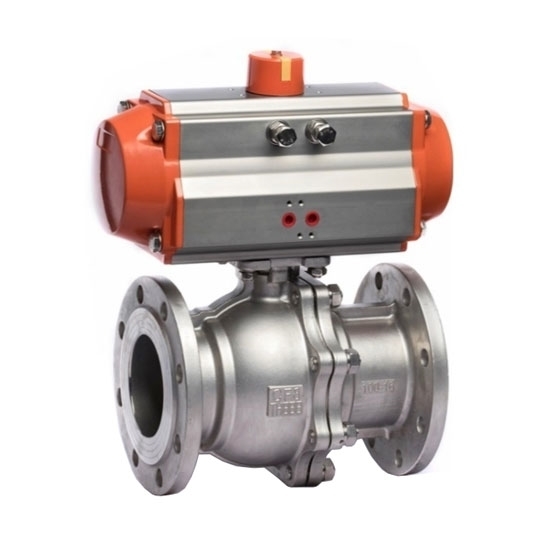

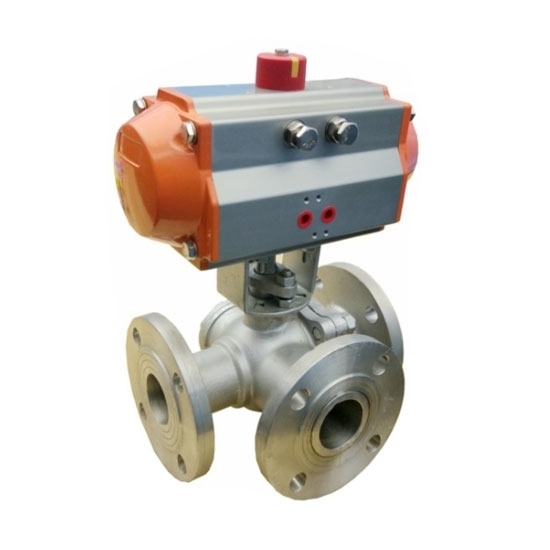

2 way/ 3 way stainless steel, flanged type

DN	L1	T	f	D	B	C	H1	H2	A1	A2	L2	N-M
25	150	16	2	115	65	85	175	175	167	167	180	4-φ14

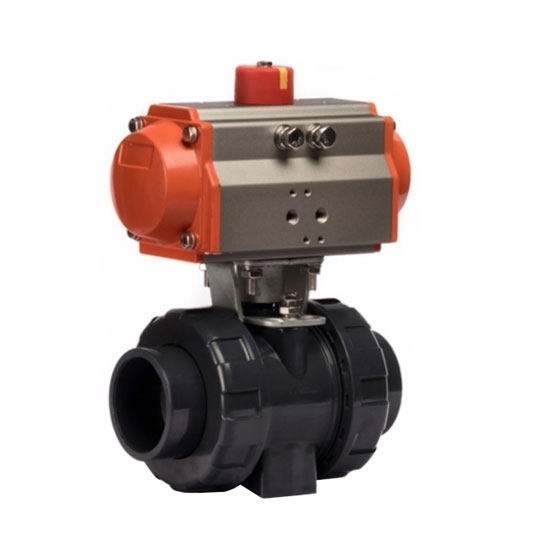

2 way, PVC true union type

DN	D	D1	d	L1	A	H
25	33	44	23	20	146	187

Pneumatic Actuator Dimension (Unit: mm)

RDDLZ-AT050D

Q	A	B	C	D	E	F	G	H	I
Φ36/Φ50mm	146mm	70mm	30mm	40mm	96mm	69mm	30mm	80mm	PF
J	K	O	P	S	T	U	V	W	X
M6	1/8"	20mm	40.5mm	4mm	4mm	12mm	24mm	16mm	32mm

RDDLZ-AT063D

Q	A	B	C	D	E	F	G	H	I
Φ36/Φ50mm	167mm	82mm	35mm	47mm	113mm	85mm	30mm	80mm	PF
J	K	O	P	S	T	U	V	W	X
M6	1/4"	20mm	40.5mm	4mm	4mm	12mm	24mm	16mm	32mm

Three Way Ball Valve Flow Pattern

T Type:

L Type:

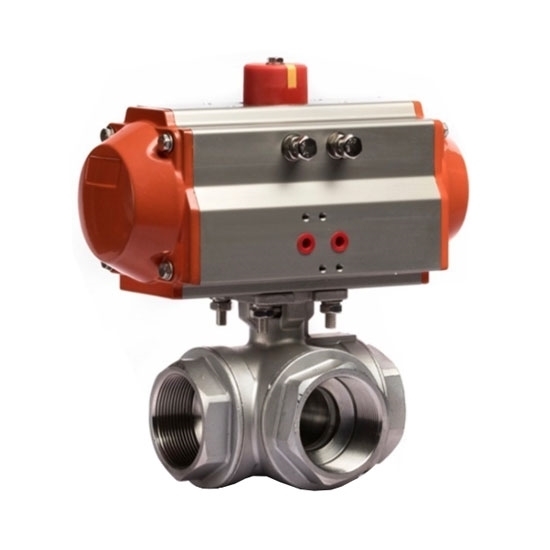

Tips: How to install a threaded 3 way pneumatic ball valve?

Remove the protective covers on both sides of the flange end of the pneumatic three-way female ball valve, and rinse and clean with the valve fully open.
The whole machine should be tested according to the regulations before installation, and it can be installed online only after passing the test.
Before preparing to connect with the pipeline, it is necessary to rinse and remove the remaining impurities in the clean pipeline.
During the installation of the pneumatic three-way internal thread ball valve, please do not use the actuator part of the valve as the lifting point to avoid damage to the actuator and accessories.
The 3 way threaded pneumatic ball valve should be installed in the horizontal or vertical direction of the pipeline.
The pipeline near the installation point of the pneumatic three-way ball valve shall not be sagging or subjected to external force. Pipe supports or supports can be used to eliminate the deviation of the pipeline.
After the pneumatic ball valve is connected to the pipeline, please cross-lock the flange connecting bolts with the specified torque.
