1/2" Pneumatic Ball Valve, 2 Way/ 3 Way

0 reviews • Write a review

from

$144.99

Ex Tax: $144.99

Stock: In Stock
Model: RDDLZ-PBV-15A
Weight: 1.00
SKU: RDDLZ-PBV-15A

Available Options

Port

Flow Type

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Note: This ball valve cannot be used for drinking water.

Compact pneumatic actuated ball valve has such advantages as small fluid resistance, simple structure, small in size and light in weight. This air powered ball valve is made from high performance PVC or stainless steel, allowing it to service different medium from low to high temperature. It is widely used for water, oxygen, gas, nitrogen gas, gasoline and other air and fluid control.

Specification

Ball Valve	Model	RDDLZ-Q611F-16P-DN15	RDDLZ-Q641F-16P-DN15	RDDLZ-Q691X-10U-DN15	RDDLZ-Q614F-16P-DN15	RDDLZ-Q615F-16P-DN15	RDDLZ-Q644F-16P-DN15	RDDLZ-Q645F-16P-DN15

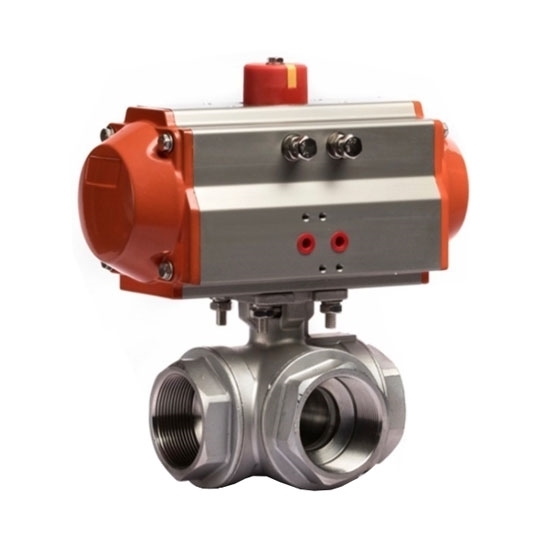

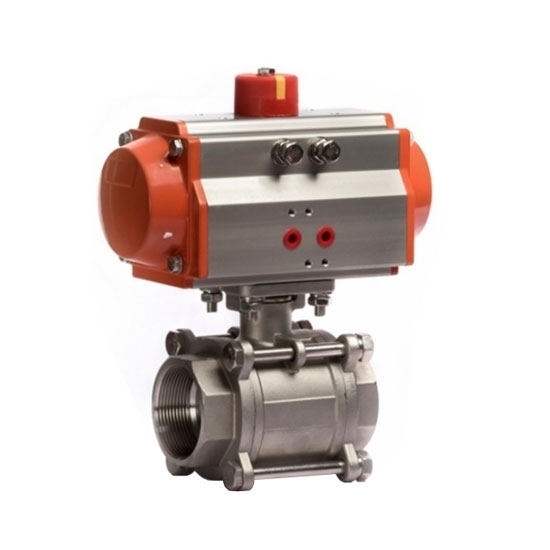

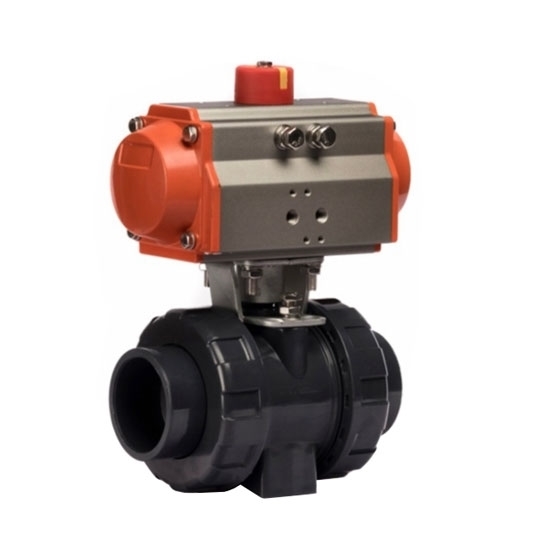

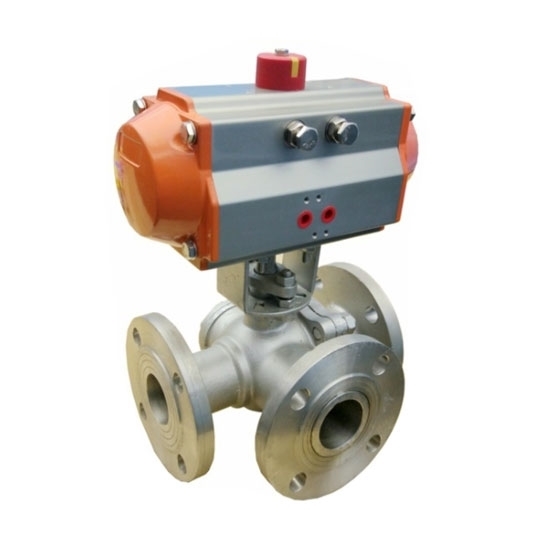

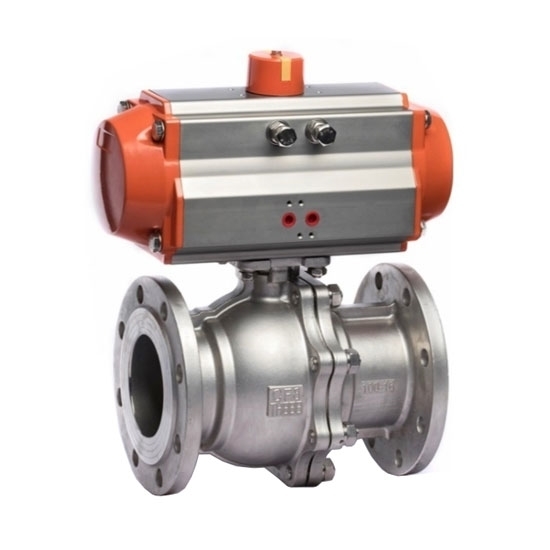

	Ball Valve Type (Optional)	2 Way Threaded Type	2 Way Flanged Type	2 Way PVC True Union Type	3 Way Threaded Type, L Port	3 Way Threaded Type, T Port	3 Way Flanged Type, L Port	3 Way Flanged Type, T Port
	Port Size	1/2 inch (DN15, 15mm)
	Environment Temperature	-10°C to 60°C
	Medium Temperature	-10°C to 180°C
	Medium Pressure	1.6MPa
	Seat Material	Plastic (PTFE)
	Body Material	Stainless Steel (SS304)	Stainless Steel (SS 304)	PVC	Stainless Steel (SS 304)	Stainless Steel (SS 304)	Stainless Steel (SS 304)	Stainless Steel (SS 304)
Pneumatic Actuator	Model	RDDLZ-AT050D	RDDLZ-AT50D	RDDLZ-AT50D	RDDLZ-AT50D	RDDLZ-AT50D	RDDLZ-AT063D	RDDLZ-AT063D
	Bore Size	50mm	50mm	50mm	50mm	50mm	63mm	63mm
	Air Supply Port	1/8 inch	1/8 inch	1/8 inch	1/8 inch	1/8 inch	1/4 inch	1/4 inch
	Power Source	Compressed Air
	Actuator Type	Double Acting
	Air Pressure	0.3 ~ 0.8MPa
	Actuator Body Material	Aluminum Alloy

Details

Body Dimension (Unit: mm)

2 way/ 3 way, stainless steel, threaded type

φd	L1	A	H1	L2	H2
15	72	146	139	68	115

2 way/ 3 way stainless steel, flanged type

DN	L1	T	f	D	B	C	H1	H2	A1	A2	L2	N-M
15	130	14	2	95	45	65	150	166	146	167	150	4-φ14

2 way, PVC true union type

DN	D	D1	d	L1	A	H
15	20	31	13	15	146	175

Pneumatic Actuator Dimension (Unit: mm)

RDDLZ-AT050D

Q	A	B	C	D	E	F	G	H	I
Φ36/Φ50mm	146mm	70mm	30mm	40mm	96mm	69mm	30mm	80mm	PF
J	K	O	P	S	T	U	V	W	X
M6	1/8"	20mm	40.5mm	4mm	4mm	12mm	24mm	16mm	32mm

RDDLZ-AT063D

Q	A	B	C	D	E	F	G	H	I
Φ36/Φ50mm	167mm	82mm	35mm	47mm	113mm	85mm	30mm	80mm	PF
J	K	O	P	S	T	U	V	W	X
M6	1/4"	20mm	40.5mm	4mm	4mm	12mm	24mm	16mm	32mm

Three Way Ball Valve Flow Pattern

T Type:

L Type:

Tips: Threaded type pneumatic ball valve features

The fluid resistance is small, and its resistance coefficient is equal to the pipe section of the same length.
Simple structure, small size and light weight.
The sealing material of the ball valve is plastic, which has good sealing performance. The threaded ball valve also is widely used in vacuum systems.
Convenient operation, quick opening and closing, only need to rotate 90° from fully open to fully closed, which is convenient for long-distance control.
The maintenance is convenient, the ball valve has a simple structure, the sealing ring is generally movable, and it is more convenient to disassemble and replace.
When fully open or fully closed, the sealing surfaces of the sphere and the valve seat are isolated from the medium, and the sealing surface of the valve will not be eroded when the medium passes through.
It has a wide range of applications and can be applied from high vacuum to high pressure.
