Foot Switch, 250V, 10A, 1NO1NC

0 reviews • Write a review

from

$38.10

Ex Tax: $38.10

Stock: In Stock
Model: RDDLZ-CFS-3
Weight: 1.00
SKU: RDDLZ-CFS-3

Available Options

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

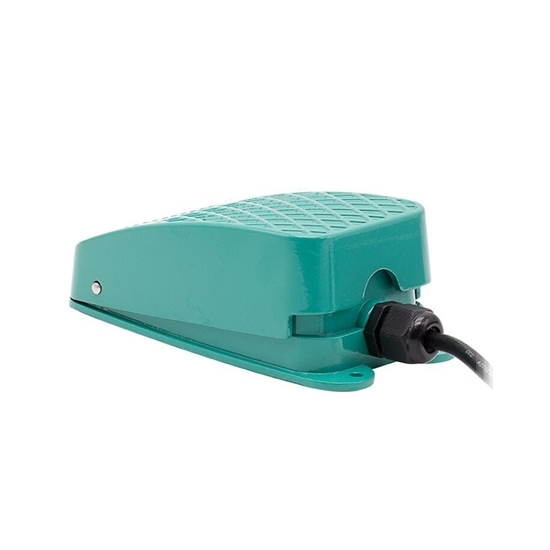

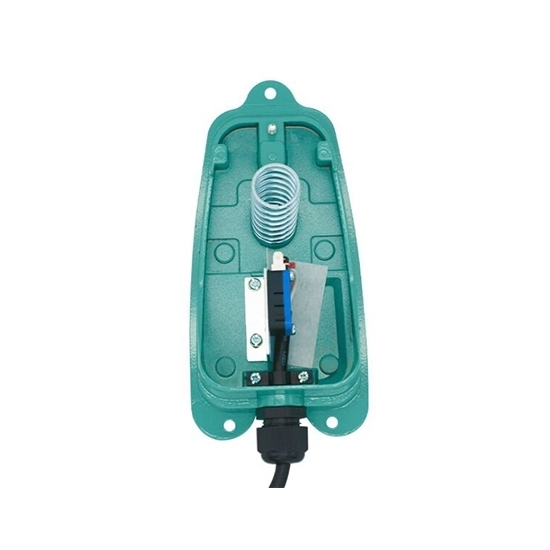

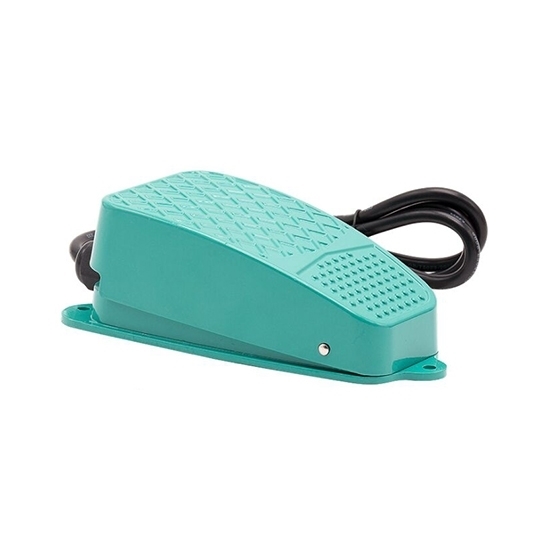

10A foot pedal switch with 0.75mm², 3C/ 0.5m, 1m-3m cable length, CMV-100D micro switch type, design with aluminum cast material and it has CE certificate.

Specification

Model	RDDLZ-CFS-3
Rated voltage	250V AC
Rated current	10A
Operation type	Momentary
Micro switch type	CMV-100D
Cable length	0.75mm², 3C/ 0.5m, 1m-3m
Contact	1NO1NC
Action force	1.2kg
Shell material	Aluminum Cast
Weight	0.51kg
Color	Green
Certificate	CE
Warranty	12 months

NOTE: The default size of conduit connector is M20x1.5, outfiting cable connector. Conduit connector size is PG13.5, with product model number plus (-P), example: CFS-302-P.

Dimension (unit=mm)

Tips: Precautions of Foot Switch?

According to the nature of the load and the current value, please pay attention to the rated load of the product.
Please pay attention to short-circuit and open circuit of internal wiring during transportation and movement.
Please pay attention to the protection level of the product when it is used in places with a lot of water, oil, dust, etc.
Heavy pressure and impact are the direct causes of product damage, so please be careful when using it.
