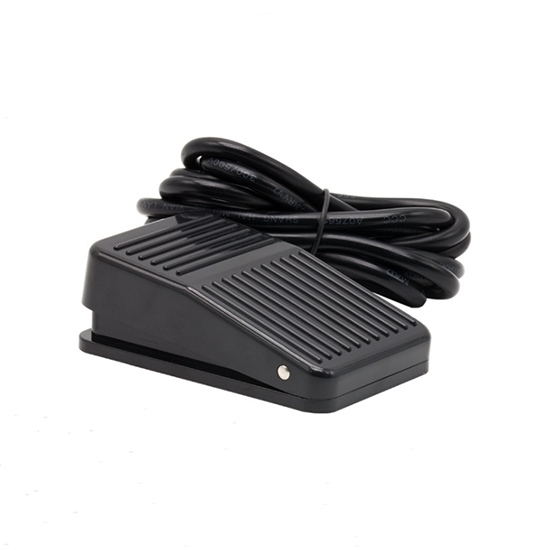

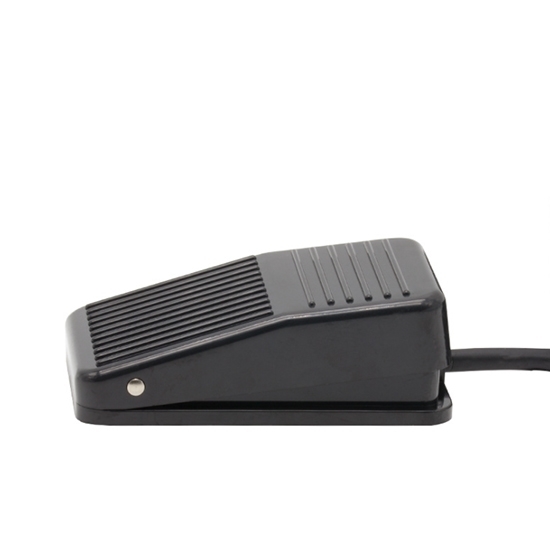

Electric Foot Switch, 250V, 10A, 1NO1NC

0 reviews • Write a review

from

$31.86

Ex Tax: $31.86

Stock: In Stock
Model: RDDLZ-CFS-01
Weight: 1.00
SKU: RDDLZ-CFS-01

Available Options

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

250V pedal switch with 0.5mm², 3C/ 1m-3m cable length, CMV-100D micro switch type, 12 months warranty. The electric foot pedal has advantages of light weight, simple operation and long service life.

Specification

Model	RDDLZ-CFS-01
Rated voltage	250V AC
Rated current	10A
Operation type	Momentary

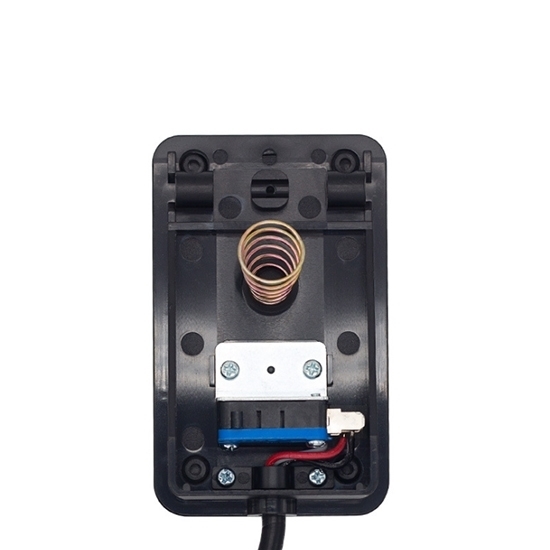

Micro switch type	CMV-100D
Cable length	0.5mm², 3C/ 1m-3m
Contact	1NO1NC
Action force	0.7kg
Shell material	Plastic
Weight	0.22kg
Color	Black
Certificate	CE
Warranty	12 months

NOTE: The default size of conduit connector is M20x1.5, outfiting cable connector. Conduit connector size is PG13.5, with product model number plus (-P), example: CFS-302-P.

Dimension (unit=mm)

Tips: What is Foot Switch?

A foot switch is a switch that controls the on and off of a circuit by stepping on or stepping on it. It is used in a control circuit that cannot be touched by both hands to replace both hands to achieve the purpose of operation.

A simple foot switch is actually a built-in travel switch, when the foot pedal gives a signal, the switch is executed. But in the field of welding, the function of the foot switch also plays a role in controlling the size of the output current. This type of foot switch can also be divided into two categories: one is mechanical foot switch; and other one is inductive foot switch. The mechanical foot switch is a traditional rack and pinion drive, and the induction type is based on the principle of electromagnetic induction.
