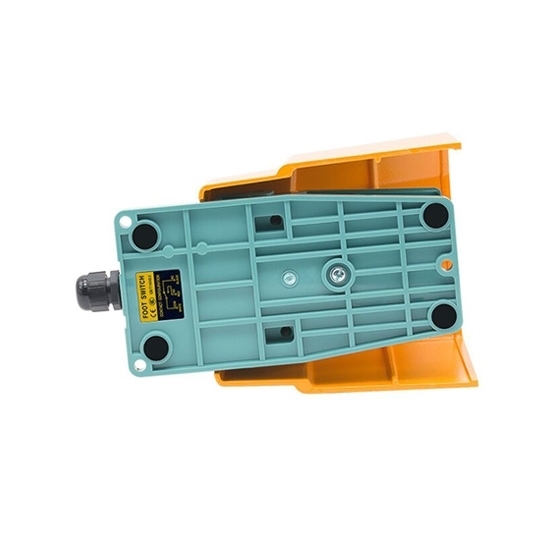

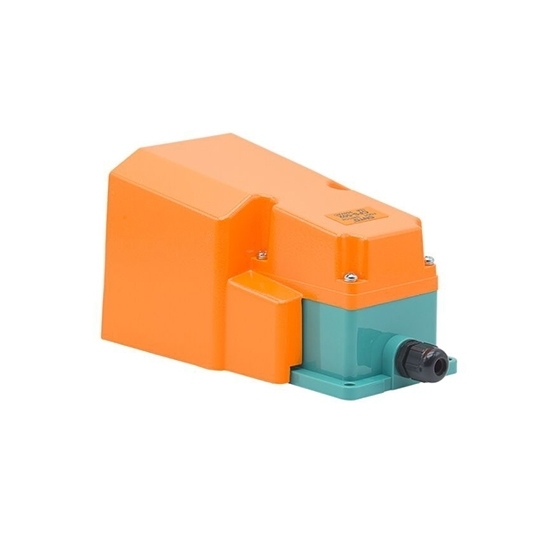

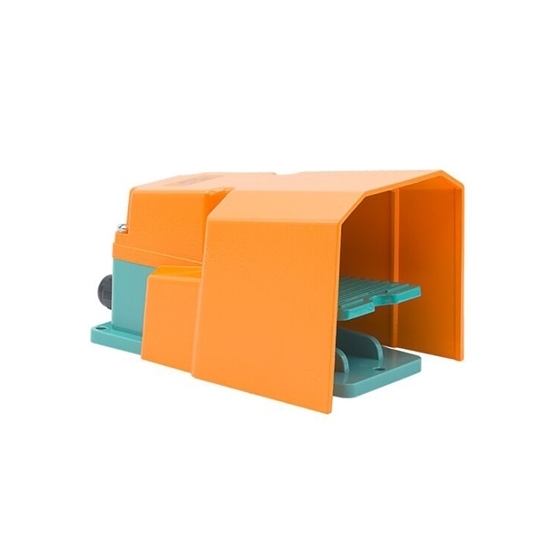

Foot Pedal Switch, 250V, 15A, 1NO1NC

0 reviews • Write a review

from

$56.20

Ex Tax: $56.20

Stock: In Stock
Model: RDDLZ-CFS-502
Weight: 1.00
SKU: RDDLZ-CFS-502

Available Options

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Factory price pedal switch with 1NO1NC contact, CMV-100D micro switch type. It has advantages of light weight, simple operation and long service life.

Specification

Model	RDDLZ-CFS-502
Rated voltage	250V AC
Rated current	15A
Operation type	Momentary
Micro switch type	CM-1704
Cable type	Accessory: Cable gland (No cable)
Contact	1NO1NC
Action force	3.2kg
Shell material	Aluminum Cast
Weight	1.14kg
Color	Orange
Certificate	CE
Warranty	12 months

NOTE: The default size of conduit connector is M20x1.5, outfiting cable connector. Conduit connector size is PG13.5, with product model number plus (-P), example: CFS-302-P.

Dimension (unit=mm)

Tips: How to Install Foot Switch?

1. The operation circuit is turned on and off by stepping on or stepping on it, and it can also be used to control the switch of the output current. The internal structure of the foot switch is a set of normally open and normally closed. In a 250V circuit, to control a three-phase motor, an AC contactor must be used. The normally open two ends of the foot switch are stringed in the AC contactor coil control loop.

2. The foot switch has three lines, one control line is normally open, one control line is normally closed, and the other is a common line of normally open and normally closed. We only use one control line which is normally open. One is normally open and the other one is normally closed.

3. An AC contactor must be used, and the normally open two ends of the foot switch are in series in the AC contactor coil control loop.
