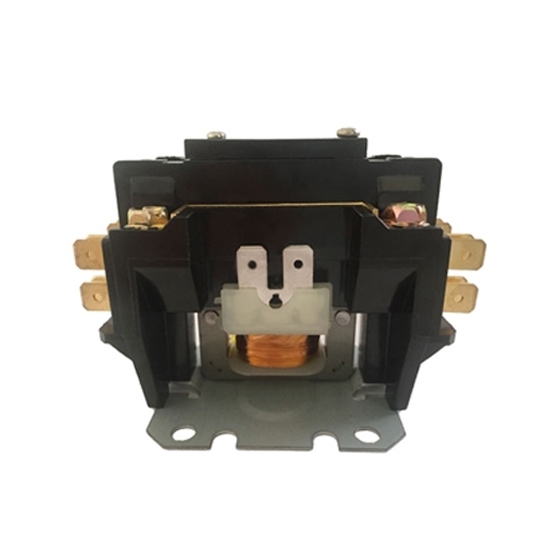

1 Pole Definite Purpose Contactor, 20 Amp ~ 40 Amp

0 reviews • Write a review

from

$54.44

Ex Tax: $54.44

Stock: In Stock
Model: RDDLZ-DPC-1P
Weight: 1.00
SKU: RDDLZ-DPC-1P

Available Options

Short Description

Current

Coil Voltage(V)

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

1 pole definite purpose contactor is ac contactor. It has 24V, 110V/120V, 208V/240V, 277V coil voltage and wide current range 20 amp ~ 40 amp. Dp contactor provides compact load control and is ideal for motors and compressors in resistance heating, air conditioning and refrigeration, and food service equipment.

Features

DP contactor has a wide current range (from 20 A to 40 A)
Standard AC operating coil ranges for control circuit applications: 24V, 120V, 208-240V, and 277V.
1 pole, 2 pole, 3 pole and 4 pole definite purpose contactors are available.
Various contact configurations from 1 pole to 4 pole.
UL certification, CSA certification.

Specifications

Model	RDDLZ-XKJL1-1P
Pole	1
Coil Voltage	24V, 110V/120V, 208V/240V, 277V AC
Hertz	50/60 Hz
Temperature Range:	- 40°F to + 150° F / - 40°C to + 65° C
Mechanical Life	1, 000, 000 times
Electrical Life	250, 000 times
Certificate	UL/CCC

Technical Parameter

Model	FLA (A)	LRA (A)	LRA (A)	LRA (A)	LRA (A)	Phase	Resistive Amps Rating
Model	FLA (A)	480V AC	600V AC	277V AC	240V AC	Phase	Resistive Amps Rating
RDDLZ-XKJL1-1P	20	100	80	120	120	1	30
	25	125	100	150	150	1	35
	30	150	120	180	180	1	40
	40	200	160	240	240	1	50

1 Pole Definite Purpose Contactor Dimension (Unit: mm)

Tips: What is a Definite purpose contactor?

Definite purpose contactors and starters are electric switchgear designed specifically for the heating, ventilation, air conditioning, and refrigeration (HVAC) industries. They go through strict quality assurance inspection and testing procedures.
