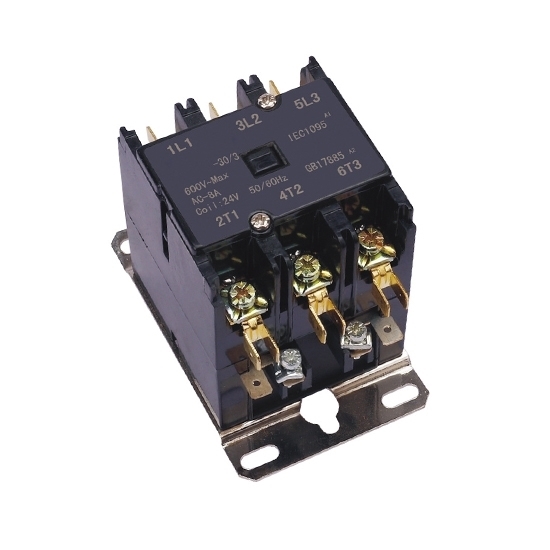

3 Pole Definite Purpose Contactor, 20 Amp ~ 90 Amp

0 reviews • Write a review

from

$59.60

Ex Tax: $59.60

Stock: In Stock
Model: RDDLZ-DPC-3P
Weight: 1.00
SKU: RDDLZ-DPC-3P

Available Options

Short Description

Current

Coil Voltage(V)

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Get a high performance 3 pole definite purpose contactor at low price. It is an HVAC contactor that has 24V, 110V/120V, 208V/240V, 277V coil voltage. Wide current range 20 amp ~ 90 amp DP contactor for selection. Air conditioner contactor provides compact load control, designed for motors and compressors in resistance heating, air conditioning and refrigeration, and food service equipment.

Features

DP contactor has a wide current range (from 20 A to 90 A)
Standard AC operating coil ranges for control circuit applications: 24V, 120V, 208-240V, and 277V.
1 pole, 2 pole, 3 pole and 4 pole definite purpose contactors are available.
Various contact configurations from 1 pole to 4 pole.
UL certification, CSA certification.

Specifications

Model	RDDLZ-XKJL1-3P
Pole	3
Coil Voltage	24V, 110V/120V, 208V/240V, 277V AC
Hertz	50/60 Hz
Temperature Range:	- 40°F to + 150° F / - 40°C to + 65° C
Mechanical Life	1, 000, 000 times
Electrical Life	250, 000 times
Certificate	UL/CCC

Technical Parameter

Model	FLA (A)	LRA (A)	LRA (A)	LRA (A)	LRA (A)	Phase	Resistive Amps Rating
Model	FLA (A)	480V AC	600V AC	277V AC	240V AC	Phase	277V AC
RDDLZ-XKJL1-3P	20	100	80	120	120	3	30
	25	125	100	150	150	3	35
	30	150	120	180	180	3	40
	40	200	160	240	240	3	50
	50	240	200	240	300	3	65
	60	300	240	240	360	3	75
	75	300	-	300	450	3	90
	90	360	-	360	540	3	120

3 Pole 20-40 FLA Definite Purpose Contactor Dimension (Unit: mm)

3 Pole 50-60 FLA Definite Purpose Contactor Dimension (Unit: mm)

3 Pole 75-90 FLA Definite Purpose Contactor Dimension (Unit: mm)

Tips for using the AC contactor

The open type cannot be used inflammable and explosive places and all places with a lot of conductive dust, nor can it be used outdoors without protective measures because sparks and arcs are generated when the load is disconnected.
When using, pay attention to whether the contacts and coils are overheated. The three-phase main contacts must be synchronized, and the arc must not be too large when breaking.
When the AC contactor controls the motor or circuit, it must be used in conjunction with an overcurrent protector. The contactor itself has no overcurrent protection performance.
The suction surface of the short-circuit ring and the electromagnet should be kept intact and clean.
Due to poor heat dissipation conditions, when the contactor is installed in the control box or protective enclosure, the ambient temperature is relatively high, so the capacity should be appropriately reduced for use.
