200A High Voltage DC Contactor, 12V/24V Coil

0 reviews • Write a review

from

$161.08

Ex Tax: $161.08

Stock: In Stock
Model: RDDLZ-DCCON-HV200
Weight: 1.00
SKU: RDDLZ-DCCON-HV200

Available Options

Short Description

Coil Rated Voltage

Auxiliary Contact

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

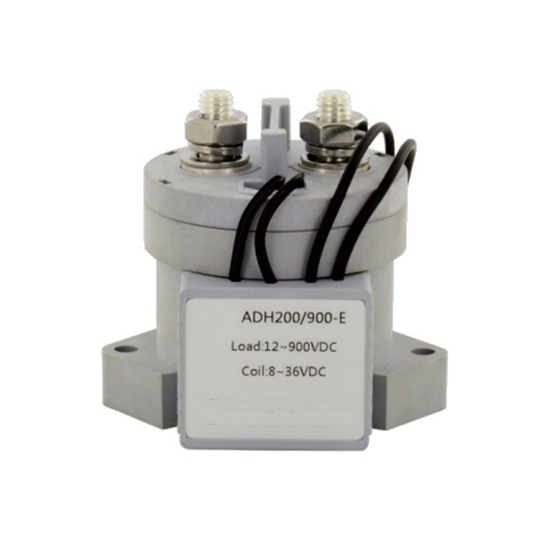

RDDLZ 200A high voltage DC contactors with 12v or 24v coils, are widely used in the DC high voltage field, such as electric cars, hybrid electric vehicles, fuel cell vehicles, construction machinery, photovoltaic power generation, wind power generation, battery charging systems, DC power supply control system.

Features

DC 1000V rated load voltage of contact circuit.
Normally open type (SPST-NO) of contact form.
The main contact voltage drops at 200A, not above 100mV.
The connection of contact and coil needs to be nonpolarity.
Efficient coil, retentive power is only 2-2.3W, counter electromotive force is 0V.
The joint way of the coil is very convenient.
The coil has no counterforce of electromagnetism.
Compared to similar products, this product is the smallest and lightest.

Specifications

Basics	Model	RDDLZ-ADH200
	Dimension	80 x 65 x 72 mm
	Weight	480 g
Main Contact Parameters	Contact Form	1 NO
	Leading-Out	M8 Internal thread
	Rated Load Current	200 A
	Maximum Switching Voltage	1000V DC
	Maximum Switching Current	2000A 320V DC (≥1 times)
	Maximum Switching Power	640 kW
Auxiliary Contact Parameters	Aux. Contact Type	1NO/1NC/1CO
	Rated Current	5A
	Maximum Breaking Voltage	120V DC
Coil Parameters	Standard Type Voltage	12/24V DC
	Work Voltage	8~36V
	Max Voltage	36 V
	Coil Resistance	3.1Ω
	Average Holding Current	0.14 A
	Steady State Power	1.7~2 W
	Actuation Time	≤30 ms
	Release Time	≤10 ms
	Bounce Time	≤5 ms
Mechanical Specification	Stability	196 m/s²(20G)
	Strength	490 m/s²(50G)
	Vibration	80 ~2000Hz 98m/s²(20G)
	IP Grade	IP67
Environment	Operating Temperature	-40℃~85℃
Environment	Operating Humidity	5~95% RH

Installation Diagram (Unit: mm)
High Voltage DC Contactor Coil Schematic

Details

Tips: Why AC contactor and DC contactor can not be used interchangeably?

AC contactor can be used to replace DC contactor in emergency, however, the pick-up time can't exceed 2 hours (Because the heat dissipation of AC coils is poorer than the DC coils, this is determined by their different structures.) If the AC contactor would be used for a long time, a resistance had better to be connect with the AC coil in series. Conversely, the DC contactor can’t be used to replace AC contactor.
AC contactor has fewer turns while DC contactor has more, which can be distinguished from the volume of coils. If the current is too large in the main circuit (such as Ie>250), the contactor shall adopt a series duplex winding coil. The reactance of the coils of a DC contactor is large and the current is small. When it is connected with an AC, it will not break. However, coils of an AC contactor have small reactance and large current, so when the coils are connected with a DC, they will be damaged.
AC contactor has fewer turns and smaller resistance, when the coils are connected with an AC, a larger inductance will be produced, which is far greater than the coil resistance, excitation current of the coils is mainly determined by the inductance. If the coils are connected with a DC, then the coils will become a pure resistance load, the current flowing through the coil will be quite large, which may heat the coils, or even burn the coils. So, the AC contactor can’t be used as a DC contactor.
