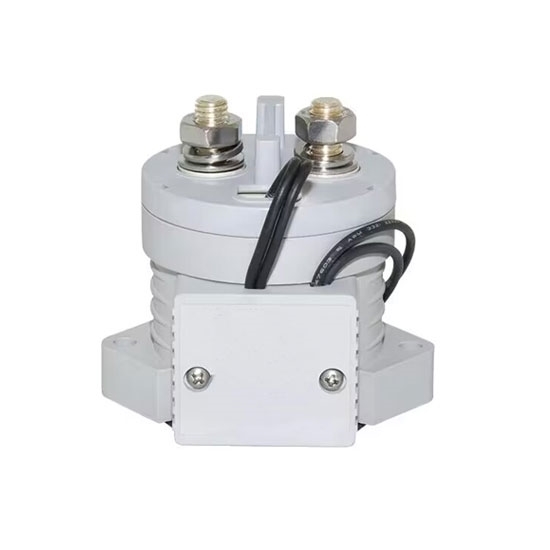

150A High Voltage DC Contactor, 12V/24V Coil

0 reviews • Write a review

from

$154.92

Ex Tax: $154.92

Stock: In Stock
Model: RDDLZ-DCCON-HV150
Weight: 1.00
SKU: RDDLZ-DCCON-HV150

Available Options

Short Description

Coil Rated Voltage

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Features

DC 12-900V rated load voltage of contact circuit.
Normally open type (SPST-NO) of contact form, 12 volt, 24 volt coil for selecting.
Main contact voltage drop at 150A, not above 100mV.
The connection of contact and coil need to be nonpolarity.
Efficient coil, retentive power is only 2-2.3W, counter electromotive force is 0V.
The joint way of the coil is very convenient.
The coil has no counter force of electromagnetism.
Compare to the similar products, this product is smallest and lightest.

Specifications

Basics	Model	RDDLZ-ADH150
	Dimension	80 x 65 x 67 mm
	Weight	440 g
Main Contact Parameters	Contact Form	1 NO
	Leading-Out	M6 Internal thread
	Rated Load Current	150 A
	Rated Load Voltage	12 – 900V DC
	Maximum Switching Current	1500A 320V DC (≥1 times)
	Maximum Switching Power	480 kW
Coil Parameters	Standard Type Voltage	12/24V DC
	Work Voltage	8~36V
	Max Voltage	36 V
	Coil Resistance	3.1Ω
	Average Holding Current	0.14 A
	Steady State Power	1.7~2 W
	Actuation Time	≤30 ms
	Release Time	≤10 ms
	Bounce Time	≤5 ms
Mechanical Specification	Stability	196 m/s²(20G)
	Strength	490 m/s²(50G)
	Vibration	80 ~2000Hz 98m/s²(20G)
	IP Grade	IP67
Environment	Operating Temperature	-40℃~85℃
Environment	Operating Humidity	5~95% RH

Installation Diagram (Unit: mm)
High Voltage DC Contactor Coil Schematic

Details

Tips: Magnetic blowing device working principle of a DC concactor

When the contactor’s movable and static contacts disconnect, arc will generate between the contacts, the arc still maintains the load current within a short period of time. At this moment, two magnetic fields will generate before the arc extinguishes. One magnetic field is formed by the current around the arc, of which the direction can be determined by the Ampere's rule. Moreover, there’s still another magnetic field around the arc, which is produced between two magnetic splints by the current when it flows the blowout coils. This magnetic field passes the iron core and goes through one magnetic splint, it enters another magnetic splint through the gap and forms a closed magnetic circuit.
Obviously, above the arc, the magnetic field between two magnetic splints has an opposite direction with that of the magnetic field around the arc, the magnetic field intensity is also weaker. Below the arc, the two the magnetic fields have same direction and the field intensity strengthens. Therefore, the arc will be pulled from the strong side of the magnetic field to the weak side, it moves upwards. In this process, the arc will be quickly elongated and form a relative motion with the air, thus reducing the arc temperature. Meanwhile, when the arc is blown to the upper part of arc chute, the heat of the arc will be transferred to the arc chute, thus further reducing the arc temperature, promoting the rapid extinction of the arc.
