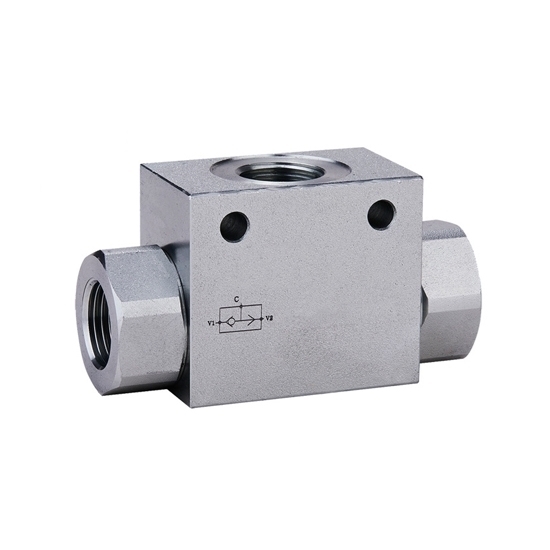

G3/8" Hydraulic Shuttle Valve, 3 Way

0 reviews • Write a review

from

$70.69

Ex Tax: $70.69

Stock: In Stock
Model: RDDLZ-HSV-VUSF38
Weight: 1.00
SKU: RDDLZ-HSV-VUSF38

Available Options

Short Description

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Note: This shuttle valve cannot be used for drinking water.

The basic design of a hydraulic shuttle valve consists of a housing with thread ports and a movable shuttle or spool inside the housing. The shuttle has seals that prevent fluid from leaking between ports.

Specification

Model: RDDLZ-VUSF-G3/8
Shuttle Valve Type: 3 Way
Body Material (Optional): Carbon Steel
Connection Thread Port: G3/8 inch (DN10)
Max. Pressure: 350bar
Max. Flow: 45L/min
Operating Temperature Range: +40℃~+70℃
Ambient Temperature: -20℃~+60℃

Dimension (Unit: mm)

Model	DN	L	L1	C	D	E	F	G	I	J	SW
RDDLZ-VUSF-G3/8	10	59	45	30	45	30	8	G3/8"	29	6.5	27

Tips: What are some troubleshooting tips for hydraulic shuttle valves?

When troubleshooting hydraulic shuttle valves, start by checking for leaks around the valve body and connections. Inspect the valve for any visible damage, such as cracks or dents, and ensure it is free from contamination. Verify that the inlet and outlet ports are properly connected and that there are no blockages obstructing the flow of hydraulic fluid. Check the system pressure and flow rates to ensure they are within the valve's operating range. If the valve is not switching properly, ensure that it is receiving the correct signals or pressures to actuate. If necessary, disassemble the valve for further inspection, cleaning, and lubrication of internal components.
