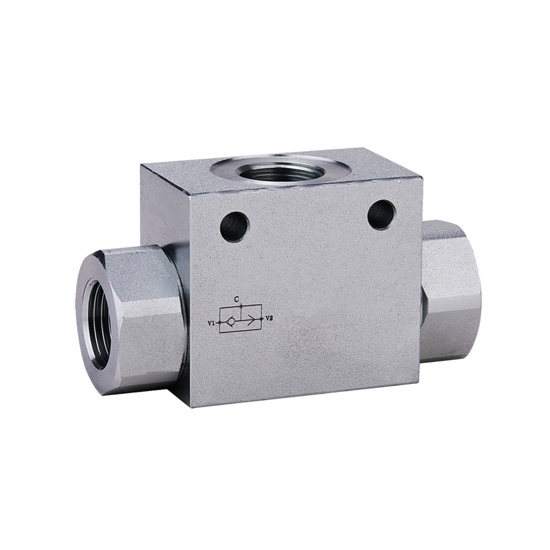

G1" Hydraulic Shuttle Valve, 3 Way

0 reviews • Write a review

from

$158.19

Ex Tax: $158.19

Stock: In Stock
Model: RDDLZ-HSV-VUSF1
Weight: 1.00
SKU: RDDLZ-HSV-VUSF1

Available Options

Short Description

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Note: This shuttle valve cannot be used for drinking water.

The basic design of a hydraulic shuttle valve consists of a housing with thread ports and a movable shuttle or spool inside the housing. The shuttle has seals that prevent fluid from leaking between ports.

Specification

Model: RDDLZ-VUSF-G1
Shuttle Valve Type: 3 Way
Body Material (Optional): Carbon Steel
Connection Thread Port: G1 inch (DN25)
Max. Pressure: 350bar
Max. Flow: 150L/min
Operating Temperature Range: +40℃~+70℃
Ambient Temperature: -20℃~+60℃

Dimension (Unit: mm)

Model	DN	L	L1	C	D	E	F	G	I	J	SW
RDDLZ-VUSF-G1	25	120	80	50	80	54.5	11	G1"	60	10.5	46

Tips: How do you install and maintain hydraulic shuttle valves?

To install a hydraulic shuttle valve, follow these steps:

Identify the appropriate location in the hydraulic system for the valve.
Ensure that the valve is compatible with the system's flow rate, pressure, and fluid type.
Properly align the inlet and outlet ports of the valve with the hydraulic lines.
Securely fasten the valve in place using appropriate fittings or mounting hardware.
Verify that all connections are tight and leak-free.

For maintenance, regularly inspect the valve for signs of leaks, damage, or contamination. Clean the valve and surrounding area to prevent debris from entering the system. Lubricate moving parts as recommended by the manufacturer. If any issues arise, troubleshoot and address them promptly to prevent further damage to the hydraulic system. Follow manufacturer guidelines and recommended maintenance schedules for optimal performance and longevity of the hydraulic shuttle valve.
