Digital Stepper Driver 2-6A For Nema 23, 34, 42 Stepper Motor

0 reviews • Write a review

from

$163.08

Ex Tax: $163.08

Stock: In Stock
Model: RDDLZ-STEP-D26A2334
Weight: 1.00
SKU: RDDLZ-STEP-D26A2334

Available Options

Short Description

Input Pulse Voltage

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

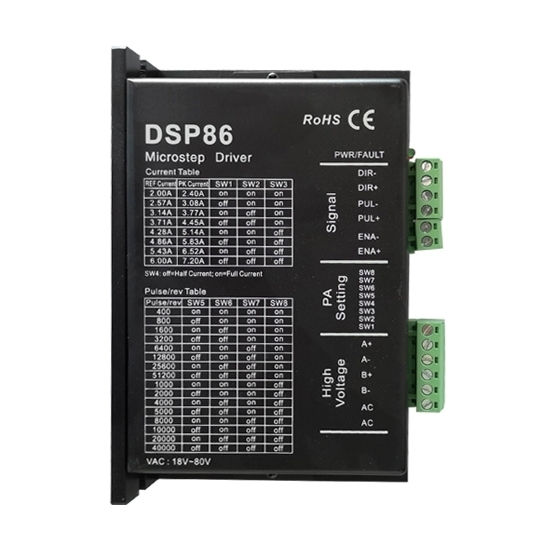

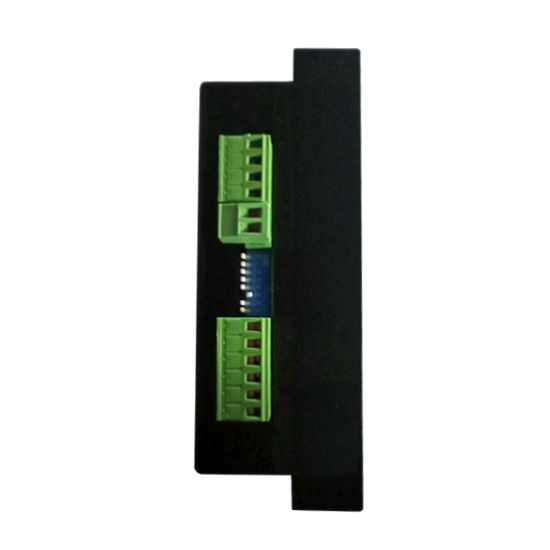

2-phase digital stepper driver, 18-80V AC, 2-6A for Nema 23, 34, 42 2 phase stepper motor, manufacturer direct sale.

Features:

Low motor vibration, low noise, no loss of step
Optical isolation, difference signal input.
Automatic motor parameter identification.
Vector control, ultra-low heating.
Offer 12-24v control signal interface.
Step and direction control.
Fast response, no delay and zero setting time.
Much lower cost than traditional servo systems.
No torque reservation.

Specifications

Basics Information
Model	RDDLZDSP86
Size	151 x 97 x 48 mm
Phase	2
Material	Stainless Steel
Mounting Hole Distance	143 mm
Max Input Power	300 W
Input Voltage Range	18-80V AC
Output Current	2-6 A
Control Mode	Step & Direction
Function Description
Functions	Operation Instructions
Signal Interface	PUL	PUL+ is the positive end of the control pulse signal PUL- is the negative end of the control pulse signal
	DIR	DIR+ is the positive end of directional signal DIR- is the negative end of directional signal
	ENA	ENA+ is the positive end of enabling signal ENA+ is the negative end of enabling signal
Motor Interface	A	A+ is connected with the positive end of the A phase winding of the stepping motor A- is connected with the negative end of the A phase winding of the stepping motor
	B	B+ is connected with the positive end of the B phase winding of the stepping motor B- is connected with the negative end of the B phase winding of the stepping motor
	When the A and B two phase windings are switched, the motor direction is reversed
Indicator Light	1. The green light is the power indicating lamp. When the drive is powered on, the green light is always on. 2. The red light is the fault indicating lamp. When the overvoltage and overcurrent faults occur, the trouble lamp is always on.
Note: The default input signal is 5V pulse signal. When 24V input signal is required, please in series with1.8-2kΩ resistance.

Switch of Options

Peak Output Current	REF Output Current	SW1	SW2	SW3
2.00A	2.40A	ON	ON	ON
2.57A	3.08A	OFF	ON	ON
3.14A	3.77A	ON	OFF	ON
3.71A	4.45A	OFF	OFF	ON
4.28A	5.14A	ON	ON	OFF
4.86A	5.83A	OFF	ON	OFF
5.43A	6.52A	ON	OFF	OFF
6.00A	7.20A	OFF	OFF	OFF

Micro Step Selection

PUL/REV	SW5	SW6	SW7	SW8
400	ON	ON	ON	ON
800	OFF	ON	ON	ON
1600	ON	OFF	ON	ON
3200	OFF	OFF	ON	ON
6400	ON	ON	OFF	ON
12800	OFF	ON	OFF	ON
25600	ON	OFF	OFF	ON
51200	OFF	OFF	OFF	ON
1000	ON	ON	ON	OFF
2000	OFF	ON	ON	OFF
4000	ON	OFF	ON	OFF
5000	OFF	OFF	ON	OFF
8000	ON	ON	OFF	OFF
10000	OFF	ON	OFF	OFF
20000	ON	OFF	OFF	OFF
40000	OFF	OFF	OFF	OFF

Driver Wiring Diagram

Installation Size (Unit: mm)

Details

Tips: Single-shaft stepper motor driver
The stepper motor driver drives the stepper motor using the point pulse signal received from the controller. It is in the middle of the controlling unit: Controller - motor driver - stepper motor. Stepper motor drivers are divided into single-shaft driver and double-shaft driver. We usually use a single-shaft driver. One single-shaft stepper motor driver transfers processed pulse signals to another stepper motor while one double-shaft stepper motor driver transfers processed pulse signals to another two stepper motors. That is, a double-shaft driver driving two stepper motors is rare on the current market.
