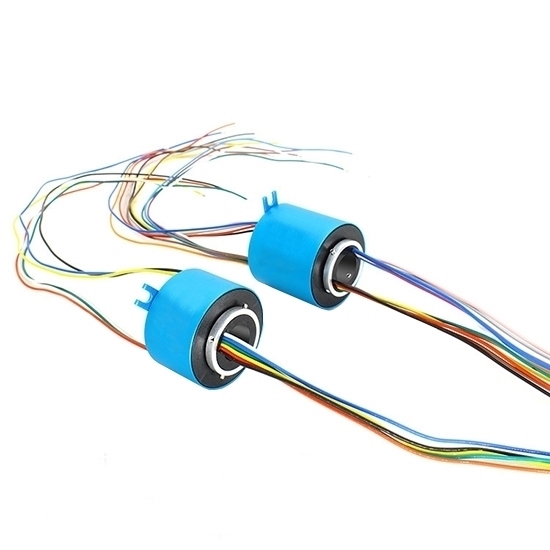

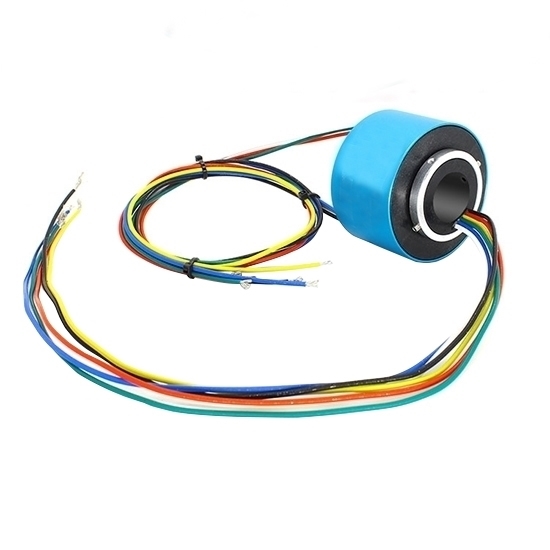

High Speed Electrical Slip Ring, Through Hole, 1500rpm

0 reviews • Write a review

from

$254.21

Ex Tax: $254.21

Stock: In Stock
Model: RDDLZ-THSR-2056
Weight: 1.00
SKU: RDDLZ-THSR-2056

Available Options

Short Description

Number of 10A Circuits

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Features

Rotating speed is up to 1500 rpm. Customizable speed, hole diameter, circuits wires number, current and other specifications.
High performance permanent lubricated bearings, high wear resistance and lifetime maintenance free.
Key materials are made of world advanced technology, high-quality gold-plated rings, ensure reliable transmission of power and signals.
Low torque, low loss, high stability, long service life.

Specification

Model	RDDLZ-G2056
Inner Diameter	20mm
Outer Diameter	56mm
Rotating Speed	1500rpm
Working Temp.	-30℃~80℃
Working Humidity	0~85% RH
Contact Material	refer to slip ring grade table
Housing Material	aluminum alloy
Torque	0.05N.m (+0.02N.m/6 circuits)
Rated Voltage	0~440VAC/VDC
Insulation Resistance	≥1000mΩ/500VDC
Lead Wire Spec.	AWG17#UL Teflon
Lead Wire Length	standard 300mm (can be customized)
Certification	CE, RoHS
Dielectric Strength	800VAC@50Hz,60s
Electrical Noise	<0.01Ω
IP Grade	IP51

High Speed Electrical Slip Ring Dimension Drawing

Note: The length L please refer to standard model list.

Standard Model List

Model	Number of Circuits (10A)	Length L (mm)
RDDLZ-G2056-06	6 circuits	34
RDDLZ-G2056-12	12 circuits	52

High Speed Through Hole Slip Ring with Anti-Rotation Tab Installation Diagram

High Speed Through Hole Slip Ring without Anti-Rotation Tab Installation Diagram

Tips: What are the advantages of electrical slip rings?

In the industrial age, any manufacturer hopes to improve product quality and reduce production costs through system equipment. Production equipment must require a various of parts guarantee during operation. Electrical slip ring transmission is one of them. So what are the advantages of slip rings?

First, electrical slip ring is very resistant to interference, especially noise interference. When a machine is running, its signal transmission is likely to be disturbed by noise, which reduces speed or accuracy of signal transmission and affects normal use of the machine. However, if install electrical slip ring connectors to the machine, this problem does not occur because it is very resistant to noise. No matter how much noise the machine makes during operation, it will have no effect on signal transmission of slip rings.

Second, electrical slip ring connector has a long service life. If a device internal functions are always faulty or damaged during production process, it will affect operation of the entire machine system, then affect production of the entire plant. With technology advancement, slip ring now has a very good guarantee of wear resistance and service life while enhancing transmission signal function. Therefore, adding an electrical slip ring connector to production system does allow for better protection of different motors during operation.
