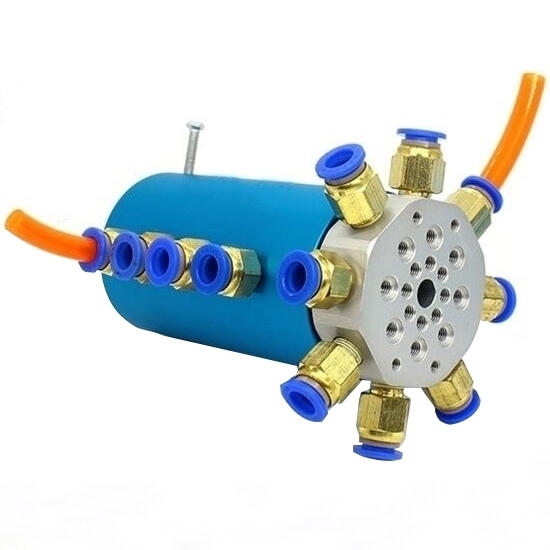

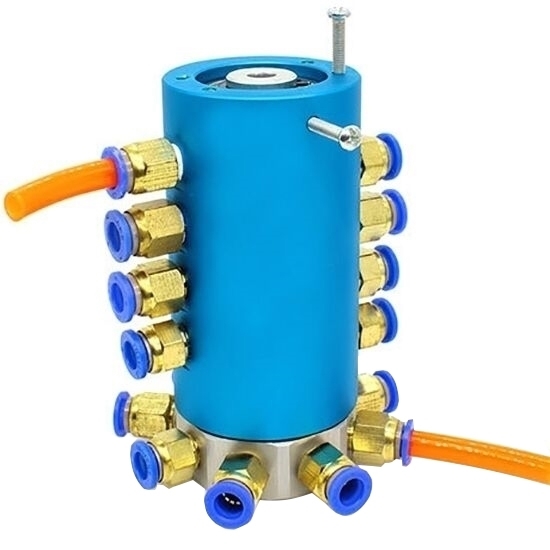

8-Passage Rotary Union, Pneumatic/Electrical Slip Ring For Air/Hydraulic

0 reviews • Write a review

from

$498.31

Ex Tax: $498.31

Stock: In Stock
Model: RDDLZ-RTJT-300812
Weight: 1.00
SKU: RDDLZ-RTJT-300812

Available Options

Short Description

Number of Signal Wires

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Rotary union slip ring can rotate 360° to conduct electricity. Specifications such as circuits and current, port and pipe size can be customized as required.

Application: Automation equipment, industrial turntables, solenoid valve magnetic sensors, robots, engineering machinery, automated production lines, CCTV video surveillance, medical equipment, military radar and other equipment.

8 Passage Rotary Union Specification

Model	RDDLZ-3008006
Number of Passages	8 Passages
Thread Port	G1/8"
Pipe size	6~8mm
Torque	<0.8N.m
Voltage Range	Power: 0~440VAC/VDC Signal: 0~440VAC/VDC
Lead Wire Spec.	Power:AWG17# Silverplated teflon wire Signal: AWG22# Silverplated teflon wire
Max. Speed	250rpm continously, 1000rpm intermittently
Working Temp.	-30℃~80℃
Work Humidity	0~85% RH
Contact Material	precious metal
Housing Material	aluminum alloy
Working Life	20 millions for ref (depends on working conditions)
Max. Pressure	1Mpa, Vacuum -1.5kPa
Insulation Resistance	Power: <500MΩ/300VDC Signal: <500MΩ/300VDC
Lead Wire Length	standard 250mm (can be customized)
Certification	CE, RoHS
Insulation Resistance	500VAC@50Hz,6s
Electrical Noise	<0.01Ω
IP Grade	IP51
Weight	About 1 kg

Note: Please contact us if you need the flange. The package includes the controller.

8-Passage Electrical/Pneumatic Rotary Union Dimension Drawing

8-Passage Rotary Union Standard Model List

Gas/flow+6~56-Wire 2A signal transfer

Model	Passages (Gas/Flow)	Port Size	Pipe Size	Signal Circuits (2A)	Length L (mm)
RDDLZ-3008006-06S	8	G1/8"	6~8mm	6	14
RDDLZ-3008006-12S	8	G1/8"	6~8mm	12	21
RDDLZ-3008006-24S	8	G1/8"	6~8mm	24	35
RDDLZ-3008006-36S	8	G1/8"	6~8mm	36	52.3
RDDLZ-3008006-56S	8	G1/8"	6~8mm	56	82

gas/flow+6~36-Wire 5A signal/10A power transfer

Model	Passages (Gas/Flow)	Port Size	Pipe Size	Circuits		Length L (mm)
Model	Passages (Gas/Flow)	Port Size	Pipe Size	Power (10A)	Signal (5A)	Length L (mm)
RDDLZ-3008006-0605	8	G1/8"	6~8mm	0	6	38
RDDLZ-3008006-0610	8	G1/8"	6~8mm	6	0	38
RDDLZ-3008006-1205	8	G1/8"	6~8mm	0	12	55
RDDLZ-3008006-0610-0605	8	G1/8"	6~8mm	6	6	55
RDDLZ-3008006-1210	8	G1/8"	6~8mm	12	0	55
RDDLZ-3008006-0610-1205	8	G1/8"	6~8mm	6	12	71.5
RDDLZ-3008006-1210-0605	8	G1/8"	6~8mm	12	6	71.5
RDDLZ-3008006-1805	8	G1/8"	6~8mm	0	18	71.5
RDDLZ-3008006-1810	8	G1/8"	6~8mm	18	0	71.5
RDDLZ-3008006-0610-1805	8	G1/8"	6~8mm	6	18	88.5
RDDLZ-3008006-2405	8	G1/8"	6~8mm	0	24	88.5
RDDLZ-3008006-3005	8	G1/8"	6~8mm	0	30	106
RDDLZ-3008006-3605	8	G1/8"	6~8mm	0	36	125

Note: All above models for customization, please contact us.

Rotary Union Installation Diagram

Tips: Rotary union leakage causes and treatment methods

Cause of Leakage	Treatment Method
The concentricity of the hollow shaft with the rotating body is not enough.	Check size and accuracy of the slip ring and adjust the fixed connection to the rotating body.
The accuracy of the fitting machine is low (large end face coincidence, radial, axial clearance), large vibration.	Find the reason and repair the fitting equipment.
Foreign matter such as slurry and dirt enter the friction pair contact surface.	Add a filter or decontamination device and modify the type of rotary union.
The pressure, temperature, speed, etc. used exceed the rated range of the selected rotary union.	Analyze the operating conditions, contact rotary union manufacturers, and change the type of rotary union.
