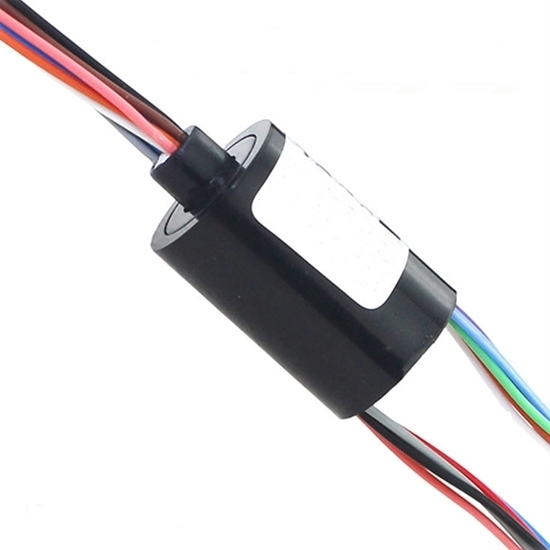

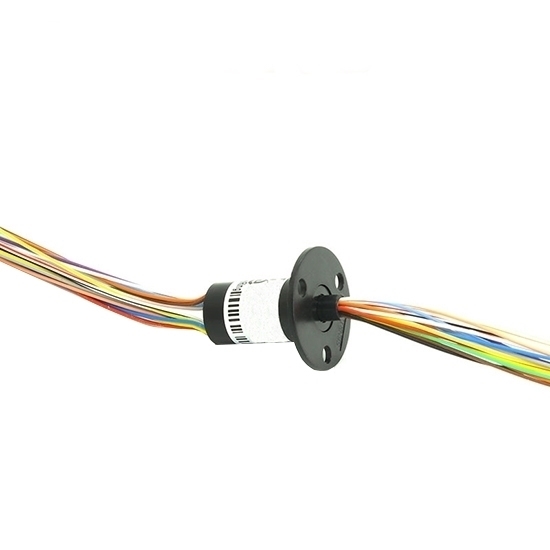

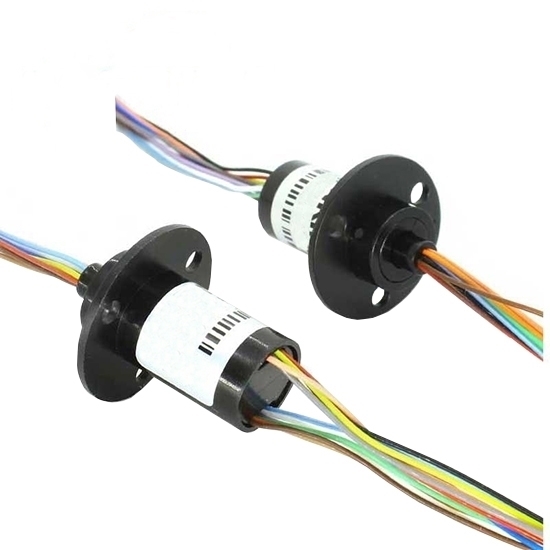

12.5mm Miniature Slip Ring, 2/4 Wires 5A, 6/12/18 Wires 2A

0 reviews • Write a review

from

$72.92

Ex Tax: $72.92

Stock: In Stock
Model: RDDLZ-MNTSR-125
Weight: 1.00
SKU: RDDLZ-MNTSR-125

Available Options

Number of wires and current

Flange

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Application: High-speed dome, children intelligent toys, stage lights, drones, robots, stabilizer, smart home appliance…

Features

Compact design, other outer diameters of 6.5mm~30mm can be customized.
Adopt advanced processing technology for key materials, military level gold-gold contacts points ensure ultra-low contact resistance and long working life.
Low torque, low loss, low electrical noise, maintenance free.

Specification

Model	RDDLZ-MNTSR-M125
Outer Diameter	12.5mm
Rotating Speed	250 rpm
Working Temp.	-30℃~80℃
Working Humidity	0~85% RH
Contact Material	gold-gold
Housing Material	plastic
Torque	0.05N.m (+0.01N.m/6 circuits)
Working Life	10 millions for ref (depends on working conditions)
Rated Voltage	0~240VAC/VDC
Lnsulation Resistance	≥300MΩ/300VDC
Lead Wire Spec.	refer to model list
Lead Wire Length	standard 150mm (can be customized)
Certification	CE, RoHS
Dielectric Strength	300VAC@50Hz,60s
Electrical Noise	<0.01Ω
IP Grade	IP51

Dimension Drawing of 12.5mm Miniature Slip Ring (Type A Flange)

Dimension Drawing of 12.5mm Miniature Slip Ring (Type C Flange)

Dimension Drawing of 12.5mm Miniature Slip Ring (No Flange)

Standard Model List

Model	Number of Circuits Wires	Max current/wire	Lead spec.	Length L (mm)
RDDLZ-MNTSR-M125-06	6	1.5A	AWG30#teflon,silver plated	13.5
RDDLZ-MNTSR-M125-12	12	1.5A	AWG30#teflon,silver plated	18.2
RDDLZ-MNTSR-M125-18	18	1.5A	AWG30#teflon,silver plated	23.5
RDDLZ-MNTSR-M125-0205	2	5A	AWG22#teflon,silver plated	13.5
RDDLZ-MNTSR-M125-0305	3	5A	AWG22#teflon,silver plated	18.2
RDDLZ-MNTSR-M125-0405	4	5A	AWG22#teflon,silver plated	18.2

Color Code of Lead Wire

ring #	1	2	3	4	5	6	7	8	9	10	11	12
color	BLK	BRN	RED	ORG	YEL	GRN	BLU	PUR	GRY	WHT	PINK	LGT BLU
ring #	13	14	15	16	17	18	19	20	21	22	23	24
color	WHT/BLK	WHT/BRN	WHT/RED	WHT/ORG	WHT/YEL	WHT/GRN	WHT/BLU	WHT/PUR	WHT/GRY	BLK/RED	BLK/BRN	Transparent

Tips: Miniature Slip Ring Installation

Place the cap of the miniature slip ring on the bushing of the instrument to be installed.
Fix the miniature slip ring rotor part. The miniature slip ring has very low torque, so the rotor does not need to be fixed. Just wire the wires.
Fix the miniature slip ring stator part. Tighten the screws on the flange of the slip ring so that the cap of the slip ring is attached to the device and remains fixed at all times.
