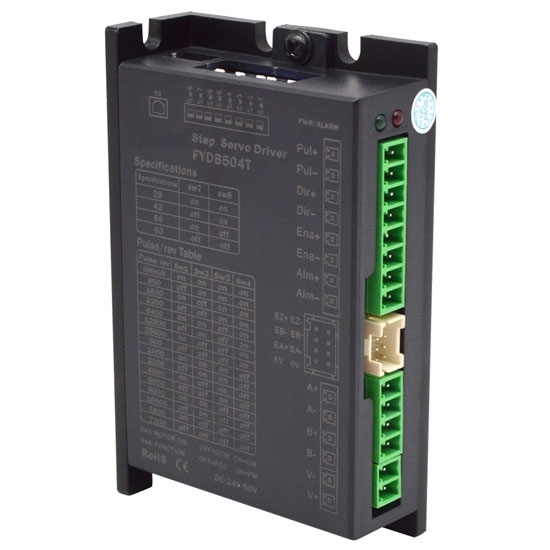

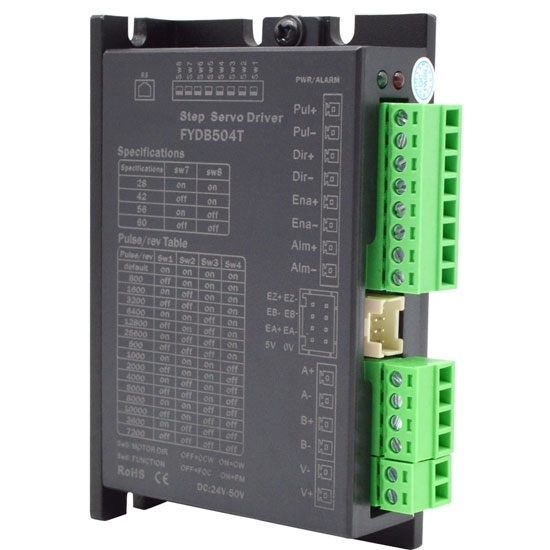

Closed Loop Stepper Motor Driver, 2 Phase, 0.1A ~ 4A

Closed Loop Stepper Motor Driver, 2 Phase, 0.1A ~ 4A
Closed Loop Stepper Motor Driver, 2 Phase, 0.1A ~ 4A
Closed Loop Stepper Motor Driver, 2 Phase, 0.1A ~ 4A
Closed Loop Stepper Motor Driver, 2 Phase, 0.1A ~ 4A
Closed Loop Stepper Motor Driver, 2 Phase, 0.1A ~ 4A
from
$97.59
Ex Tax: $97.59
  • Stock: In Stock
  • Model: RDDLZ-STEP-B504T
  • Weight: 1.00
  • SKU: RDDLZ-STEP-B504T

Available Options

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.
Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Stepper motor driver is an actuator which used for driving Nema 17 closed loop stepper motor to work. It drives hybrid 2 phase stepper motor to rotate at a step angle in the set direction when receiving a pulse signal.

Features

  • High performance and high efficiency. The digital stepper motor driver adopts 32-bit DSP control technology to make the hybrid bipolar stepper motor achieve the best output performance.
  • Low vibration and low noise. The method of combining digital and analog and advanced closed loop control system of power angle.
  • Small temperature rise and long life. The current is adjusted intelligently according to the load.
  • Interference frequency filtering. Photoelectric isolation differential signal input, impulse response frequency up to 250Kpps.
  • Strong function and low repair rate. Under-voltage, over-voltage, over-current, short circuit, open circuit, tracking error out of tolerance and other fault diagnosis transition indication and automatic protection function.

Specification

ModelRDDLZ-FYDB504T
Matched MotorNema 17 2 Phase Closed Loop Stepper Motor
VoltageDC 24V ~ 50V
Drive Current0.1A ~ 4.0A Auto-Adjust
Microstepping Setting25600 steps/rev 16 Channels
Hightest Pulse Frequency250Kpps
CertificationCE, FCC, RoHS
Dimensions96 x 60.5 x 26.5mm
Weight0.5kg
Function Description
FunctionsOperation Instructions
PWRPower Indicating LampWhen the driver is powered on, the green light is always on.
ALARMOvercurrent/Undervoltage IndicatorWhen the overvoltage and overcurrent faults occur, the red light is always on.
PUL+Positive End of Control Pulse SignalConnect to signal power,+5V to +24V can be driven.
PUL-Negative End of Control Pulse SignalThe falling edge is valid, and the motor takes one step whenever the pulse changes from high to low. Input resistance 220Ω. Requirements: low level 0 to 0.5V, high level 4 to 5V, Pulse charge >2.5us.
DIR+Positive End of Directional SignalConnect to signal power,+5V to +24V can be driven.
DIR-Negative End of Directional SignalUsed to change the direction of the motor. Input resistance 220Ω. Requirements: low level 0 to 0.5V, high level 4 to 5V, Pulse charge >2.5us.
ENA+Positive End of Enabling SignalConnect to signal power,+5V to +24V can be driven.
ENA-Negative End of Enabling SignalWhen it is valid (low level), the motor coil current is turned off, the driver stops working, and the motor is in a free state.
ALM+Positive End of Alarm Signal OutputWhen over-current, over-voltage, under-voltage or over-tolerance alarms, the alarm signal is valid (the output photocoupler is turned on). ALM+ is connected to the pull-up power to use the positive pole of the output power supply, and ALM- is connected to the negative pole of the output power supply. Maximum drive current 50mA.
ALM-Negative End of Alarm Signal Output
EZ+/EZ-Positive/Negative End of Encoder Z Phase InputPositive input/negative input of Connecting to encoder Z channel
EB+/EB-Positive/Negative End of Encoder B Phase InputPositive input/negative input of Connecting to encoder B channel
EA+/EA-Positive/Negative End of Encoder A Phase InputPositive input/negative input of Connecting to encoder A channel
VCCEncoder Power Supply5V encoder power supply
GNDGround of Encoder Power SupplyGround of Encoder Power Supply
A+A-Motor WiringFour lead wires
B+B-

Microstep Segmentation Setting

Pulse/RevoSW1SW2SW3SW4
Defaultonononon
800offononon
1600onoffonon
3200offoffonon
6400ononoffon
128000offonoffon
25600onoffoffon
500offoffoffon
1000onononoff
2000offononoff
4000onoffonoff
5000offoffonoff
8000ononoffoff
10000offonoffoff
3600onoffoffoff
7200offoffoffoff

Dimensions (Unit: mm)

Wiring Diagram

Details

Tips: The stepper motor must match the corresponding stepper driver to work

The stepper motor cannot be installed separately in the corresponding equipment, it must be matched with the corresponding stepper driver. The stepper motor needs to cooperate with the driver to receive the digital signal of the CPU, PLC and other controllers.

Stepper motor driver is an actuator that converts electrical pulses into angular displacement. The angular displacement can be controlled by controlling the number of pulses, so as to achieve the purpose of accurate positioning. At the same time, the speed and acceleration of the motor rotation can be controlled by controlling the pulse frequency, so as to achieve the purpose of speed regulation and positioning. The subdivision technology is essentially an electronic damping technology, and improving the running accuracy of the motor is only an incidental function, and the main purpose is to reduce or eliminate the low-frequency vibration of the motor.

For example, for a two phase hybrid bipolar stepper motor with a step angle of 1.8°, if the subdivision number of the subdivision driver is set to 4, the motor's operating resolution is 0.45° per pulse. However, whether the accuracy of the motor can reach or connect to 0.45° depends on the subdivision current control precision of the subdivision driver and some other factors.

To reduce the working noise of the stepper motor, the subdivision driver is usually chosen, especially when the motor is working at a low speed, the vibration and noise of the motor will be more obvious. It is recommended to use a subdivision driver to alleviate this situation and promote the improvement of the vibration and noise of the motor at low speeds.
