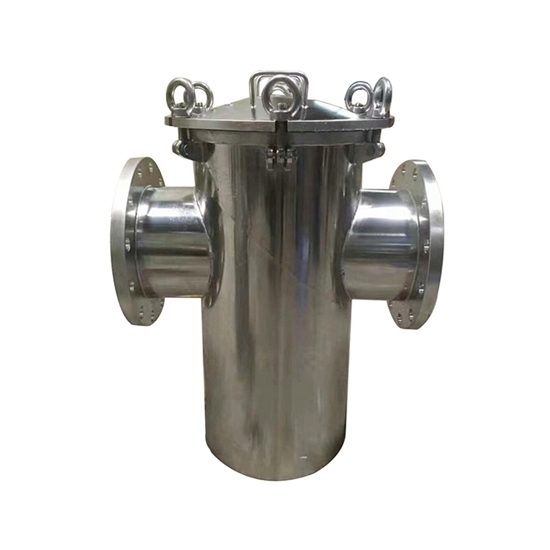

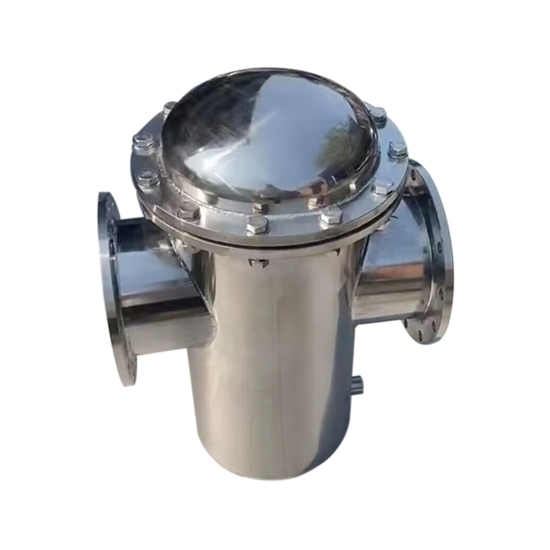

2 1/2 Inch Stainless Steel Basket Strainer

0 reviews • Write a review

from

$568.92

Ex Tax: $568.92

Stock: In Stock
Model: RDDLZ-SSBS-DN65
Weight: 1.00
SKU: RDDLZ-SSBS-DN65

Available Options

Short Description

Installation

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Note: This basket strainer cannot be used for drinking water.

Buy a flanged basket filter online with a nominal diameter 2 1/2 inch, a working temperature is 0°C~330°C, filtration accuracy of 100-400 mesh. The simplex basket strainer is extremely easy to use and maintain.

Specification

Model: RDDLZ-HG65
Type: Basket Type Strainer
Nominal Diameter: 2 1/2 inch (DN65)
Working Pressure: 1.6-10MPa
Product Material: Stainless Steel
Connection Form: Flange
Temperature Range: 0°C~330°C
Filtration accuracy: 100-400 mesh
Medium: Water, oil

Dimension (mm)

DN	D	L	H2	H
65	140mm	330mm	240mm	360mm

Detail

Application

Basket strainers are mainly used in working conditions with a large number of impurities. Basket strainers are mainly used in water, oil, or other liquid pipelines, and have been widely used in petroleum, chemical, pharmaceutical, food, and other industries.

Tips: How to maintain a stainless steel basket strainer?

The core part of the filter is the filter element. The filter element is composed of a filter frame and a stainless steel wire mesh. The stainless steel wire mesh is a vulnerable part and needs special protection.
After the filter works for a period of time, certain impurities are deposited in the filter element. At this time, the pressure drop increases and the flow rate will decrease. It is necessary to remove the impurities in the filter element in time.
