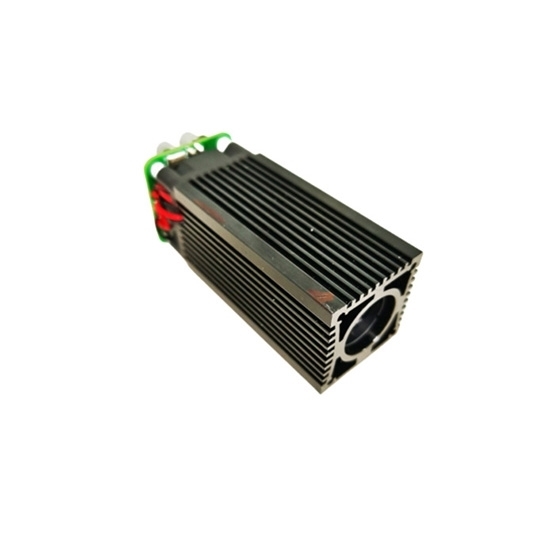

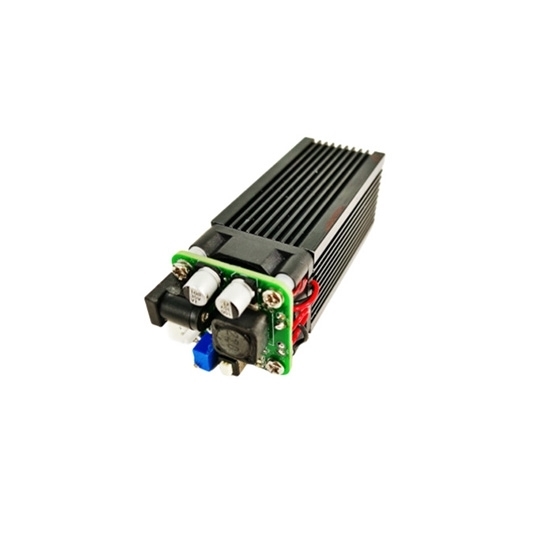

Green Laser Module, Laser Diode, 520nm 300mW

0 reviews • Write a review

from

$96.42

Ex Tax: $96.42

Stock: In Stock
Model: RDDLZ-LM-QS603030LC
Weight: 1.00
SKU: RDDLZ-LM-QS603030LC

Available Options

Short Description

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Green laser diode module has a wavelength of 520nm and an adjustable power output of up to 300mW, providing a vibrant green light beam, widely used in anti-counterfeiting, security, stage lighting, various electric tools, measuring instruments, equipment, leveling instruments, locators, rangefinders, thermometers, laser marking instruments (projectors), electronic measuring tools, mice, USB drives, cameras, mobile phones, projection teaching flip pens, laser pens, handicrafts, indoor and outdoor decoration, flashlights, etc.

Specification

Model	RDDLZ-QS-603030LC
Dimensions	φ903030mm
Laser working life	8000 hours or more
Laser working mode	Adjustable spot light spot, coarse beam
Laser wavelength	515-540nm
Laser power (constant power)	≤300mW (laser power can be set according to customer requirements)
Component Type	Laser diode
Working voltage	DC 9V-12V
Working current	Less than 500mA
Working temperature	0℃～60℃
Storage temperature	-40℃～85℃
Supply voltage	12V~24V
Transmission distance	2000m
Light spot mode (spot size)	18mm
Weight	92g
Modulation frequency	TTL output port 0-5V input 1Hz-100KHz

Product Display

The following product rendering was taken when there was haze in the air.

Applications

Tips：What is green laser module?

A green laser module is a high-performance laser device specifically designed to emit green laser beams. Its core components include laser diodes, optical lenses, and electronic drive circuits, which work together to generate a stable green laser beam. The wavelength of green lasers is usually 520 nanometers (nm), and its bright green light is located in the center of the visible spectrum and is easier for the human eye to recognize than red or blue light, which makes green lasers very popular in many applications.

The module usually has an adjustable power output, ranging from a few milliwatts (mW) to hundreds of milliwatts (mW), which can meet the needs of different applications. At the same time, many green laser modules are equipped with a spot adjustment function, allowing users to adjust the focus and size of the beam as needed. In addition, they are usually able to operate stably in a temperature range of 0℃ to 60℃, ensuring reliable performance under various environmental conditions.
