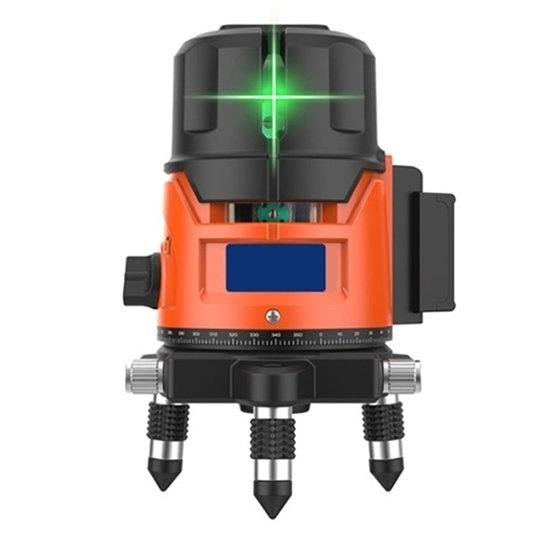

Cheap price self-leveling laser level with 5 green laser lines, 360° rotating base, self-leveling green rotating laser is IP54 rated, which means that it’s protected against dust and water, providing a longer product life.

Specification

Model: RDDLZ-SL-05
No.of Laser Lines: 5 line
Horizontal Accuracy: 5m±1mm
Laser Wavelength: 635nm
Self-Leveling Range: ±3°
Launch Angle: ≥120°
Leveling Type: 4 vertical line, 1 horizontal line, 1 plumb dot, 5 bright dots

Vertical Accuracy: 5m±1mm
Plumb Dot Accuracy: ±1mm at 1.5m
Line Width: 2mm
Line Color: Emerald green
Power Supply: 3 * AA batteries or AC power
IP Rating: IP 54
Operation Temperature: 0℃~40℃
Laser Head: Made in Germany

Operating Temperature: 10℃~50℃
Weight: 2.5kg
Laser Tube Life: 10 years
Outdoor Visible Distance: About 15m
Indoor Visible Distance: About 15m~40m
Application: Ceiling, home decoration, door and window installation, etc.
Function Key: Fingerprint touch buttons
Battery Type: Digital LCD rechargeable lithium battery (8 hours standby)

5 Line Laser Level Diagram

Details

Application

RDDLZ high-intensity laser level is a common measuring tool for measuring angles. The high-precision green light level can be widely used in metallurgical steel plate cutting, stone cutting, wood cutting, machine vision, and other fields.

Tips: Why choose a laser level?

The technology of the laser level is relatively advanced, and the measurement accuracy is relatively high. When using it, a laser point will appear, and then the horizontal line will be taken according to the laser point for measurement. In addition, the laser level is more suitable for outdoor work. For laying pipelines, road grading, etc., it is best to use a laser level, which is relatively simple to operate and can be operated with a remote control to make the measurement data more accurate.
