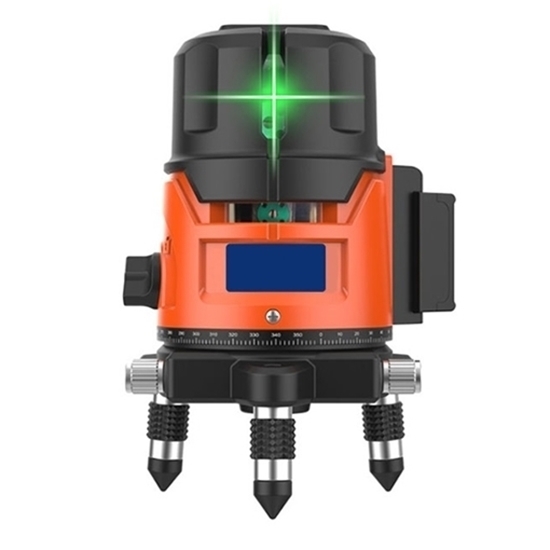

Lower cost green laser level features 1 vertical line, 1 horizontal line 2 lines, launch angle ≥120°. The green laser horizontal line is 4 times that of the red beam, and the indoor working distance can reach 100 feet, and it can also be used outdoors.

Specification

Model: RDDLZ-SL-02
No.of Laser Lines: 2 line
Horizontal Accuracy: 5m±1mm
Laser Wavelength: 635nm
Self-Leveling Range: ±3°
Launch Angle: ≥120°
Leveling Type: 1 vertical line, 1 horizontal line, and 2 bright dots

Vertical Accuracy: 5m±1mm
Plumb Dot Accuracy: ±1mm at 1.5m
Line Width: 2mm
Line Color: Emerald green
Power Supply: 3 * AA batteries or AC power
IP Rating: IP 54
Operation Temperature: 0℃~40℃
Laser Head: Made in Germany

Operating Temperature: 10℃~50℃
Weight: 2.5kg
Laser Tube Life: 10 years
Outdoor Visible Distance: About 15m
Indoor Visible Distance: About 15m~40m
Application: Ceiling, home decoration, door and window installation, etc.
Function Key: Fingerprint touch buttons
Battery Type: Digital LCD rechargeable lithium battery (8 hours standby)

2 Line Laser Level Diagram

Details

Application

RDDLZ high-intensity laser level is a common measuring tool for measuring angles. The high-precision green light level can be widely used in metallurgical steel plate cutting, stone cutting, wood cutting, machine vision, and other fields.

Tips: What do the lines mean at the laser level?

• 2 lines: One horizontal line and one vertical line. It can measure level and plumb line.
• 3 lines: One horizontal line and two vertical lines. It can measure horizontal and plumb lines, right angles in one direction of the ground or zenith, and vertical points in space.
• 5 lines: One horizontal line and four vertical lines. It can measure horizontal and plumb lines, right angles in four directions on the ground or zenith, and vertical points in space.
• 8 lines: One horizontal line, four vertical lines. It can measure horizontal and plumb lines, right angles in four directions on the ground or zenith, and vertical points in space.
