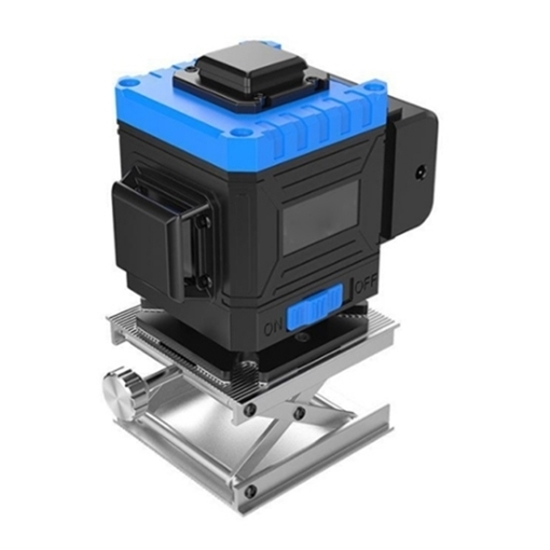

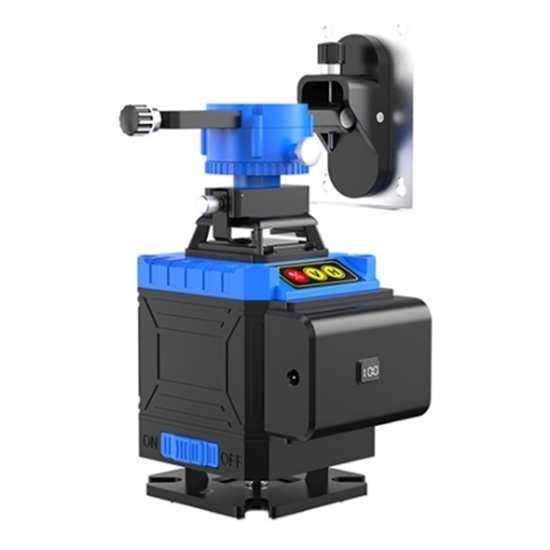

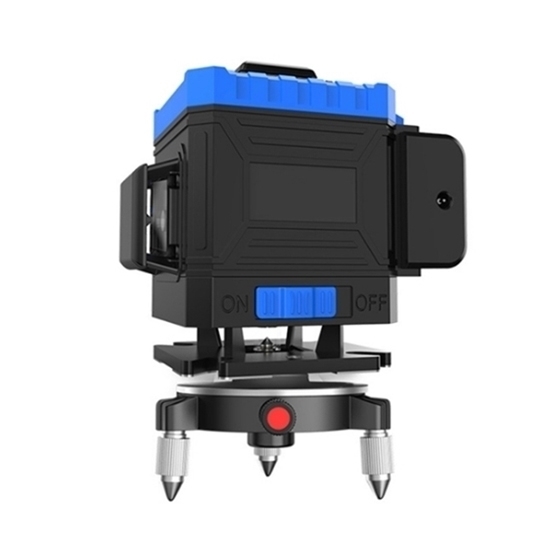

Rotary Green Laser Level, 12 Line, 360 Degree

0 reviews • Write a review

from

$312.74

Ex Tax: $312.74

Stock: In Stock
Model: RDDLZ-LL-16
Weight: 1.00
SKU: RDDLZ-LL-16

Available Options

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

High-performance self-leveling laser level with 4 vertical line and 8 horizontal line, 360° rotation, with 5800 mhA rechargeable lithium battery for 72 hours standby, remote control, more convenient and quick.

Specification

Model	RDDLZ-SL-12
No.of Laser Lines	12
Leveling Type	4 vertical line, 8 horizontal line, 6 crossing line
Laser Wavelength	635nm
Self-Leveling Range	±3°
Launch Angle	≥120°
Horizontal Accuracy	5m±1mm
Vertical Accuracy	5m±1mm
Plumb Dot Accuracy	±1mm at 1.5m
Line Width	2mm
Line Color	Emerald green
Power Supply	2 x 5800mA rechargeable lithium battery (72 hours standby)
IP Rating	IP 54
Operation Temperature	-10℃~50℃
Battery Type	Digital LCD rechargeable lithium battery (8 hours standby)
Function Key	Fingerprint touch buttons
Wall Distance	7mm
Ground Distance	6mm
Laser Head	Made in Germany
Working Time	12 hours
Outdoor Visible Distance	About 15m
Remote Control	Yes
Slash Mode	Yes
Weight	3kg

Packing List

1 x 8 Line Green Laser Level
2 x 5800mA Lithium Battery
1 x Power Adapter
1 x Magnetic Bracket
1 x Adjustable Lifting Platform
1 x Magnetic Pivoting Base
1 x Hand-shell Carrying Case
1 x Remote Control
1 x Conversion Screw
1 x User Manual

12 Line Laser Level Diagram

Details

Application

RDDLZ high-intensity laser level is a common measuring tool for measuring angles. The high-precision green light level can be widely used in metallurgical steel plate cutting, stone cutting, wood cutting, machine vision, and other fields.

Tips: Is a green laser level better than red?

A green laser light is 10 to 50 times brighter than a red light laser. Green lasers are much more efficient and visible in areas of broad daylight and direct sunlight. They are also able to travel longer distances, which is why they are so popular on construction sites.
