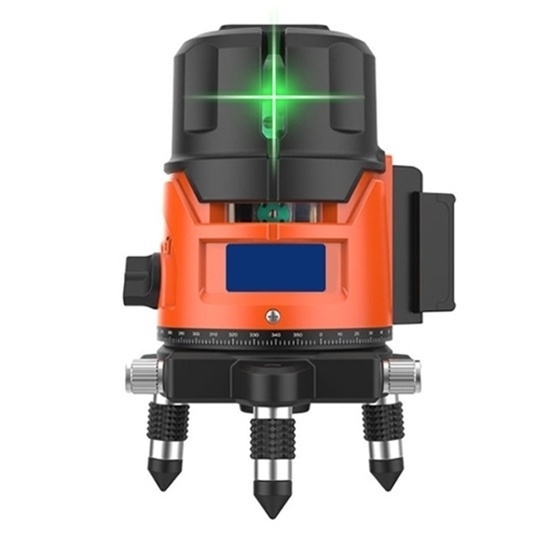

Rotary green laser level with 3 lines, 5m±1mm horizontal/vertical accuracy. The rotary green laser level with IP54 waterproof/dustproof to ensure that you can work normally and stably under complex working conditions.

Specification

Model: RDDLZ-SL-03
No.of Laser Lines: 3 line
Horizontal Accuracy: 5m±1mm
Laser Wavelength: 635nm
Self-Leveling Range: ±3°
Launch Angle: ≥120°
Leveling Type: 2 vertical line, 1 horizontal line, 1 plumb dot, 3 bright dots

Vertical Accuracy: 5m±1mm
Plumb Dot Accuracy: ±1mm at 1.5m
Line Width: 2mm
Line Color: Emerald green
Power Supply: 3 * AA batteries or AC power
IP Rating: IP 54
Operation Temperature: 0℃~40℃
Laser Head: Made in Germany

Operating Temperature: 10℃~50℃
Weight: 2.5kg
Laser Tube Life: 10 years
Outdoor Visible Distance: About 15m
Indoor Visible Distance: About 15m~40m
Application: Ceiling, home decoration, door and window installation, etc.
Function Key: Fingerprint touch buttons
Battery Type: Digital LCD rechargeable lithium battery (8 hours standby)

3 Line Laser Level Diagram

Details

Application

RDDLZ high-intensity laser level is a common measuring tool for measuring angles. The high-precision green light level can be widely used in metallurgical steel plate cutting, stone cutting, wood cutting, machine vision, and other fields.

Tips: What is a laser level?

The laser level is a level that guides the laser beam emitted by the laser device into the telescope barrel of the level so that it is emitted along the collimation axis. There are two types of laser level: a special laser level and a laser device attached to the level. It can be used for leveling measurement by cooperating with a leveling rod equipped with a photoelectric receiving target. Compared with the optical level, the laser level has the characteristics of high precision, long line of sight and automatic reading and recording.
