1 KVA Single Phase Automatic Voltage Stabilizer For Home

0 reviews • Write a review

from

$203.69

Ex Tax: $203.69

Stock: In Stock
Model: RDDLZ-AVS-1P1K
Weight: 1.00
SKU: RDDLZ-AVS-1P1K

Available Options

Short Description

Output Voltage (AC)

Extended Warranty

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

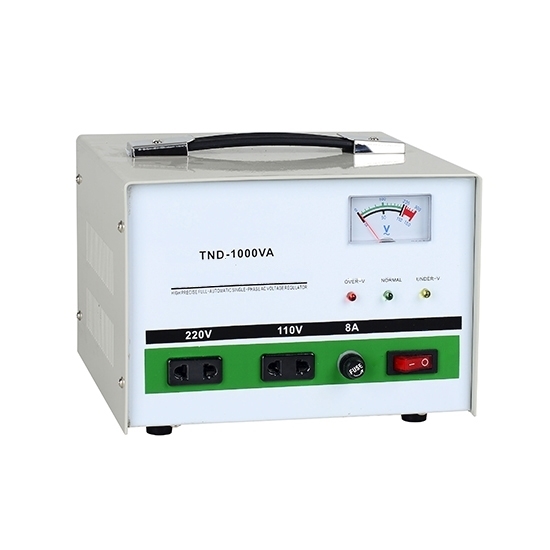

Single Phase 1000 VA Automatic Voltage Stabilizer for Home is automatic in operation and produces a stabilized power supply when it detects a fluctuation. This best automatic voltage stabilizer is used for domestic purposes such as refrigerators, deep freezers, bottle and water coolers, BOD incubators air conditioning appliances etc..

Specifications

Product Name	Automatic Voltage Stabilizer
Model Number	RDDLZTND-1000VA
Technology	Relay Control System + Programmed control computerized + control algorithm relay "Cross zero"
Capacity	1 kVA (The power capacity of the voltage stabilizer needs to be 1.5~2 times greater than the load power)
Phase	Single Phase
Input Voltage Range	±15% tolerance of output voltage
Output Voltage*	220V±3%/ 230V±3%/ 240V±3%/ 110V±3% (Optional)
Adjust Time	<1sec. (Against 10% input voltage deviation)
Frequency	50Hz/60Hz
Current Type	AC
Protection Over Voltage	<250±2V
Protection Lack Voltage	<185±2V
Ambient Temperature	-10°C~+45°C
Insulation Resistance	≥5MΩ
Temperature Protection	110℃±10℃
Relative Humidity	<90%
Wave Form Distortion	No additional waveform distortion
Efficiency	>95%
Display	LED
Protection Grade	IP20
Dielectric Strength	1500V/min
Certification	CE, RoHS
Warranty Period	12 months
Weight	2.8 Kg
Size	LxWxH=220x210x160mm
Note: The provided 1kVA voltage stabilizer is 1-phase (L, N, G) by European standards. Split phase (L1, L2 + G) like USA standard can't be customized.

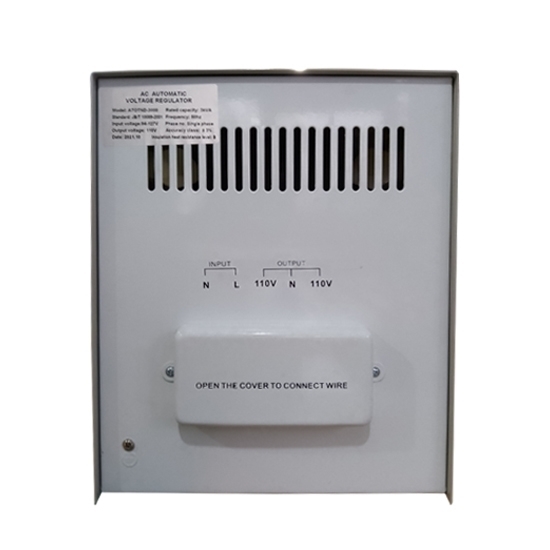

Tips: Correct wiring of the voltage stabilizer

First, according to the power of the purchased voltage stabilizer, select the appropriate wire to connect the input and output terminals of the stabilizer. (Note: The wiring should be strictly by the wiring tag of the stabilizer when installing. Pay special attention to the fact that the live and neutral wires must not be reversed. The neutral and ground wires must not be confused. The ground and neutral wires cannot be omitted). Turn on the voltage stabilizer switch, the voltage meter output on the panel should display 220V, and the power indicator on the panel is on, indicating that the voltage stabilizer has been working normally. If it is necessary to adjust the output voltage, adjust the voltage potentiometer of the circuit board of the machine and adjust it clockwise to increase the output voltage. Adjust counterclockwise to reduce output voltage (turn off load when adjusting).
Visit blog post Safety Tips for Using Voltage Stabilizer.
