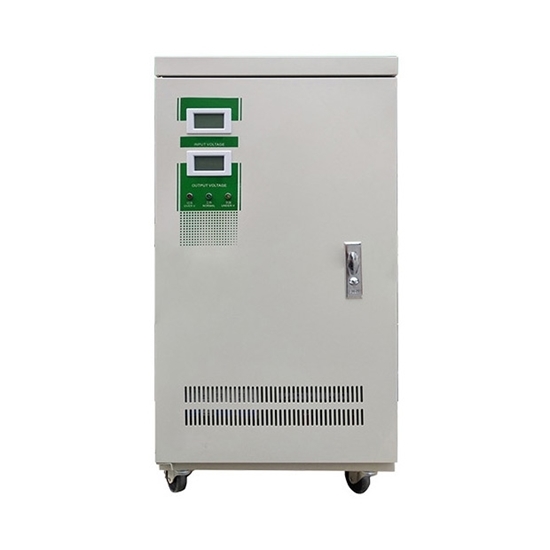

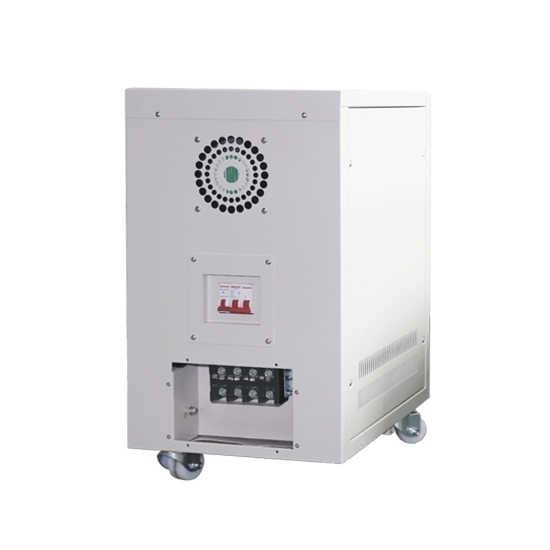

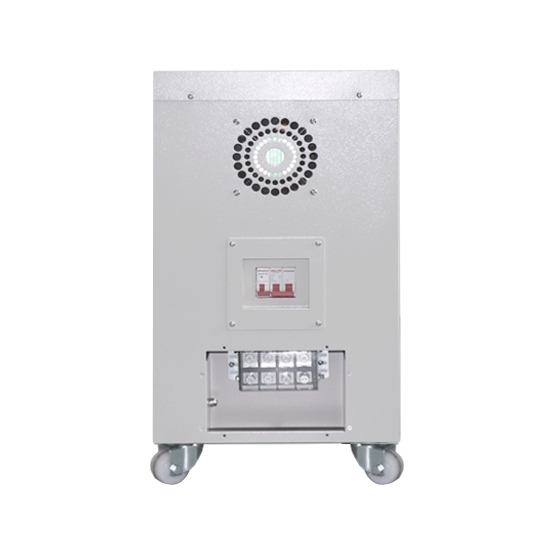

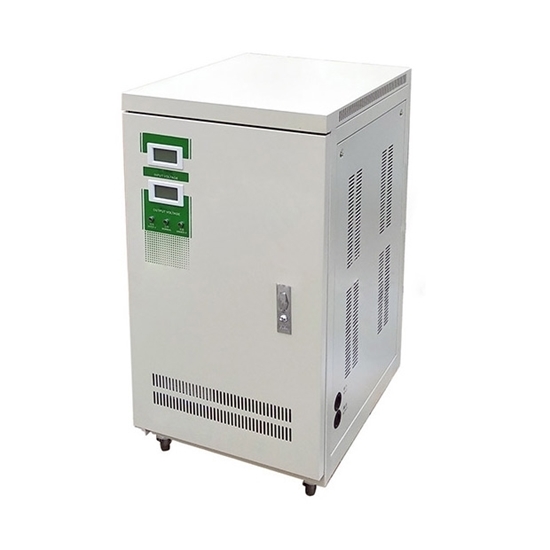

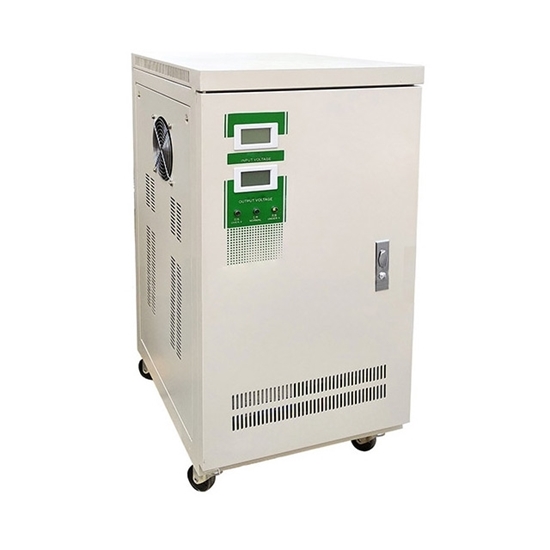

12 KVA Single Phase Automatic Voltage Stabilizer

0 reviews • Write a review

from

$1,503.50

Ex Tax: $1,503.50

Stock: In Stock
Model: RDDLZ-AVS-1P12K
Weight: 1.00
SKU: RDDLZ-AVS-1P12K

Available Options

Phase

Output Voltage

Output Voltage (AC)

Extended Warranty

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Features

Wide input voltage: 95-125V/ 190-250V AC or customize
The high accuracy of the output voltage: 110V±3%/ 220V±3%, other voltages can be customized
High technology: Programmed control computerized
Perfect protection function: Over/low voltage protection, over-heat/load protection, short circuit protection

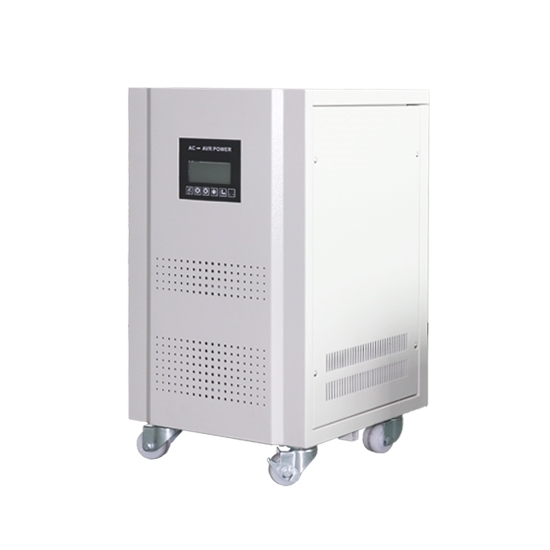

Fashion design: LCD display that can show all protection functions such as input voltage, output voltage, temperature, loading, fault indication, and so on.

Specifications

Product Name	Automatic Voltage Stabilizer
Model Number	RDDLZ-TND/JSW-12kVA
Capacity	12 kVA (The power capacity of the voltage stabilizer needs to be 1.5~2 times greater than the load power)
Phase	Single Phase
Input Voltage Range	±15% tolerance of output voltage
Output Voltage*	220V±3%/ 230V±3%/ 240V±3%/ 110V±3% (Optional)
Adjust Time	<1sec. (Against 10% input voltage deviation)
Frequency	50Hz/60Hz
Current Type	AC
Protection Overvoltage	<246±4V
Temperature Rise	<60°C
Ambient Temperature	-10°C~+40°C
Insulation Resistance	≥5MΩ
Temperature Protection	110℃±10℃
Relative Humidity	<95%
Wave Form Distortion	No additional waveform distortion
Load Power Factor	0.8
Efficiency	≥90%
Display	LCD
Protection Grade	IP20
Dielectric Strength	1500V/min
Certification	CE
Warranty Period	12 months
Weight	65 Kg
Size	350300450mm
Note: The provided 12 kVA voltage stabilizer is 1-phase (L, N, G) by Europe standard. We can customize the split phase (L1, L2 + G) like the USA standard, just confirm with us by email after ordering.

Details

Tips: Overvoltage protection of the voltage stabilizer

When the output voltage exceeds the voltage stabilizer protection value (the phase voltage protection value is adjusted to 250V±5V at the factory), the voltage stabilizer will automatically protect, reduce or cut the voltage output voltage of the stabilizer, and the over-voltage indicator light will be on, the user should immediately shut down to check the grid voltage or the voltage stabilizer. When the voltage stabilizer is working, if the output voltage is jitter, it may be capacitive or the inductive load is too heavy. The user can adjust the switch on the circuit board in the case to eliminate the jitter (please turn off the load when adjusting). If the shaking cannot be eliminated, it may be caused by too much internal resistance of the input grid line or serious distortion of the input waveform.

If the voltage stabilizer is under overvoltage protection after starting, please check whether the stabilizer is adjusted normally and whether the grid voltage is out of the range of the voltage stabilizer. Switch on the voltage stabilizer and turn on the electrical equipment after the output voltage is stable.
Visit blog post Safety Tips for Using Voltage Stabilizer.
