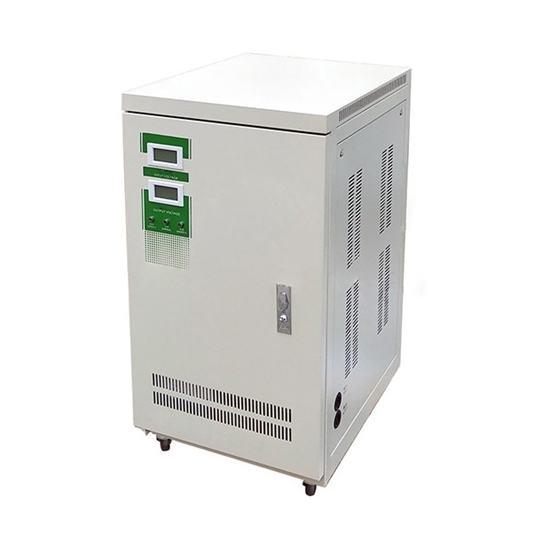

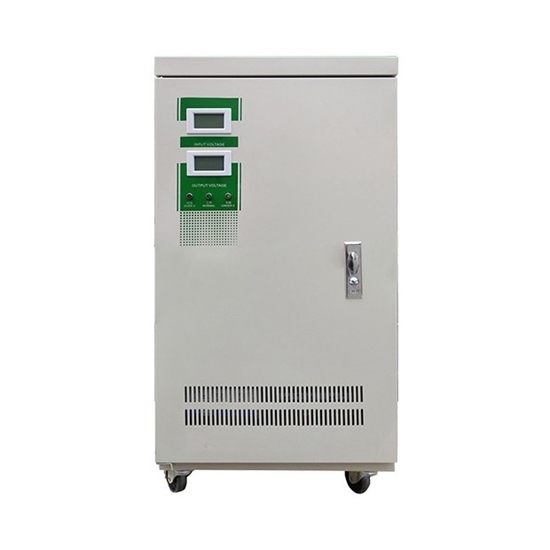

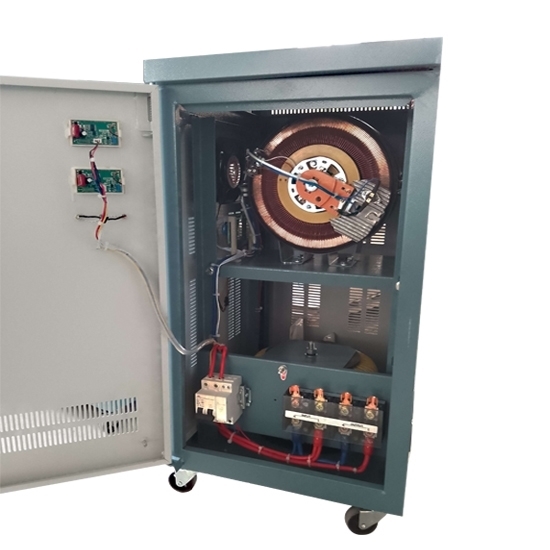

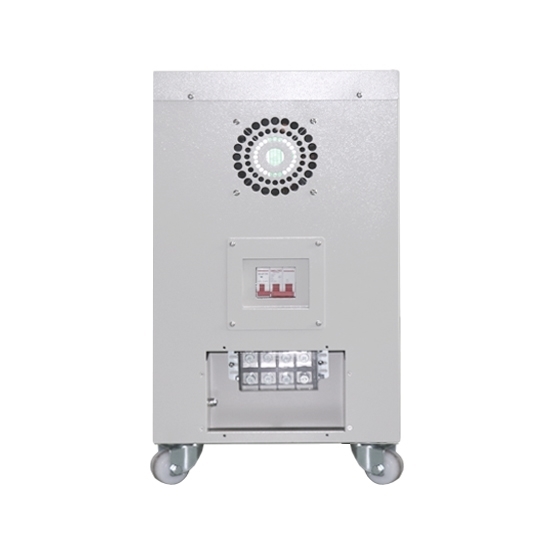

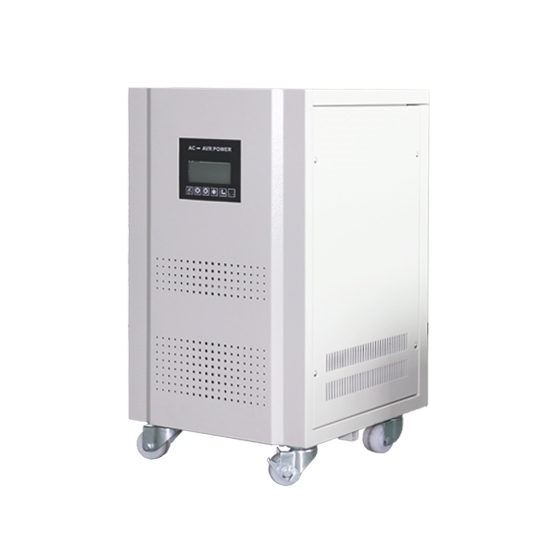

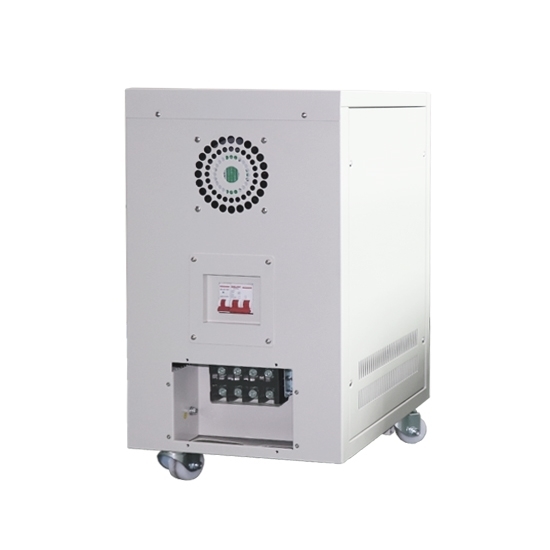

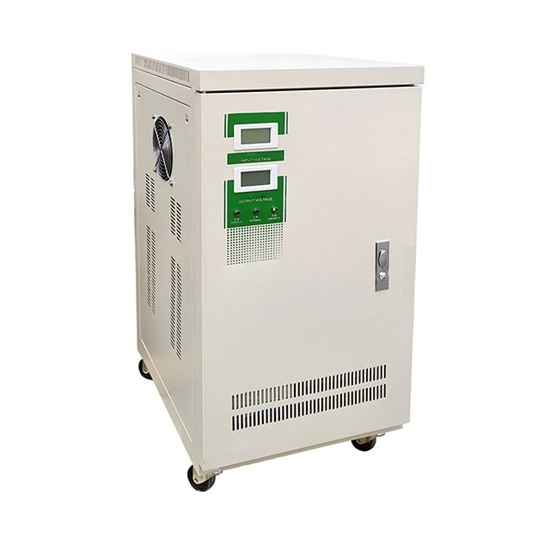

15 KVA Single Phase Automatic Voltage Stabilizer

0 reviews • Write a review

from

$1,745.26

Ex Tax: $1,745.26

Stock: In Stock
Model: RDDLZ-AVS-1P15K
Weight: 1.00
SKU: RDDLZ-AVS-1P15K

Available Options

Phase

Output Voltage

Output Voltage (AC)

Extended Warranty

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Buy a high-performance single-phase automatic voltage stabilizer with a reasonable price, 15 kVA rated capacity, 95-125V / 190-250V AC input voltage, and 110V±3%/ 220V±3% output voltage, is able to satisfy various requirements such as household, office, industry, medical electricity supply.

Features

Wide input voltage: 95-125V/ 190-250V AC or customized
The high accuracy of the output voltage: 110V±3%/ 220V±3%, other voltages can be customized
High technology: Programmed control computerized
Perfect protection function: Over/low voltage protection, over-heat/load protection, short circuit protection
Fashion design: LCD display that can show all protection functions i.e. input voltage, output voltage, temperature, loading, fault indication, and so on.

Specifications

Product Name	Automatic Voltage Stabilizer
Model Number	RDDLZ-TND/JSW-15kVA
Capacity	15 kVA (The power capacity of the voltage stabilizer needs to be 1.5~2 times greater than the load power)
Phase	Single Phase
Input Voltage Range	±15% tolerance of output voltage
Output Voltage*	220V±3%/ 230V±3%/ 240V±3%/ 110V±3% (Optional)
Adjust Time	<1sec. (Against 10% input voltage deviation)
Frequency	50Hz/60Hz
Current Type	AC
Protection Overvoltage	<246±4V
Temperature Rise	<60°C
Ambient Temperature	-10°C~+40°C
Insulation Resistance	≥5MΩ
Temperature Protection	110℃±10℃
Relative Humidity	<95%
Wave Form Distortion	No additional waveform distortion
Load Power Factor	0.8
Efficiency	≥90%
Display	LCD
Protection Grade	IP20
Dielectric Strength	1500V/min
Certification	CE
Warranty Period	12 months
Weight	70 Kg
Size	410330650mm
Note: The provided 15 kVA voltage stabilizer is 1-phase (L, N, G) by Europe standard. We can customize the split phase (L1, L2 + G) like the USA standard, just confirm with us by email after ordering.

Details

Tips: 6 advantages of AC automatic voltage stabilizer

Super strong power supply voltage stabilizing effect ensures that the electrical appliance can work stably.
Be able to stabilize the voltage of low voltage 120-160v or high voltage 250-270v between 200-230v, and ensure the normal operation of electrical appliances.
In case of sudden power supply after an emergency power failure, the output power supply can be started with a delay of 5-8 minutes, which can better avoid damage of electrical appliances due to high voltage.
The AC voltage stabilizer can ensure the safety of electrical appliances.
Effectively reduce the power consumption of electrical equipment.
In case of insufficient power supply or voltage, the AC voltage stabilizer can provide the most reliable power guarantee.
