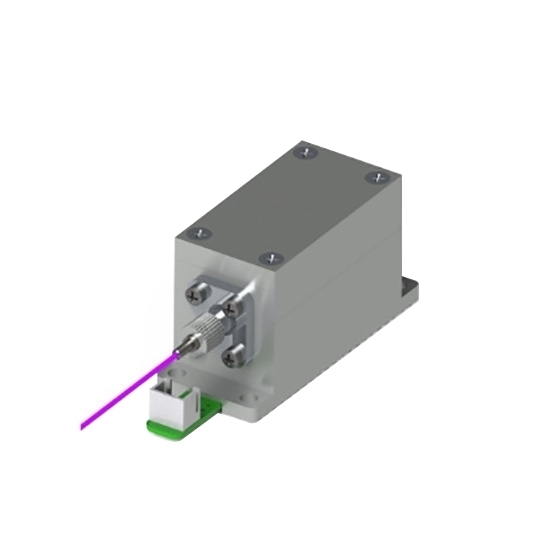

Blue Violet Fiber Coupled Laser Module, 405nm 720mW

Blue Violet Fiber Coupled Laser Module, 405nm 720mW
Blue Violet Fiber Coupled Laser Module, 405nm 720mW
0 reviews • Write a review
from
$498.73
Ex Tax: $498.73
  • Stock: In Stock
  • Model: RDDLZ-LM-FFGX405
  • Weight: 1.00
  • SKU: RDDLZ-LM-FFGX405

Available Options

Add to Cart
Buy Now Question?
Add to Wish List Compare this Product

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Blue violet fiber coupled laser module is widely used in fields such as laser criminal investigation, 3D printing, laser cutting, laser medicine, laser display, laser ranging, and communication. The fiber coupled laser module operates within a temperature range of 0℃ to 50℃ and can be stored at temperatures from -40℃ to 85℃, ensuring stable performance under various environmental conditions to meet diverse application needs.

Specification

ModelRDDLZ-FFGX-405720MW
Laser typeUVLD laser
Center wavelength405nm
Optical powerPo=720mW @405nm
Power supply440mA 5.0V @405nm
Power stability<±2% (8h) @Constant temp
Fiber opticSU105 NA=0.22 FC connector
Input portXH2.54 2P
Working modecontinuous output/pulse output
Light source lifespan>10000h
Recommended cooling methodWater cooling/20±5℃
Operating temperature0℃~50℃
Storage temperature-40℃~85℃
Size69.4mm×22mm×29mm
Net weight68g


Dimension (mm)

Detail

Tips: Precautions for using blue violet fiber coupled laser module

  1. Do not look directly at the laser beam.
  2. The laser module must be operated according to the instructions provided in the manual. Do not disassemble the product without authorization.
  3. Please do not turn on the power or light source of the blue violet fiber coupled laser module until installation is complete.
  4. The fiber coupled laser module adopts a sealed design. Please ensure that the wiring is intact and undamaged before installation.
  5. Before powering on, check that the plug is securely plugged in and that the power cord is fully connected.
  6. It is strictly prohibited to light up and use fiber coupled laser module in an uncooled environment for a long time.
