3 Inch Stainless Steel Basket Strainer

0 reviews • Write a review

from

$720.36

Ex Tax: $720.36

Stock: In Stock
Model: RDDLZ-SSBS-DN80
Weight: 1.00
SKU: RDDLZ-SSBS-DN80

Available Options

Short Description

Installation

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Note: This basket strainer cannot be used for drinking water.

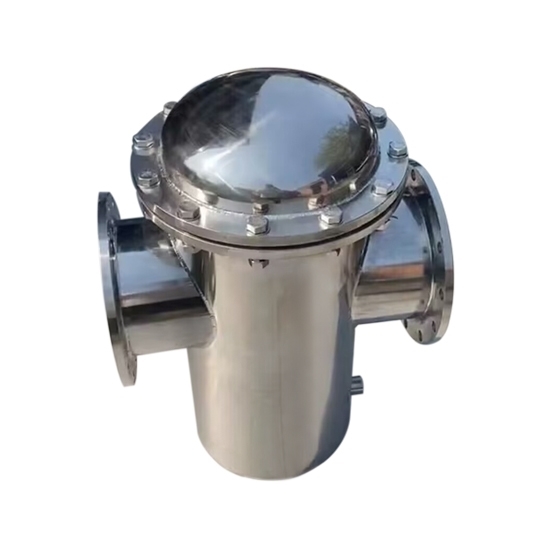

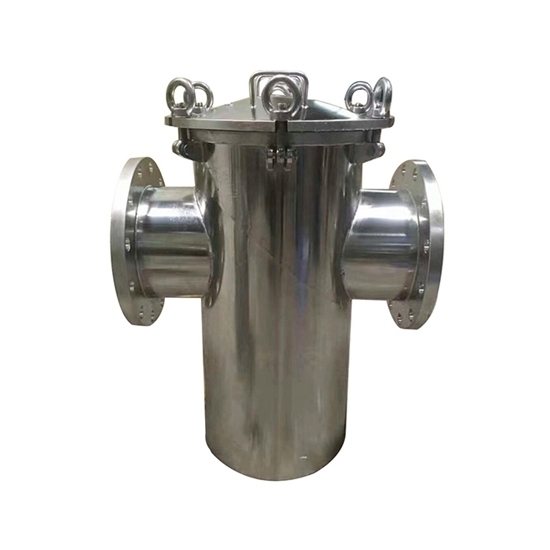

High quality 3 inch (DN80) stainless steel basket strainer is used in piping systems to remove unwanted particles, debris, and other impurities from fluid flowing through the system. Flange connection, stainless steel materials can withstand high temperatures and pressure.

Specification

Model: RDDLZ-HG80
Type: Basket Type Strainer
Nominal Diameter: 3 inch (DN80)
Working Pressure: 1.6-10MPa
Product Material: Stainless Steel
Connection Form: Flange
Temperature Range: 0°C~330°C
Filtration accuracy: 100-400 mesh
Medium: Water, oil

Dimension (mm)

Detail

Application

Basket strainers are mainly used in working conditions with a large number of impurities. Basket strainers are mainly used in water, oil, or other liquid pipelines, and have been widely used in petroleum, chemical, pharmaceutical, food, and other industries.

Tips: How to maintain a stainless steel basket strainer?

When cleaning impurities, pay special attention to the stainless steel wire mesh on the filter element not be deformed or damaged, otherwise, if the filter is installed again, the purity of the filtered medium will not meet the design requirements, and compressors, pumps, instruments, and other equipment will be damaged.
If the stainless steel wire mesh is found to be deformed or damaged, it must be replaced immediately.
