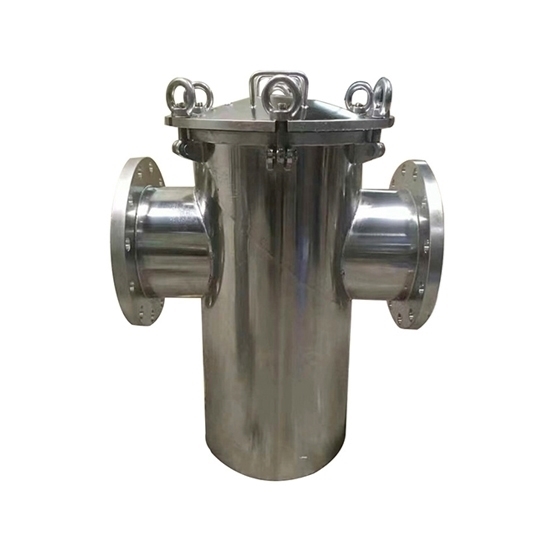

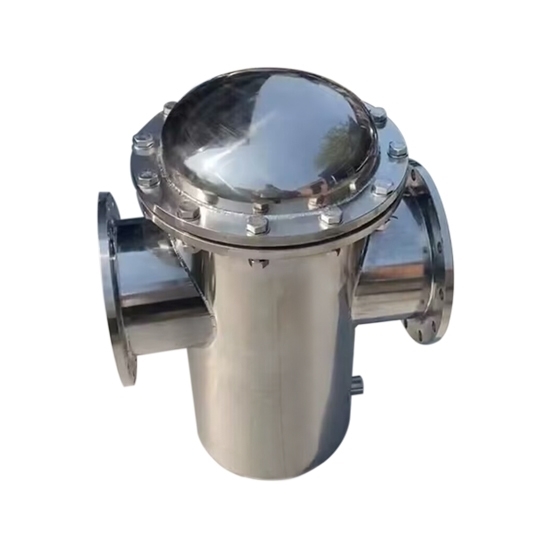

5 Inch Stainless Steel Basket Strainer

0 reviews • Write a review

from

$1,144.51

Ex Tax: $1,144.51

Stock: In Stock
Model: RDDLZ-SSBS-DN125
Weight: 1.00
SKU: RDDLZ-SSBS-DN125

Available Options

Short Description

Installation

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Note: This basket strainer cannot be used for drinking water.

Reliable 5 inch basket strainer for sale online. The basket filter comes with DN125, working temperature is 0°C~330°C, SS material. Flange stainless steel basket filter is suitable for chemical processing, oil and gas, water treatment and food processing.

Specification

Model: RDDLZ-HG125
Type: Basket Type Strainer
Nominal Diameter: 5 inch (DN125)
Working Pressure: 1.6-10MPa
Product Material: Stainless Steel
Connection Form: Flange
Temperature Range: 0°C~330°C
Filtration accuracy: 100-400 mesh
Medium: Water, oil

Dimension (mm)

DN	D	L	H2	H
125	273mm	480mm	360mm	550mm

Detail

Application

Basket strainers are mainly used in working conditions with a large number of impurities. Basket strainers are mainly used in water, oil, or other liquid pipelines, and have been widely used in petroleum, chemical, pharmaceutical, food, and other industries.

Tips: How does a basket strainer work?

When the basket strainer is working, the medium enters the inner side of the strainer screen from the inlet, enters the outer side of the strainer screen after being strainered by the strainer screen, and enters the pipeline system through the outlet. When the basket strainer has been used for a certain period of time, due to the blockage of dirt, the resistance of the book increases. At this time, it is necessary to open the cover of the collector, take out the strainer cartridge inside and clean it, and then continue to use it.
