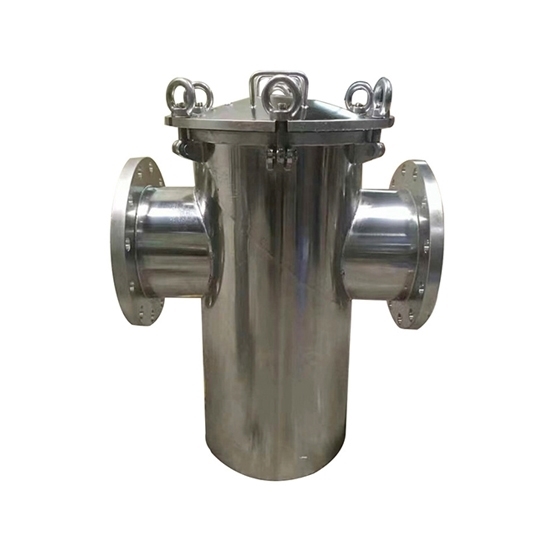

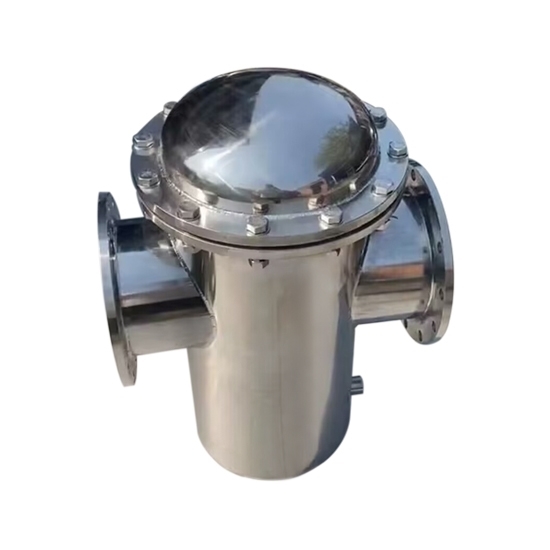

2 Inch Stainless Steel Basket Strainer

0 reviews • Write a review

from

$436.31

Ex Tax: $436.31

Stock: In Stock
Model: RDDLZ-SSBS-DN50
Weight: 1.00
SKU: RDDLZ-SSBS-DN50

Available Options

Short Description

Installation

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Note: This basket strainer cannot be used for drinking water.

2 inch stainless steel basket strainers for sale online. The simplex basket strainer is a small device that removes a small number of solid particles in liquids and can be used to remove unwanted particles, debris and other impurities.

Specification

Model: RDDLZ-HG50
Type: Basket Type Strainer
Nominal Diameter: 2 inch (DN50)
Working Pressure: 1.6-10MPa
Product Material: Stainless Steel
Connection Form: Flange
Temperature Range: 0°C~330°C
Filtration accuracy: 100-400 mesh
Medium: Water, oil

Dimension (mm)

DN	D	L	H2	H
50	108mm	260mm	170mm	300mm

Detail

Application

Tips: What is a basket strainer?

Basket strainer, also known as barrel strainer. It is mainly composed of connecting pipe, main pipe, strainer basket, flange, flange cover and fasteners, etc. It is used to remove particles in process water and recirculating liquid. When the liquid enters the strainer basket through the main pipe, the solid impurity particles are blocked in the strainer basket, while the clean fluid passes through the strainer basket and is discharged from the strainer outlet. When cleaning is required, unscrew the screw plug at the bottom of the main pipe, drain the fluid, remove the flange cover, and reinstall it after cleaning. Therefore, it is extremely convenient to use and maintain.
