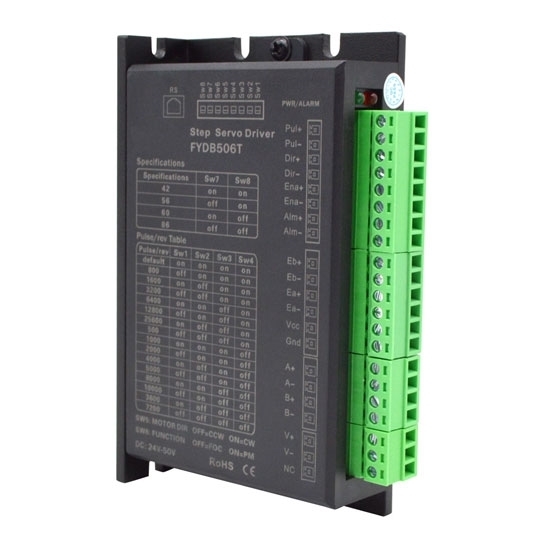

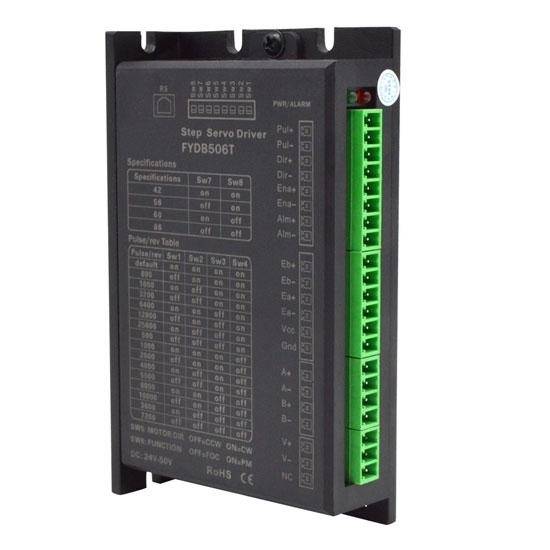

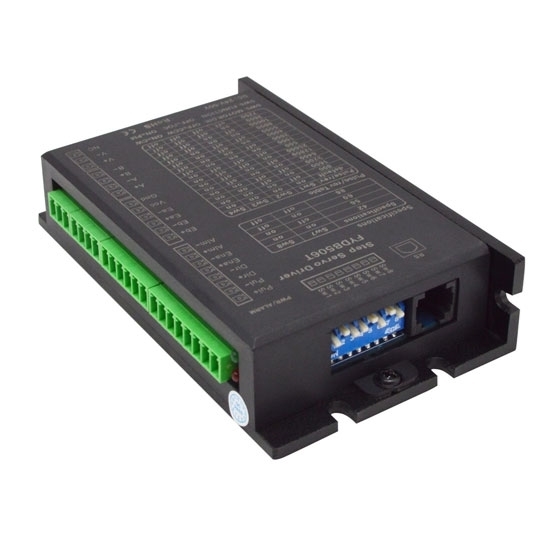

Low price closed loop stepper driver is an actuator which used for Nema 17 bipolar stepper motor. It drives hybrid 2 phase stepper motor to rotate at a step angle in the set direction when receiving a pulse signal.
Features
- High performance and high efficiency. The digital stepper motor driver adopts 32-bit DSP control technology to make the hybrid bipolar stepper motor achieve the best output performance.
- Low vibration and low noise. The method of combining digital and analog and advanced closed-loop control system of power angle.
- Small temperature rise and long life. The current is adjusted intelligently according to the load.
- Interference frequency filtering. Photoelectric isolation differential signal input, impulse response frequency up to 200Kpps.
- Strong function and low repair rate. Under-voltage, over-voltage, over-current, short circuit, open circuit, tracking error out of tolerance and other fault diagnosis transition indication and automatic protection function.
Specification
Model | RDDLZ-FYDB506T | |
Matched Motor | Nema 23 2 Phase Closed Loop Stepper Motor | |
Voltage | DC 24V ~ 50V | |
Drive Current | 1.0A ~ 6.0A Auto-Adjust | |
Microstepping Setting | 25600 steps/rev 16 Channels | |
Hightest Pulse Frequency | 200Kpps | |
Certification | CE, FCC, RoHS | |
Dimensions | 116 x 70 x 26.5mm | |
Weight | 0.5kg | |
Function Description | ||
Functions | Operation Instructions | |
PWR | Power Indicating Lamp | When the driver is powered on, the green light is always on. |
ALARM | Overcurrent/Undervoltage Indicator | When the overvoltage and overcurrent faults occur, the red light is always on. |
PUL+ | Positive End of Control Pulse Signal | Connect to signal power,+5V to +24V can be driven. |
PUL- | Negative End of Control Pulse Signal | The falling edge is valid, and the motor takes one step whenever the pulse changes from high to low. Input resistance 220Ω. Requirements: low level 0 to 0.5V, high level 4 to 5V, Pulse charge >2.5us. |
DIR+ | Positive End of Directional Signal | Connect to signal power,+5V to +24V can be driven. |
DIR- | Negative End of Directional Signal | Used to change the direction of the motor. Input resistance 220Ω. Requirements: low level 0 to 0.5V, high level 4 to 5V, Pulse charge >2.5us. |
ENA+ | Positive End of Enabling Signal | Connect to signal power,+5V to +24V can be driven. |
ENA- | Negative End of Enabling Signal | When it is valid (low level), the motor coil current is turned off, the driver stops working, and the motor is in a free state. |
ALM+ | Positive End of Alarm Signal Output | When over-current, over-voltage, under-voltage or over-tolerance alarms, the alarm signal is valid (the output photocoupler is turned on). ALM+ is connected to the pull-up power to use the positive pole of the output power supply, and ALM- is connected to the negative pole of the output power supply. Maximum drive current 50mA. |
ALM- | Negative End of Alarm Signal Output | |
EZ+/EZ- | Positive/Negative End of Encoder Z Phase Input | Positive input/negative input of Connecting to encoder Z channel |
EB+/EB- | Positive/Negative End of Encoder B Phase Input | Positive input/negative input of Connecting to encoder B channel |
EA+/EA- | Positive/Negative End of Encoder A Phase Input | Positive input/negative input of Connecting to encoder A channel |
VCC | Encoder Power Supply | 5V encoder power supply |
GND | Ground of Encoder Power Supply | Ground of Encoder Power Supply |
A+A- | Motor Wiring | Four lead wires |
B+B- |
Microstep Segmentation Setting
Pulse/Revo | SW1 | SW2 | SW3 | SW4 |
Default | on | on | on | on |
800 | off | on | on | on |
1600 | on | off | on | on |
3200 | off | off | on | on |
6400 | on | on | off | on |
12800 | off | on | off | on |
25600 | on | off | off | on |
500 | off | off | off | on |
1000 | on | on | on | off |
2000 | off | on | on | off |
4000 | on | off | on | off |
5000 | off | off | on | off |
8000 | on | on | off | off |
10000 | off | on | off | off |
3600 | on | off | off | off |
7200 | off | off | off | off |
Dimensions (Unit: mm)
Wiring Diagram
Details
Tips: How to set up a 2 phase stepper motor driver
Usually the step angle of a two-phase stepper motor is 1.8 degrees. It is calculated that it takes 200 pulses to make one revolution, that is, it needs to walk 200 steps, and each step is 1.8 degrees. Generally, two phase hybrid stepper motor drivers are equipped with switches to adjust the number of subdivisions. You can easily set the desired number of subdivisions by flipping the corresponding setting switch against the setting table.
Two phase bipolar stepper motor driver setting table has two forms, one is the subdivision number, and the other is to directly give the number of pulses required for each revolution under different subdivision numbers. In order to adapt to stepping motors with different rated currents, the drive generally has an adjustment function, and the adjustment method is also different. Generally, two forms of potentiometer or dial switch are used. The most commonly used is the dial switch form. Appropriate current parameters should be selected when setting, the greater the current, the greater the torque that the motor can generate.
In order to reduce the heating of the motor, many drivers have a half-current function. When the half-current switch is turned on, the stepper motor driver will reduce the current to the set value if it does not receive a pulse signal within a short period of time. Half, let the motor better heat dissipation. But when this function is used, the locking torque will be reduced correspondingly in the half-flow state, so it needs to be selected according to actual needs.
