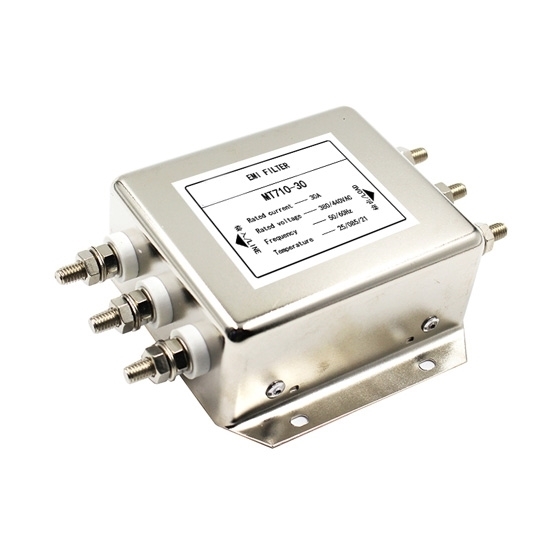

EMI Line Filter, 40A, 3 Phase

0 reviews • Write a review

from

$128.48

Ex Tax: $128.48

Stock: In Stock
Model: RDDLZ-EMI-1040
Weight: 1.00
SKU: RDDLZ-EMI-1040

Available Options

Short Description

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

40A EMI line filter is compact structure, easy to install, excellent differential mode and common mode attenuation performance, and this single stage line filter is widely applied in 3-phase motor drive, UPS, packaging equipment, textile equipment, industrial air conditioners, and other 3-phase 3-wire electrical equipment.

Specification

Model	RDDLZ-MT710-40
Filter Type	EMI
Configuration	Single Stage
Rated Current @ 40℃	40A
Rated Voltage	250/440V AC
Operating Frequency	50/60Hz
Phase	Three Phase Three Wire
Leakage Current	≤10mA @ 250V AC 50Hz 20℃
Filter Range	150KHz-30MHz
Hipot Rating (one minute)	Line to Line	1450V DC
	Line to Ground	2250V DC
Climatic Category	25/085/21
Working Temperature	-25°C~+85°C
Output Termainal	Threaded stud M6
Weight	640g
Dimension	See below

Dimensions (Unit: mm)

Electrical Schematic

Insertion Loss Table (in 50Ω system acccording to IEC/CISPR No.17)

Tips: How to select an EMI power line filter?

1. According to equipment rated working voltage, current and frequency, it can confirm filter type. Don’t take too small rated current of power line filter, otherwise it will damage filter or reduce filter life time. Don’t take too large rated current, because large current will increase filter dimension or reduce filter electrical performance. Normally confirm filter rated current according to 1.2 times of equipment rated current.

2. According to field interference source of equipment, confirm types of interference noise, common mode interference or differential mode interference, and then select the suitable EMI line filter. If interference type can’t be confirmed, thus confirm filter model according to practical exploration, which is a practical and effective method.

3. Select a line filter according to allowable value of maximum leakage current, especially for some medical care equipment.
