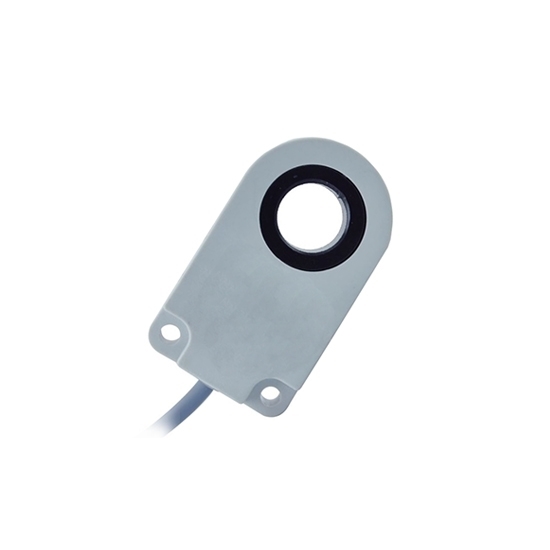

Inductive Proximity Sensor, Ring Type, 15mm, 2 Wire

0 reviews • Write a review

from

$130.26

Ex Tax: $130.26

Stock: In Stock
Model: RDDLZ-RTPS-T15
Weight: 1.00
SKU: RDDLZ-RTPS-T15

Available Options

Short Description

Output Form

Lead Wire

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Economical price inductive proximity sensor with three kinds of output methods for your needs, which with 500Hz response frequency and -20℃~80℃ environment temperature. The inductive ring sensor uses ABS plastic shell material, can operate stably in harsh industrial environments.

Features

The ring inductive proximity sensor provides a variety of sensing options to meet the needs of various industrial applications.
It supports cable connection or micro quick disconnect connectors, which is flexible in installation and easy to maintain.
Some models of inductive ring sensors have adjustable sensitivity.
The sensor supports reverse polarity, short circuit and overload protection to ensure safe and stable system operation.

Specification

Model			RDDLZ-RTPS-41600	RDDLZ-RTPS-41650

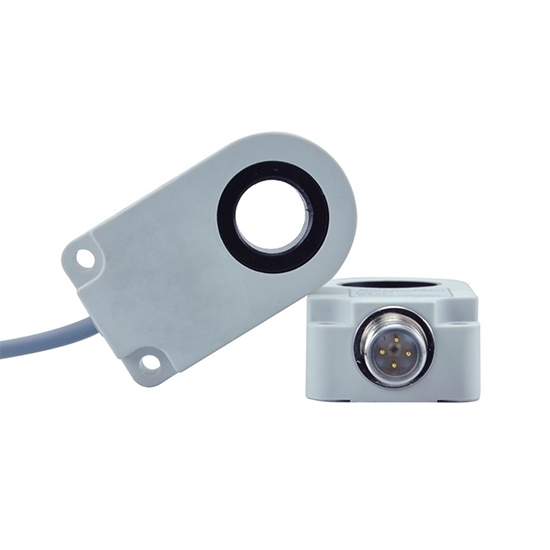

Lead wire types			Direct lead wire	M12 connector
Mounting			Embedded
Output methods	DC24V	NPN	NO
			NC
			NO+NC
		PNP	NO
			NC
			NO+NC
		2 wire	NO
			NC
	AC110V	2 wire	NO
			NC
	AC230V	2 wire	NO
			NC
Operating voltage		DC24V	10-36V
		AC110V/ AC230V	AC90-250V
Output current		DC24V	100mA (2 wire), 200mA(3/4 wire)
		AC110V	500mA
		AC230V	DC 100mA/ AC 300mA
Ring Diameter			15mm
Response frequency			500Hz
Environment temperature			-20~80℃
Insulation resistance			>20MΩ
Repeated accurancy			≤5%
Leak current			≤0.4mA(DC 2wire), ≤1.6mA(AC), ≤0.05mA (DC 3/4 wire)
Shell material			ABS
Protection grade			IP67
Weight			1kg
Certificates			CE, RoHS
Warranty			12 months

Dimension: (mm)

Wiring diagram

Tips: How to choose the models of inductive ring proximity sensor?

1. When choosing the model, you can choose according to your own host computer or the connected load. The output mode of the ring proximity switch of some manufacturers also has NPN/NO.NC optional or dual output, or PNP/NO.NC optional or dual output, each with its own characteristics. As for the output voltage signal, the output will be as much as the input (floating around 1V).

2. Regarding the size of the circular hole of the ring proximity switch, there are generally 3-25mm sizes available on the market. You can choose according to the size of your own detection object. If the detection object is small, you should choose a small detection hole. The object can also be used with other tools during detection. In short, the selected circular hole should match the object to be detected, so as to ensure the sensitivity and stability of the detection.
