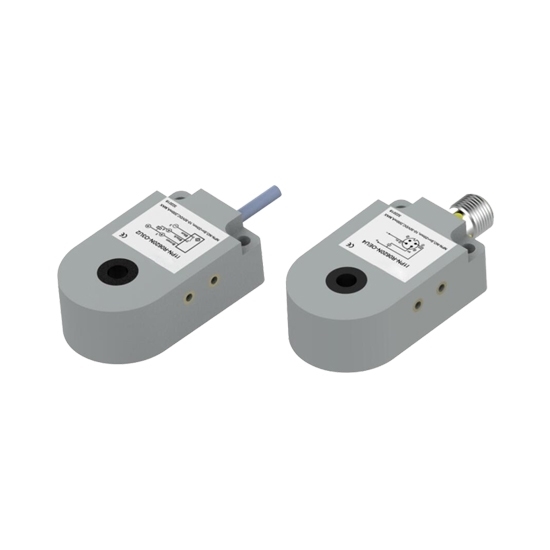

Inductive Proximity Sensor, Ring Type, 10mm, PNP

0 reviews • Write a review

from

$127.78

Ex Tax: $127.78

Stock: In Stock
Model: RDDLZ-RTPS-T10
Weight: 1.00
SKU: RDDLZ-RTPS-T10

Available Options

Short Description

Output Form

Lead Wire

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Ring type inductive proximity sensor with 10 mm diameter, PNP type output, manufacturer direct sale. The inductive ring sensor is generally used to detect small objects, such as blanking detection, small steel balls, small springs, small rivets, metal wire breakage, wire breakage detection.

Features

The ring inductive proximity sensor provides a variety of sensing options to meet the needs of various industrial applications.
It supports cable connection or micro quick disconnect connectors, which is flexible in installation and easy to maintain.
Some models of inductive ring sensors have adjustable sensitivity.
The sensor supports reverse polarity, short circuit and overload protection to ensure safe and stable system operation.

Specification

Model			RDDLZ-RTPS-41500	RDDLZ-RTPS-41550
Lead wire types			Direct lead wire	M12 connector
Mounting			Embedded
Output methods	DC24V	NPN	NO
			NC
			NO+NC
		PNP	NO
			NC
			NO+NC
		2 wire	NO
			NC
	AC110V	2 wire	NO
			NC
	AC230V	2 wire	NO
			NC
Operating voltage		DC24V	10-36V
		AC110V/ AC230V	AC90-250V
Output current		DC24V	100mA (2 wire), 200mA(3/4 wire)
		AC110V	500mA
		AC230V	DC 100mA/ AC 300mA
Ring Diameter			10mm
Response frequency			500Hz
Environment temperature			-20~80℃
Insulation resistance			>20MΩ
Repeated accurancy			≤5%
Leak current			≤0.4mA(DC 2wire), ≤1.6mA(AC), ≤0.05mA (DC 3/4 wire)
Shell material			ABS
Protection grade			IP67
Weight			1kg
Certificates			CE, RoHS
Warranty			12 months

Dimension: (mm)

Wiring diagram

Tips: Advantages of ring inductive proximity sensors

The inductive ring sensor uses a non-contact detection method, which can effectively reduce mechanical wear and increase the service life of the equipment.
The sensor is designed for metal crossing detection and is suitable for automated processes such as counting, monitoring and material identification.
The sensor system responds quickly and can accurately identify fast-moving metal targets to improve production efficiency.
Its compact structure design and flexible installation make it easy to integrate into various types of industrial equipment.
The proximity sensor has strong anti-interference ability and can operate stably in complex industrial environments.
The ring type inductive proximity sensor has high reliability, is suitable for continuous operation, and has low maintenance frequency.
