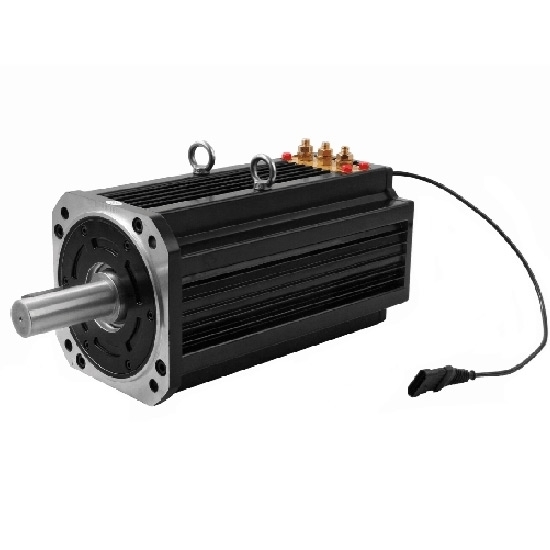

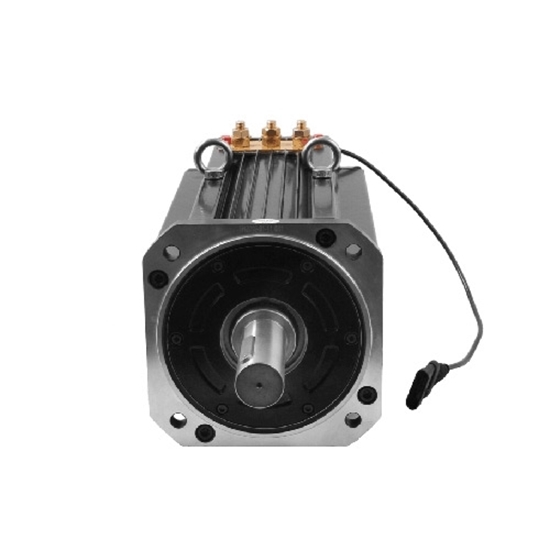

10kW high power BLDC motor for sales, 72V/96V DC working voltage, 50 Nm high holding torque, peak torque up to 110 Nm. 2000 rpm, IP65 rating with shaft seal, brushless design for long life. Brushless DC motor kit (BLDC motor with the controller and gearbox) offers a great combination of durability, efficiency, torque and speed at affordable price. In general, it would be more cost-effective to buy a complete set of our BLDC motors.

Basic Specifications

• Model: RDDLZ-220WDM50020 (Click to see the motor drawings)

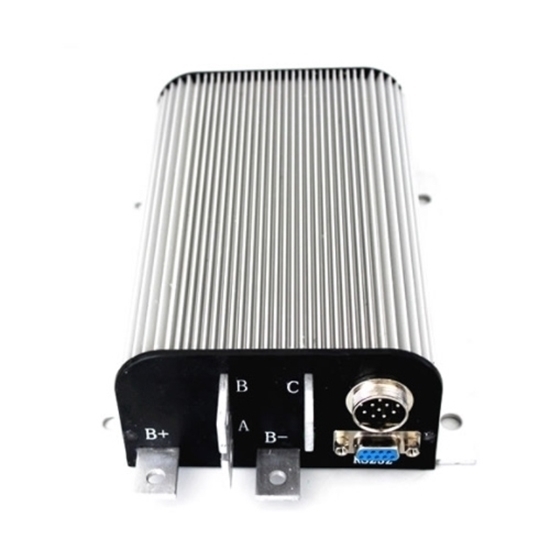

• Matched Controller Model: RDDLZ-KBL / RDDLZ-KEB (Click to the product page)
• Rated Power: 10000W
• Rated Voltage: 72V DC / 96V DC (Optional)
• Rated Current: 163A at 72V, 122A at 96V
• Phase: 3 phase
• Holding Torque: 50 Nm
• Peak Torque: 110 Nm
• Rated Speed: 2000 rpm
• No-load Speed: 2400 rpm
• Square Flange Size: 220 mm
• Weight: 70 kg

Technical Parameters

• Working Efficiency: 85%
• Number of Poles: 4 pairs of poles (8 poles)
• Brake Apparatus Voltage: 24V DC/ 48V DC, (Electromagnetic brake will trigger when the DC supply cuts off)
• Brake Length: 40-50mm
• Insulation Grade: F
• Protection Grade: IP65
• Motor Lead Length: 30 cm, if you buy a kit (motor+controller), an extra 1 meter of wire shall be provided.
• Certificate: CE, RoHS, ISO/TS16949

Note: Power, Voltage, Speed, Shaft, Motor Length, and Motor Lead of RDDLZ BLDC Motors can be customized.

Features

1. High performance and low consumption
   10kW brushless DC motor is three phase electric motor, which especially suited for application requiring higher efficiency and power density.
2. Wide application range and good control effect
   BLDC motor works with a matching controller (RDDLZTH-G) may achieve simple to complex control, turn from CW to CCW, and meet various communication requirements (RS232, RS485, CAN, etc.). BLDC controller can be controlled through 0-5VDC analog signal to adjust the speed.
3. Wide control speed torque range

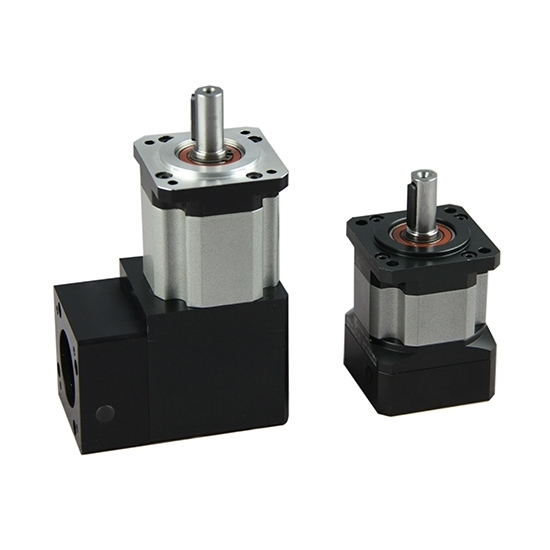

   Brushless DC motor works with a gearbox (choose inline gearbox or right angle gearbox with gear ratio from 3:1 to 200:1) effectively reduce the motor's speed and moment of inertia to increase torque in your application, because the gearbox can control the start/stop and change speed in time.
4. Low noise and smooth operation
   Brushless DC motor has no brushes, no sparks will be generated during operation, which greatly reduces friction.
5. Good protection performance and continuous duty (24/7)
   10kW 72V/96V BLDC motor kit adopts a new type of sealing device, which has good protection performance and strong adaptability to the environment, and works continuously in harsh environments such as corrosion and humidity.

Line Define

Power Wire

Feedback Wire

Dimension (Unit: mm)

Details

Tips: More introduction about 10kW brushless DC motor

10 kW 2000rpm powerful brushless DC motor features high torque, compact shape, low load noise and long service life. With its high power, it can be applied in industrial machinery, boat, car, traction motor, pump, bus A/C systems, etc. As no brush in brushless DC motor, the friction is greatly reduced during running, and spark radio interference also decreased. Generally, brushless DC motors are high efficiency, no spark in running and smooth operation. What's more, 50Nm high torque brushless DC motor is long life, low maintenance cost. There are no brushes in BLDC which will wear out or break and need to be replaced, which makes the BLDC much longer service life and inexpensive.
