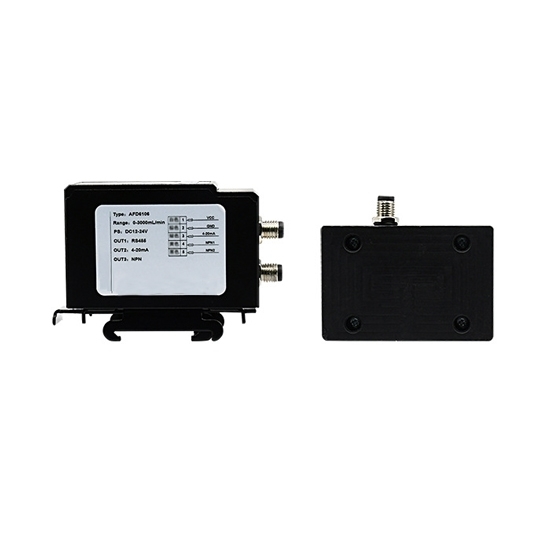

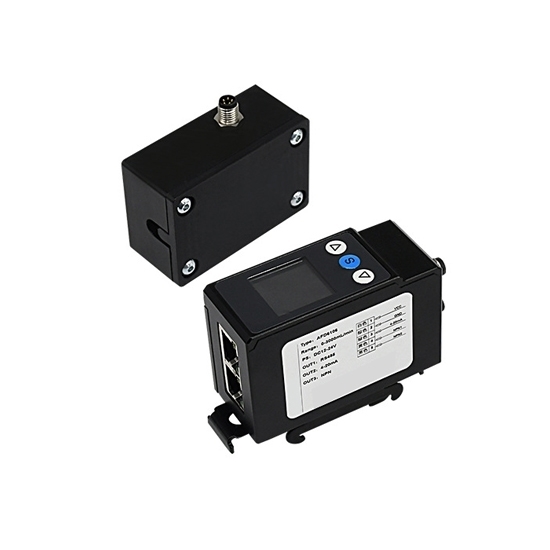

Clamp-on Ultrasonic Flow Sensor, 0-3000ml/min, RS485/4-20mA

0 reviews • Write a review

from

$932.37

Ex Tax: $932.37

Stock: In Stock
Model: RDDLZ-FS-AFD6
Weight: 1.00
SKU: RDDLZ-FS-AFD6

Available Options

Output Signal

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

The clamp-on pipe ultrasonic flow sensor is designed for small-diameter pipes and can be used for flow detection in semiconductor, pharmaceutical and chemical production processes, as well as flow detection in cleaning industry, beverage industry and other occasions.

Features

It adopts an external clamp installation method, which is easy and quick to install, without cutting or destroying the pipe, reducing installation costs and time.
The non-contact design of the clamp-on pipe ultrasonic flow sensor does not affect the liquid flow inside the pipe, so there is no pressure loss.
The ultrasonic flow sensor does not need to directly contact the liquid by using ultrasonic technology to measure the flow, avoiding liquid contamination and equipment wear.

Specification

Model	RDDLZ-AFD6106
Pipe diameter	⌀6 (6.35mm)
Flow range	0~3000mL/min
Accuracy	±10mL/min (0~500mL/min), ±2% reading (500~3000mL/min)
Response time	100ms, 500ms, 1s, 2.5s, 5s, 10s, 30s adjustable
Usage environment	0~50℃, 35~85%RH (non-condensing)
Storage temperature	-20~70℃
Power supply voltage	12~24VDC
Output signal	RS485/4-20mA

Dimension (mm)

Applications

Tips: What is an ultrasonic flow sensor?

An ultrasonic flow sensor is a device that uses the propagation characteristics of ultrasonic signals to measure the flow of liquid or gas. By transmitting and receiving ultrasonic signals, the sensor can detect the change in fluid flow rate and calculate the flow rate. Its non-contact measurement method avoids direct contact between liquid or gas and the sensor, reduces maintenance costs, and is widely used in water treatment, chemical, food, pharmaceutical and other industries to provide high-precision, stable and reliable flow monitoring.
