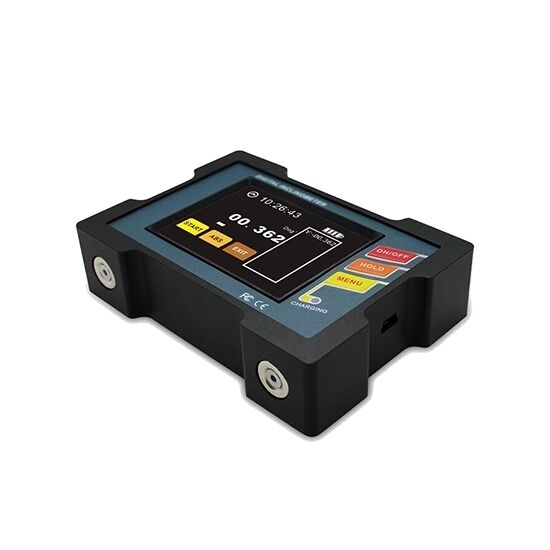

High Accuracy Digital Inclinometer, Single Axis, Output USB1.1

0 reviews • Write a review

from

$849.20

Ex Tax: $849.20

Stock: In Stock
Model: RDDLZ-DMI-810
Weight: 1.00
SKU: RDDLZ-DMI-810

Available Options

Output Signal

Measuring Range

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Single axis digital inclinometer with 0.1 mm (RMS)/ 0.2 mm (RMS) millimeter measuring accuracy, 0.02 mm millimeter measuring LCD.

Features

Accuracy: <0.003°
Repeatability: 0.003°
Angle resolution: 0.001°
Measuring range: ±15°/ ±30°
Data store function.
Absolute/Relative measurement can switch.
Both sides and bottom can be measured.
Double benchmark strong magnet installation.
Auto-angle interleaved compensation function.
Auto temperature drift compensation.
Built-in rechargable industy battaries.
Night vision fours colors screen.
Filter frequency optional.

Specification

Model	DMI810-15	DMI810-30
Angle Measuring Range	±15°	±30°
Mm Measuring Range	267mm	577mm
Millimeter Measuring Accuracy	0.1 mm (RMS)	0.2 mm (RMS)
The Highest Measuring Accuracy	＜0.005 (Full measuring range)	＜0.001 (Full measuring range)
Measuring Axis	Single axis
Angle Measuringt Solution	0.001°
Three Measuring Mode Selectable	Radian, Angle, mm/meter can be set
Absolute Accuracy	0.05°/rms
Millimeter Measuring LCD	0.02 mm
LCD	64-color true color luminous display
LCD Visible Area Size	L57.6mm*W43.2mm
Working Temperature	-10℃-70℃
Working Humidity	85% RH
Power Supply	3.7V Charging Lithium Battery
Ideal Charging Time	5h
Battery Sustainable Charging Times	11h

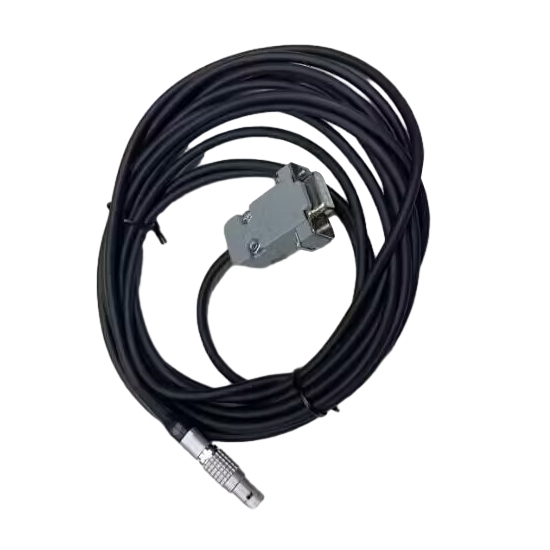

Output Signal	USB1.1 (Virtual Serial Device), Optional: RS232/RS485
Equipped with PC Software	VC Software

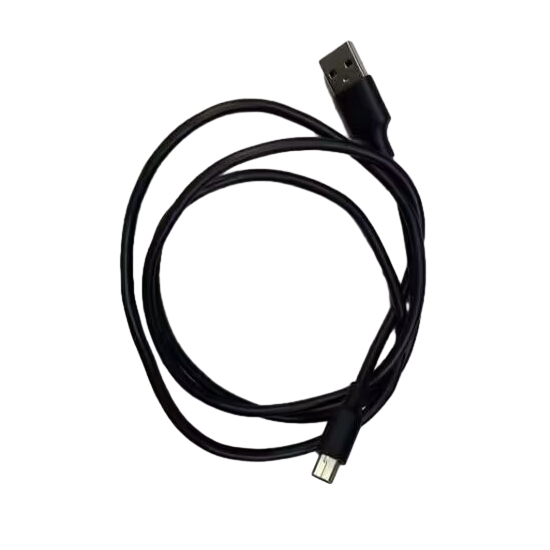

Connect Plug in	Standard 5 Pin USB Connector
Shock Resistance	10g @11ms, three-axis (Half sine wave)
Shock Impact	10g rms, 10-100Hz
Weight	300g
Waterproof Grade	IP54
Material	Aluminum Anodizing
Size	L107mmW75mmH27.1mm
Certificate	CE, FCC, ROHS
Warranty	12 months

Dimension (unit=mm)

Measuring Direction

Tips: The Characteristics of Digital Inclinometer.

Complete 360-degree measurement in 4 directions.
When the inclinometer is turned upside down, the angle readings displayed on the LCD will automatically flip upwards for easy reading.
Precise stainless steel measuring structure.
It can be re-calibrated without any special tools and equipment.
Multi-purpose measuring tool, three-in-one protractor, inclinometer and spirit leve
A 3-volt battery lasts for 3000 hours.
