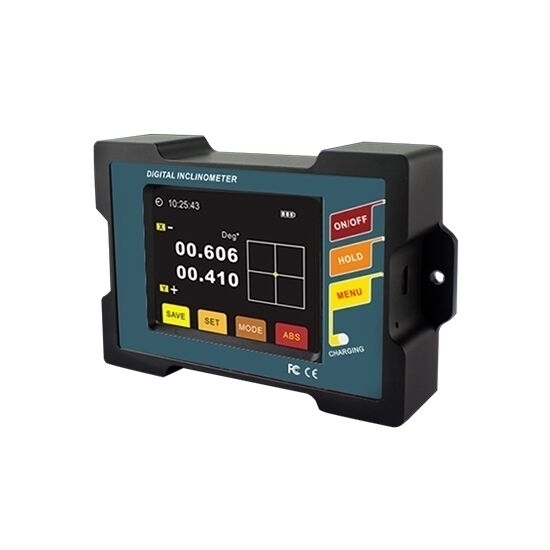

Digital Inclinometer, Dual Axis, Output RS485/ RS232

0 reviews • Write a review

from

$912.70

Ex Tax: $912.70

Stock: In Stock
Model: RDDLZ-DMI-825
Weight: 1.00
SKU: RDDLZ-DMI-825

Available Options

Short Description

Output Signal

Measuring Range

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Dual axis digital inclinometer with 10g rms, 10-100Hz shock impact, designed with aluminum anodizing which offers long service lifetime.

Features

Accuracy: <0.003°
Repeatability: 0.003°
Angle resolution: 0.001°
Measuring range: ±15°/ ±30°
Data store function.
Absolute/Relative measurement can switch.
Both sides and bottom can be measured.
Double benchmark strong magnet installation.
Auto-angle interleaved compensation function.
Auto temperature drift compensation.
Built-in rechargable industy battaries.
Night vision fours colors screen.
Filter frequency optional.

Specification

Model	DMI825-15	DMI825-30
Angle Measuring Range	±15°	±30°
Mm Measuring Range	267mm	577mm
Millimeter Measuring Accuracy	0.1 mm (RMS)	0.2 mm (RMS)
The Highest Measuring Accuracy	＜0.005 (Full measuring range)	＜0.001 (Full measuring range)
Measuring Axis	Dual axis
Angle Measuringt Solution	0.001°
Three Measuring Mode Selectable	Radian, Angle, mm/meter can be set
Absolute Accuracy	0.05°/rms
Millimeter Measuring LCD	0.02 mm
LCD	64-color true color luminous display
LCD Visible Area Size	L57.6mm*W43.2mm
Working Temperature	-10℃-70℃
Working Humidity	85% RH
Power Supply	3.7V Charging Lithium Battery
Ideal Charging Time	5h
Battery Sustainable Charging Times	11h
Output Signal	RS485/RS232
Equipped with PC Software	VC Software
Connect Plug in	Standard 5 Pin USB Connector
Shock Resistance	10g @11ms, three-axis (Half sine wave)
Shock Impact	10g rms, 10-100Hz
Weight	300g
Waterproof Grade	IP54
Material	Aluminum Anodizing
Size	L117mmW75mmH27.1mm
Certificate	CE, FCC, ROHS
Warranty	12 months

Dimension (unit=mm)

Measuring Direction

Tips: Precautions of Digital Inclinometer.

Keep it clean when in use, and wipe the instrument regularly.
The working temperature should be kept at 0℃~4o℃.
Sensitivity will decrease due to usage conditions or time, so it should be calibrated regularly to maintain basic accuracy.
The relative humidity of the environment should be ≤80%.
After use, it should be placed in a dry environment.
