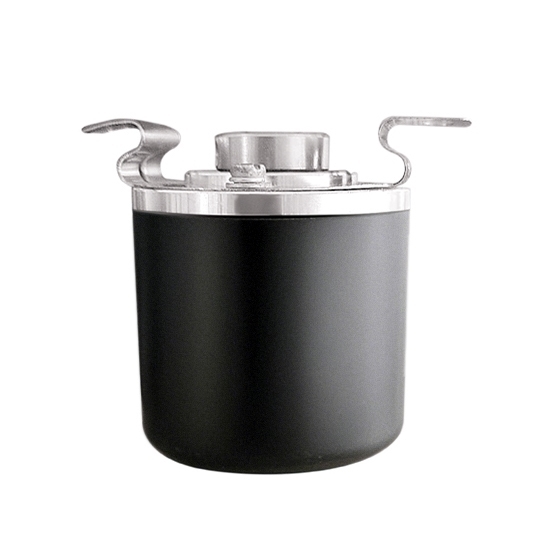

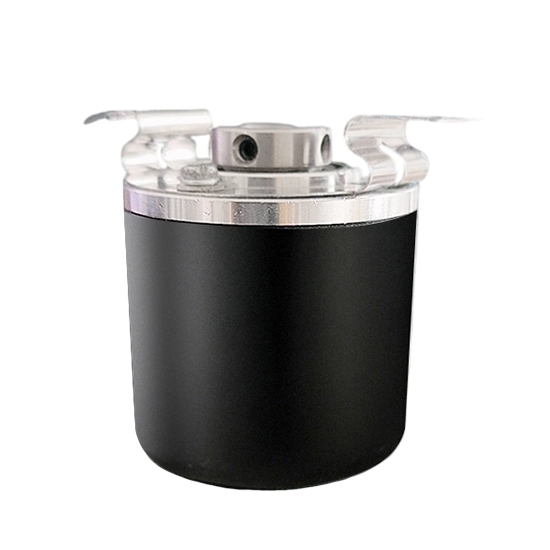

Incremental Rotary Encoder, Blind Shaft, 360 Ppr

Incremental Rotary Encoder, Blind Shaft, 360 Ppr
Incremental Rotary Encoder, Blind Shaft, 360 Ppr
Incremental Rotary Encoder, Blind Shaft, 360 Ppr
Incremental Rotary Encoder, Blind Shaft, 360 Ppr
Incremental Rotary Encoder, Blind Shaft, 360 Ppr
0 reviews • Write a review
from
$167.94
Ex Tax: $167.94
  • Stock: In Stock
  • Model: RDDLZ-IRE-360PB
  • Weight: 1.00
  • SKU: RDDLZ-IRE-360PB

Available Options

Add to Cart
Buy Now Question?
Add to Wish List Compare this Product

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Incremental optical rotary encoders with 360 ppr can be used for robots, workbenches, injection molding machines, electronic equipment, printing and packaging machinery, non-standard equipment and CNC machine, a variety of office automation systems, industrial automation control and measurement fields.

Specification

BasicsModelRDDLZ-KP3808G-360BM
Weight100 g
WiringColorRedBlackGreenWhiteYellowBrownGrayOrange
SignalVccGNDABZA-B-Z-
Mechanical propertiesMaximum shaft speed (r/min)5000
Starting torque<0.03Nm (25℃)
Maximum shaft loadRadial load: 35N, axial load: 15N
Shock resistance50G/11ms
Anti-vibration10G (10~2000Hz)
Rotational inertia4X10-8kgm2
Operating temperature-30~+85℃ (-22~+185℉)
Storage temperature-35~+95℃ (-31~+203℉)
Protection LevelIP51
Electrical characteristicsOutput circuitOpen-collector outputVoltage outputPush-pull outputLine driver output
Supply voltage VccDC 5V±0.2DC 5～24VDC 5V±0.2DC 5～24VDC 5V±0.2DC 5～24VDC5V±0.2DC 5～24V
Current consumption≤60mA≤60mA≤60mA≤100mA
Output high level≥3.5V≥Vcc-2.5V--≥2.5V≥Vcc-2.5V
Output low level≤0.5V≤0.5V--≤0.5V≤1.0V
Rise time Tr≤500ns≤1500ns--≤200ns≤500ns
Fall time Tf≤100ns≤300ns--≤200ns≤200ns
Maximum frequency response0～150kHz0～150kHz0～150kHz0～150kHz0～150kHz0～150kHz


Model selection

Shaft typeDiameter of shellDiameter of shaftConnection typeCable length *ResolutionProduction identifierZ signalZ signal wavelengthOutput mode *Voltage *
KP: Blind shaft38: 38mm08: 8mmG: Cable edge output1: 1m
2: 2m
3: 3m
4: 4m		360: 360 pprBM: Output 1 if receiving Z signalDefault: 1TC: Open-collector NPN
CP: Open-collector PNP
T: Voltage ouput NPN+R
P: Push-pull output NPN+PNP
L: Line driver 26LS31
K: Line driver 7272		5: +5VDC
830: +8~30VDC

Note: * denotes optional parameters, you can select parameters in drop-down lists to finish your order. Some customizable parameters can't be selected from the lists directly, please contact customer service staff for further communication.

Features

  • The encoder adopts a special ASIC chip inside, which is stable and reliable in signal processing and ensures accurate output pulse.
  • The overall structure is durable, long life, suitable for long time high frequency operation of industrial occasions.
  • Incremental encoder has excellent anti-interference performance, can work stably in complex electromagnetic environment.
  • Compact and lightweight, suitable for automation equipment with limited installation space.
  • Modular design, easy installation, fast and efficient commissioning.

Dimension (unit: mm)

Application

Tips: What should we pay attention to when selecting incremental rotary encoders?

  1. The installation dimensions of the machine, including the positioning port, shaft diameter and mounting holes, cable outlet form, installation space volume, working environment protection class.
  2. Resolution, that is, the number of output pulses in each turn when the encoder works. Whether they meet the design accuracy requirements.
  3. Electrical interface: Encoder output modes are commonly found as push-pull output, voltage output, open-collector output (NPN output, PNP output), line driver output. Its output mode should match the interface circuitry of its control system.
