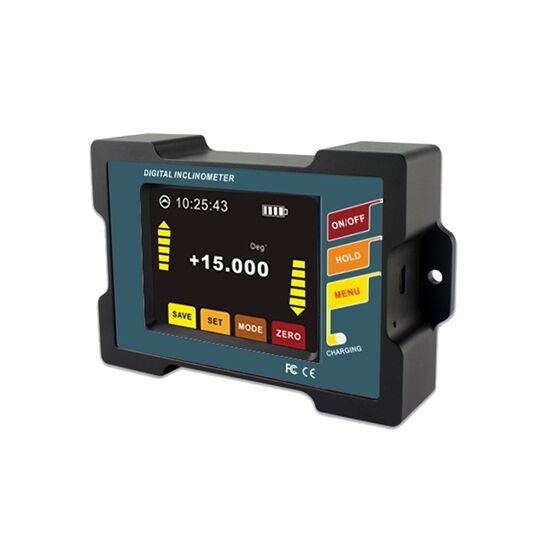

Digital Inclinometer, Single Axis, Output RS485/ RS232

0 reviews • Write a review

from

$849.20

Ex Tax: $849.20

Stock: In Stock
Model: RDDLZ-DMI-815
Weight: 1.00
SKU: RDDLZ-DMI-815

Available Options

Short Description

Output Signal

Measuring Range

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Cheap price digital inclinometer with sigle axis, 64-color true color luminous display LCD, L57.6mm*W43.2mm LCD visible area size. It offers light weight,small size advantages.

Features

Accuracy: <0.003°
Repeatability: 0.003°
Angle resolution: 0.001°
Measuring range: ±15°/ ±30°
Data store function.
Absolute/Relative measurement can switch.
Both sides and bottom can be measured.
Double benchmark strong magnet installation.
Auto-angle interleaved compensation function.
Auto temperature drift compensation.
Built-in rechargable industy battaries.
Night vision fours colors screen.
Filter frequency optional.

Specification

Model	DMI815-15	DMI815-30
Angle Measuring Range	±15°	±30°
Mm Measuring Range	267mm	577mm
Millimeter Measuring Accuracy	0.1 mm (RMS)	0.2 mm (RMS)
The Highest Measuring Accuracy	＜0.005 (Full measuring range)	＜0.001 (Full measuring range)
Measuring Axis	Single axis
Angle Measuringt Solution	0.001°
Three Measuring Mode Selectable	Radian, Angle, mm/meter can be set
Absolute Accuracy	0.05°/rms
Millimeter Measuring LCD	0.02 mm
LCD	64-color true color luminous display
LCD Visible Area Size	L57.6mm*W43.2mm
Working Temperature	-10℃-70℃
Working Humidity	85% RH
Power Supply	3.7V Charging Lithium Battery
Ideal Charging Time	5h
Battery Sustainable Charging Times	11h
Output Signal	RS485/RS232
Equipped with PC Software	VC Software
Connect Plug in	Standard 5 Pin USB Connector
Shock Resistance	10g @11ms, three-axis (Half sine wave)
Shock Impact	10g rms, 10-100Hz
Weight	300g
Waterproof Grade	IP54
Material	Aluminum Anodizing
Size	L117mmW75mmH27.1mm
Certificate	CE, FCC, ROHS
Warranty	12 months

Dimension (unit=mm)

Measuring Direction

Tips: The Principle of Digital Inclinometer.　　
When the shaft in the base body rotates in one direction, the count increases, and when the rotation direction changes, the count decreases. The count is related to the initial position of the inclinometer. When initializing the inclinometer, its count value is set to 0. By calculating the angle of rotation, the position and speed can be easily measured.
