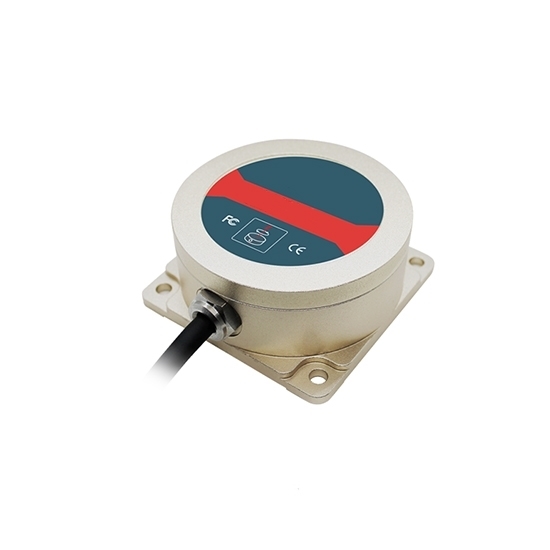

Digital Output Gyroscope Sensor, ±180°

0 reviews • Write a review

from

$547.94

Ex Tax: $547.94

Stock: In Stock
Model: RDDLZ-GS-TL740D
Weight: 1.00
SKU: RDDLZ-GS-TL740D

Available Options

Short Description

Output Signal

Signal Protocol

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Lower price angular velocity sensor with supply voltage AC9-36V, DC5V, azimuth accuracy <0.2°/ m, nonlinear 0.3% of FS, resolution 0.02°. It has the advantages of high performance, waterproof, light weight and long service life.

Specification

Model	RDDLZ-TL740D
Measuring range	±180°
Acquisition bandwidth	>100Hz
Resolution	0.02°
Azimuth accuracy	<0.2°/ m
Nonlinear	0.3% of FS
Max angle rate	150°/ s
Accelerometer range	±4g
Accelerometer resulution	0.005g
Accelerometer accuracy	10 mg
Starting time	5s
Supply voltage	AC9-36V
Current	40mA (5V)
Working temperature	-40℃-80℃
Storage temperature	-40℃-85℃
Vibration	5g-10g
Impact	200g pk, 2ms, 1/2 sine
Working life	10 years
Output rate	5Hz/ 15Hz/ 25Hz/ 50Hz/ 100Hz can be set
Output signal	RS232/ RS485
MTBF	≥50000 hours/ times
Iusulation resistance	≥100M
Impact resistance	100g@11ms, three axis (half sine wave)
Anti-vibration	10grms, 10-1000Hz
Protection grade	IP67
Certificate	CE, FCC, RoHS
Warranty	12 months

Dimension (unit=mm)

Selection guide

Tips: Working Principle of Gyroscope Sensor

The direction pointed by the axis of rotation of a rotating object will not change when it is not affected by external forces. According to this principle, use it to maintain direction. Then use a variety of methods to read the direction indicated by the axis, and automatically transmit the data signal to the control system. Modern gyroscope is an instrument that can accurately determine the position of a moving object. It is an inertial navigation instrument widely used in modern aviation, navigation, aerospace and defense industries. The main part of the traditional inertial gyroscope is a mechanical gyroscope, and the mechanical gyroscope has high requirements on the process structure. The fiber optic gyroscope has a compact structure, high sensitivity and reliable operation. Fiber optic gyroscopes have completely replaced mechanical traditional gyroscopes in many fields and become a key component in modern navigation instruments.
