3D Gyroscope Sensor, Current Output 4-20mA/0-20mA, 1/2/3 Axis

0 reviews • Write a review

from

$676.17

Ex Tax: $676.17

Stock: In Stock
Model: RDDLZ-GS-ML728
Weight: 1.00
SKU: RDDLZ-GS-ML728

Available Options

Output Signal

Angular Velocity Range

Angular Velocity Output

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

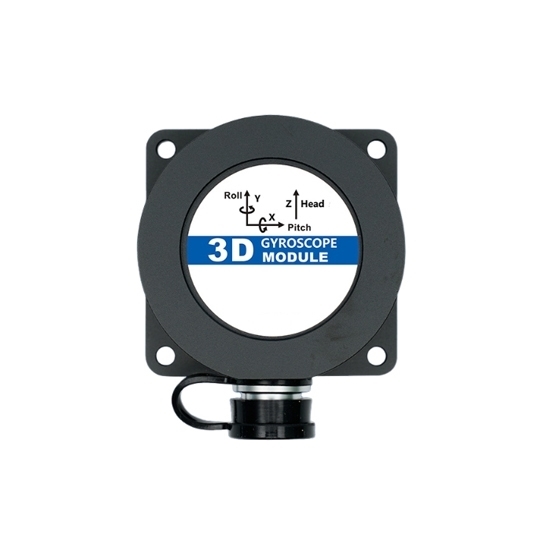

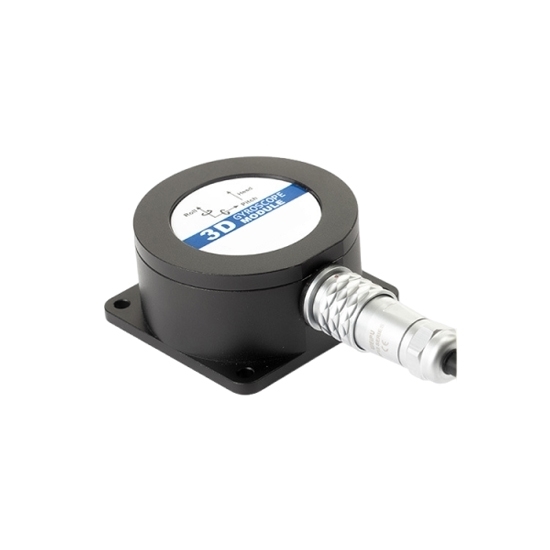

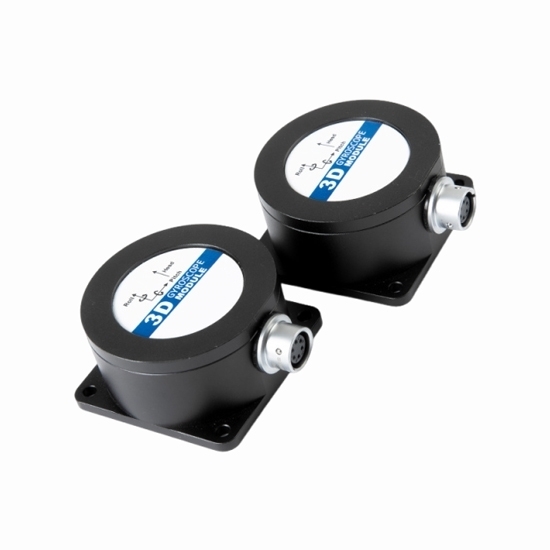

ML728 is a current output gyroscope from RDDLZ online store, which is mainly used for measuring the angular velocity sensor of moving objects. Gyroscope sensor built-in high-performance digital signal processing chip, the current signal output can be selected 4-20mA/0-20mA, equipped with adaptive filtering technology, angular velocity output can be selected from single axis-X axis/2 axis-X, Y axis/3 axis-X, Y, Z axis. The current output gyroscope sensor can be selected from ±50°/S to ±1200°/S. It adopts MEMS manufacturing process and can cope with all kinds of harsh environments.

Specification

Model	RDDLZ-ML728-50	RDDLZ-ML728-150	RDDLZ-ML728-300
Angular Velocity Range	±50°/S	±150°/S	±300°/S
Output Signal	4~20mA/0-20mA (optional)
Angular Velocity Output	1/2/3 Axis (X, Y, Z optional)
Acquisition Width	>2000Hz
Resolution	±0.001°/S
Non-linearity	0.1% of FS
Temperature Compensation Range	-45°C~85°C
Temperature Drift	<±0.1°/sec	<±0.15°/sec	<±0.2°/sec
Power-up Time	0.5s
Current	6mA
Bias Stability	5°/hr 1σ
MTBF	≥45000 hours/times
Shock Resistance	2000g, 2ms, 1/2sine

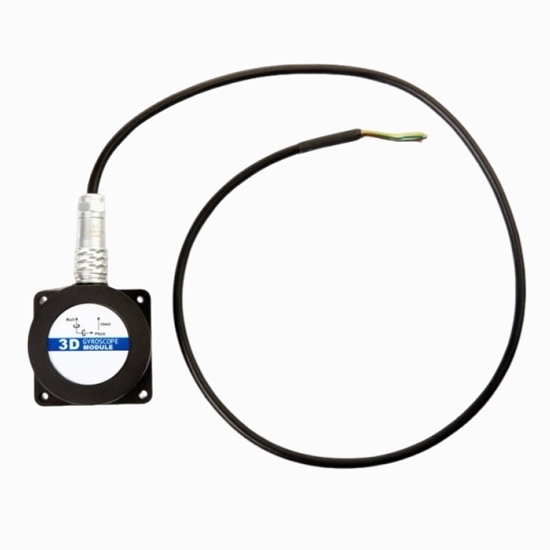

Cable	Standard 1.5 meter length, abrasion-resistant, oil-resistant, wide temperature, shielded cable 6*0.3mm2
Connector	6-pin flight plug
Supply Voltage	9-36VDC
Operating Current	35mA
Output Load	0-500kΩ
Operating Temperature	-40°C~85°C
Storage Temperature	-55°C~100°C
Protection Class	IP67
Shell Material	Aluminum alloy frosted oxidation
Mounting	Four head M4 screws
Weight	500g

Note*: If you need ±450°/S, ±1200°/S or others angular velocity output, please contact us.

Dimensional Drawing (unit: mm)

Axis Direction

Angular Velocity Measurement

Electrical Connection

6 Pole Receptacle Pins	7 Pole Receptacle Pins	Pin Color	Single Axis Gyro	Dual Axis Gyro	3-Axis Gyro
1	1	RED	VCC	VCC	VCC
2	2	BLACK	GND	GND	GND
3	3	GREEN	RS232(RX)	RS232(RX)	RS232(RX)
4	4	YELLOW	RS232(TX)	RS232(TX)	RS232(TX)
5	5	WHITE	X-axis current signal	X-axis current signal	X-axis current signal
6	6	BROWN	NC	Y-axis current signal	Y-axis current signal
/	7	BLUE	NC	NC	Z-axis current signal

Wiring Drawing

Applications

Tips: 3D current type gyroscope sensor basics

RDDLZ-ML728 is a gyro sensor mainly used to measure the angular velocity of moving objects, this gyroscope has a large working bandwidth, high resolution, small zero drift, high linearity, short start-up time, shock resistance, vibration resistance, low-cost and other characteristics.

3D current type gyroscope can measure the fastest speed of 1200°/s, please do not exceed this limit when using, otherwise it will cause measurement overload, which causes large integration error, resulting in large output angular velocity error. It has been widely used in automobile, marine, position control and attitude control of moving objects, as well as other occasions that require precise angle measurement.
