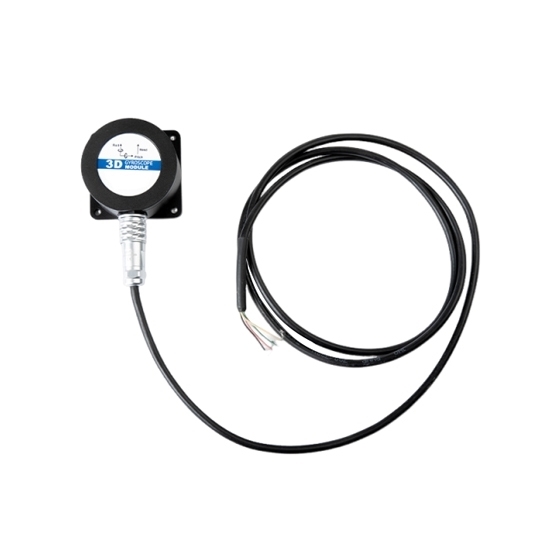

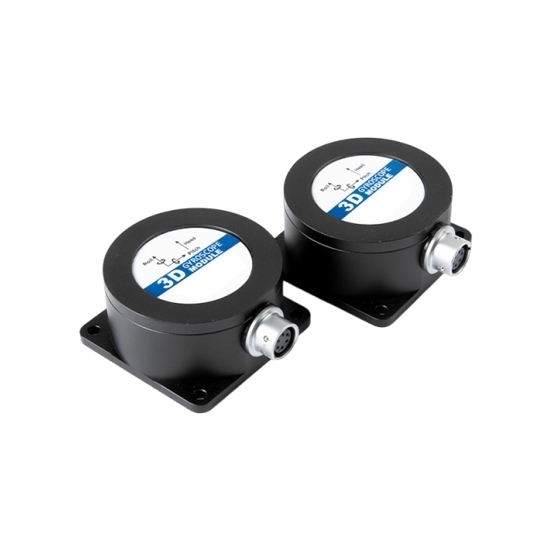

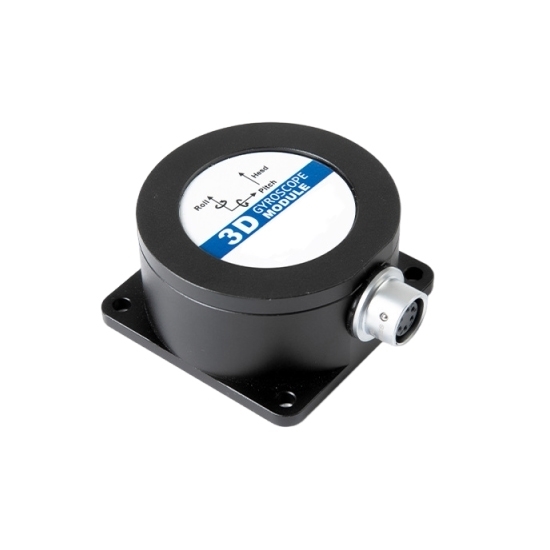

3D Gyroscope Sensor, 9 Axis, Acceleration/ Angular Velocity/ Angle

0 reviews • Write a review

from

$653.88

Ex Tax: $653.88

Stock: In Stock
Model: RDDLZ-GS-9-AXIS
Weight: 1.00
SKU: RDDLZ-GS-9-AXIS

Available Options

Output Signal

Angular Velocity Range

Acceleration Range

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

High-precision industrial grade gyro sensor provides ultra-high resolution with bandwidth (>1000Hz) and short start-up time of only 0.5 seconds.Support multi-frequency automatic output, using RS232/RS485/RS422/TTL signal output methods, adapt to a wide range of industrial applications. Wide operating voltage, low power consumption, long life.

Specification

Model	RDDLZ-ML7600-3-D
Measuring Axial	X/Y/Z axis
Measuring Range	Angle: ±180°
	Acceleration: ±2/4/8/16g
	Angular velocity: ±50/150/300/450/1200/2000°/s
Acquisition Band Width	>1000Hz
Resolution	Angle: ±0.01°/S
	Acceleration: ±0.001g
	Angular velocity: ±0.005°/s
Temperature Compensation	Full temperature range,-45℃~85℃
Power-on Startup Time	0.5s
Auto Output Rate	5Hz output, 15Hz, 35Hz, 50Hz can be set (RS485 without this function)
Output Signal	RS232/RS485/RS422/TTL
Average Trouble-Free Operating Time	≥45000 hours/time
Negative Tenderness	20000g, 2ms, 1/2sine
Vibration Resistant	10grms, 10~1000HZ
Waterproof Rating	IP67
Cable	Standard 1.5 meters length, wear-resistant, oil-resistant, wide temperature, shielded cable 5*0.2mm²
Connector	6-pin aviation plug
Tolerance Load	1000
Operating Voltage	9~36V
Operating Current	40mA
Operating Temperature	-40℃~85℃
Storage Temperature	-55℃~125℃
Connector	Lead wire (1.5m) or waterproof aviation socket
Housing Material	Aluminum alloy sandblasted oxidation
Mounting	Four M4 screws
Dimensions	605929mm
Net Weight	180g

Dimensional Drawing (unit: mm)

Axis Direction

Wiring Drawing

Applications

Tips: How do I process 9-axis sensor data to improve accuracy?

The following steps are typically required to optimize data accuracy:

Calibration: Calibrate sensors for acceleration, angular velocity, and magnetic field after initial use and long-term operation.
Sensor Fusion: Integration of multi-axis data using filtering algorithms such as Kalman filtering or complementary filtering to reduce noise and drift.
Temperature Compensation: Prevents changes in ambient temperature from affecting measurement data.

The above methods can significantly improve the reliability and stability of sensors in complex application scenarios.
