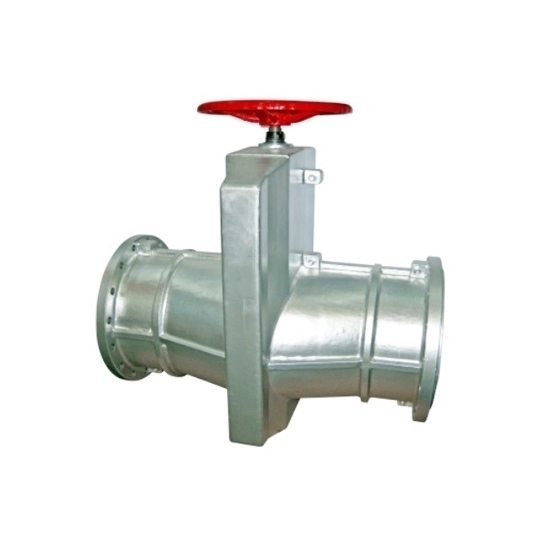

6 Inch Manual Pinch Valve

6 Inch Manual Pinch Valve
6 Inch Manual Pinch Valve
0 reviews • Write a review
from
$1,295.38
Ex Tax: $1,295.38
  • Stock: In Stock
  • Model: RDDLZ-MPV-150
  • Weight: 1.00
  • SKU: RDDLZ-MPV-150

Available Options

Add to Cart
Buy Now Question?
Add to Wish List Compare this Product

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Note: This pinch valve cannot be used for drinking water.

Low price 6 inch (DN150) pinch valve for sale online. It is a manual pinch valve for tubing, durable and low maintenance, widely used in industries including chemical processing, pharmaceutical, water treatment and mining.

Specifications

  • Model: RDDLZ-GJ41X-1.0L
  • Size: 6 inch (DN150)
  • Drive Mode: Manual
  • Body Materials: Aluminum alloy, HT200
  • Nominal Pressure: 1.0 MPa
  • Connection Form: Flange
  • Operating Temperature: ≤90℃
  • Weight: 43kg
  • Applicable Medium: Ore pulp, aid/alkali liquid, grinding aid, dry and wet filler

Dimensions (Unit: mm)

DNLDD1D2bz-φ
150500280240210258-φ23


Applications

Pinch valves are commonly used in industrial applications where precise flow control is not required, and the fluid being handled is abrasive or corrosive. They can be used in chemical processing to control the flow of chemicals through pipelines and tanks, and in mining and minerals processing to control the flow of slurries, tailings, and other abrasive fluids.

Tips: What is a flange pinch valve?

A flange pinch valve is a type of pinch valve that is designed to be connected to a pipeline using flanges. The valve typically consists of a body or housing, a flexible sleeve or tube, and two flanges on either end of the housing. The flanges are designed to connect to matching flanges on a pipeline, allowing the valve to be easily installed and removed as needed. Flange pinch valves can be used in a variety of applications, including in the chemical, pharmaceutical, and food processing industries, where they can offer a reliable and cost-effective solution for controlling the flow of fluids or gases. They are typically available in a range of sizes and materials to suit different applications and can be operated manually or automatically, depending on the specific requirements of the application.
