1/2" Digital Flow Switch For Water

0 reviews • Write a review

from

$307.99

Ex Tax: $307.99

Stock: In Stock
Model: RDDLZ-FLOW-W12
Weight: 1.00
SKU: RDDLZ-FLOW-W12

Available Options

Short Description

Signal Output

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

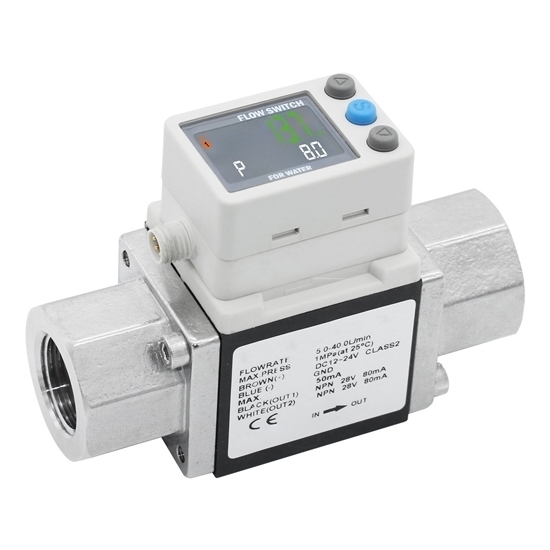

Lightweight water flow switch with digital display can monitor data in real time. It is designed with water sensor to transmit data to the mainboard, selectable signal output PNP or NPN.

Specification

Model		RDDLZ-NPF3W72004
Port Size Rc (PT)		1/2 inch
Applicable Fluid		Water, Ethylene glycol aqueous solution (with viscosity of 3 MPa·s [3 cP] or less)
Detection Method		Karman vortex
Rated Flow Range		2~16L/min
Display Flow Range		1.7~22.0L/min
Set Flow Range		1.7~22.0L/min
Smallest Settable Increment		0.1L/min
Conversion of Accumulated Pulse		0.1L/pulse
Fluid Temperature		0 to 90°C (No freezing or condensation)
Display Unit		Instantaneous flow: L/min, Accumulated Flow: L
Accuracy		Display value: ±3% F.S. Analog output: ±3% F.S.
Repeatability		±2% F.S
Temperature Characteristics		±5% F.S. (25°C standard)
Operating Pressure Range		0~1MPa
Proof Pressure		45kPa or less at the maximum flow
Accumulated Flow Range		99999999.9L
		By 0.5L
Switch Output	/	NPN or PNP
	Max. Load Current	80mA
	Max. Applied Voltage	DC28V
	Internal Voltage Drop	NPN: 1 V or less (at load current of 80 mA) PNP: 1.5 V or less (at load current of 80 mA)
	Response Time	0.5s/ 1s/ 2s
	Output Protection	Short-circuit protection
Analog Output	Voltage Output	Voltage output: 1 to 5 V Output impedance: 1 kΩ
	Current Output	Output current: 4 to 20 mA Max. load impedance: 300 Ω for 12 VDC, 600 Ω for 24 VDC
	Response Time	0.5s/ 1s/ 2s (linked with the switch output)
Hysteresis		Variable
External Input		Voltage free input: 0.4 V or less (Reed or Solid state), input for 30ms or longer

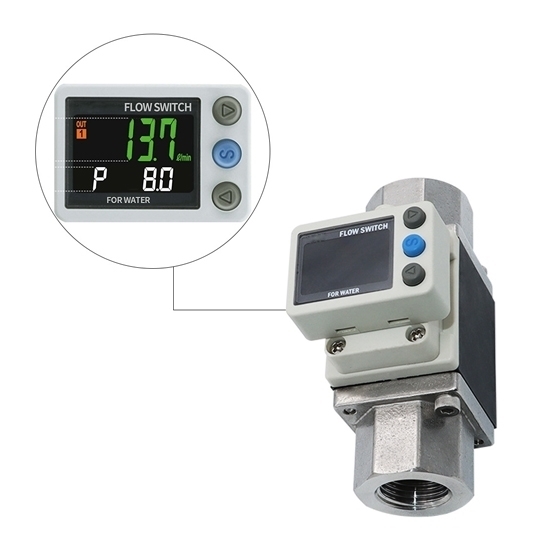

Display Method		2-screen display (Main screen: 4-digit, 7-segment, 2-color, Red/Green Sub screen: 6-digit, 11-segment, White) Display values updated 5 times per second
Indicator Light		Output 1, Output 2: Orange
Power Supply Voltage		DC12~24V±10%
Current Consumption		Below 50mA
Environment	Enclosure	IP65
	Operating Temperature Range	0 to 50°C (No freezing or condensation)
	Operating Humidity Range	Operation, storage: 35 to 85% R.H. (No condensation)
	Withstand Voltage	1000 VAC for 1 minute between terminals and housing
	Insulation Resistance	50 MΩ or more (500 VDC measured via megohmmeter) between terminals and housing
Standards and Regulations		CE, UL(CSA), RoHS
Wetted Parts Material		PPS. SUS304. FKM. SCS13, Non-grease
Weight		1kg

Flow Rate Diagram

Voltage Output: A: 1V, B: 1.5V, C: 5V
Current Output: A: 4mA, B: 6mA, C: 20mA

Pin Number & Wire Color

Pin Number	Content	Wire Color
1	DC (+)	Brown
2	OUT2	White
3	DC (-)	Blue
4	OUT1	Black

Body Dimensions (Unit: mm)

Basic Dimensions
A	AA	B	D	E	F	G	H	J	K	L	N	P
78	54	30	60	40.6	15.2	27	18	39	30	18	13.6	φ2.7 deep 12

Bracket Dimensions
S	T	U	V	W	WX	Y	Z
28	22	32	40	50	4.5	5	1.5

M8 Lead Wire Dimensions (Unit: mm)

Details

Tips: What is a digital water flow switch used for?

Digital water flow switch is used for electric water heaters, solar water heaters, air conditioners and other water systems for water circulation control, water inlet and outlet control, water heating control, water pump switch control, solenoid valve on-off control or water outlet power-off, water outlet power-on control and other processes. It is a water sensor that converts the water flow into an on-off electrical signal after reaching a certain flow rate.
