50 Ton Hydraulic Bottle Jack

0 reviews • Write a review

from

$383.07

Ex Tax: $383.07

Stock: In Stock
Model: RDDLZ-HBJ-50
Weight: 1.00
SKU: RDDLZ-HBJ-50

Available Options

Short Description

With Matched Hydraulic Pump

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Affordable price 50 ton hydraulic jack for sale online. The provided bottle jack uses hydraulic power to lift heavy loads, 100mm stroke, portability, flexibility and big jacking force, especially used in bridge construction, mechanical adjustment, and equipment dismantling.

Features

Hydraulic bottle jack with 50 ton capacity is designed for lifting heavy loads.
Blackening of the plunger surface to protect the using of the longevity of the product.
The plunger has the function of retracting automatically.
The joint of the hydraulic bottle jack adopts a threader ZG3/8" fast connector, thread locking, and compact structure.
50 ton hydraulic jack is suitable for a variety of environments, commonly used in electric power, chemical industry, steel, machinery, industry and so on.

Specifications

Hydraulic Bottle Jack	Model	RDDLZ-FCY-50100
	Tonnage	50 ton
	Self Height	162mm
	Stroke	100mm
	Outer Diameter	128mm
	Inner Diameter	80mm
	Weight	13.5kg
	Effective Area	78.5cm

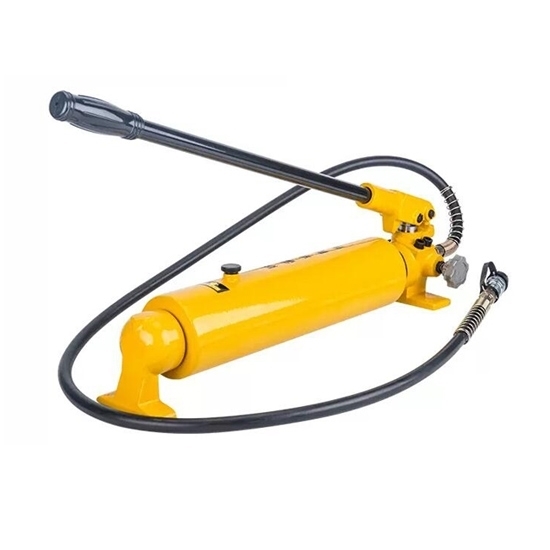

Matched Hydraulic Jack Pump	Model	RDDLZ-CP-700A
	Standard Tubing Length	1.7m
	High Pressure	700kg/cm²
	Low Pressure	20kg/cm²
	High Pressure Flow	2.3CC
	Oil Storage Capacity	2700CC (No. 15 Anti-Wear Hydraulic Oil)
	Low Pressure Flow	13CC
	Weight	15kg

Details

*Notes

This hydraulic jack is not recommended for cars.
In order to operate correctly all cylinders need to be connected to a solid lifting surface.
Cylinder damage can result from the use of cylinders on sandy, earthen or loose surfaces.

Applications

At present, 10 to 200 ton hydraulic jacks are widely used in power maintenance, bridge maintenance, heavy lifting, static pile pressing, foundation settlement and bridge, especially in road and railway construction, mechanical adjustment, and equipment dismantling.

Tips: Hydraulic Jacks Application in Moving Heavy Objects

Hydraulic jack is very important in moving heavy objects. When the weight cannot be reached by manpower or to save manpower, the jack is necessary. There are many types of jacks and they are used in different fields. Hydraulic jacks are widely used because they are more efficient when carrying heavy objects.
