Note: This shuttle valve cannot be used for drinking water.

Hydraulic shuttle valves are commonly used in various hydraulic systems, such as in mobile equipment, industrial machinery, and aircraft hydraulic systems, where the ability to switch between hydraulic circuits or isolate them is necessary for proper operation. They provide a simple and reliable means of controlling hydraulic fluid flow in these applications.

Specification

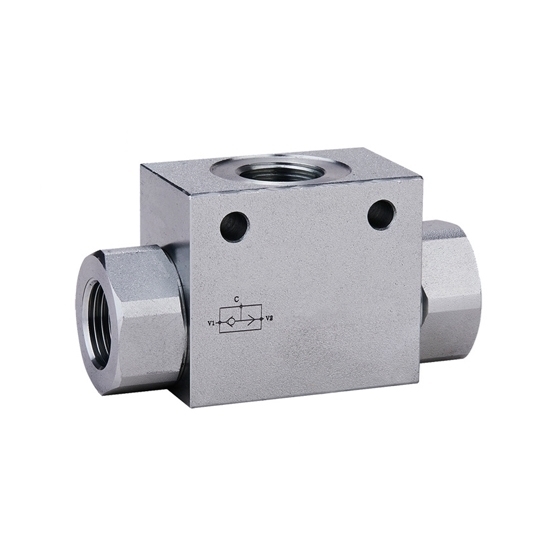

• Model: RDDLZ-VUSF-G1/2
• Shuttle Valve Type: 3 Way
• Body Material (Optional): Carbon Steel
• Connection Thread Port: G1/2 inch (DN13)
• Max. Pressure: 350bar
• Max. Flow: 80L/min
• Operating Temperature Range: +40℃~+70℃
• Ambient Temperature: -20℃~+60℃

Dimension (Unit: mm)

Tips: What are the advantages of hydraulic shuttle valves?

Hydraulic shuttle valves offer several advantages in hydraulic systems. Firstly, they provide directional control, allowing selective routing of hydraulic fluid based on specific conditions or signals. This versatility enables efficient operation and control of hydraulic actuators, motors, and other components. Secondly, hydraulic shuttle valves typically have a compact design, making them suitable for applications with limited space constraints. Their small footprint facilitates integration into complex hydraulic systems without sacrificing performance. Additionally, hydraulic shuttle valves offer reliable operation when properly maintained, ensuring consistent fluid flow management over extended periods. Their robust construction and compatibility with various hydraulic fluids and pressures further enhance their reliability and suitability for a wide range of applications. Overall, the advantages of hydraulic shuttle valves include directional control, compact design, and reliable operation, making them indispensable components in many hydraulic systems.
