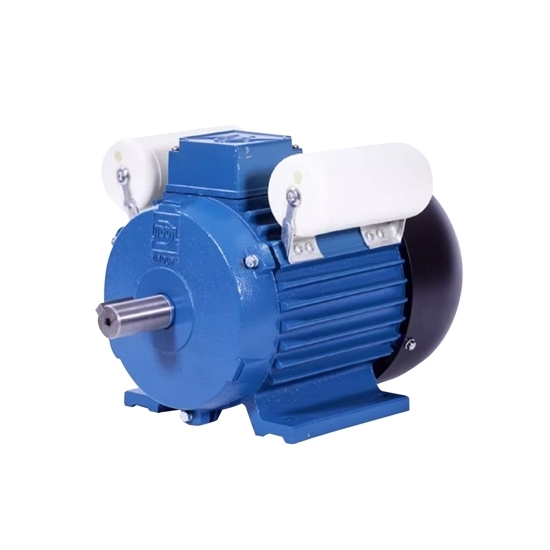

3 Hp (2.2kW) 220V Single Phase AC Induction Motor

0 reviews • Write a review

from

$526.08

Ex Tax: $526.08

Stock: In Stock
Model: RDDLZ-SPM-2200
Weight: 1.00
SKU: RDDLZ-SPM-2200

Available Options

Short Description

Voltage (V)

Speed

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

3 hp single phase motor, is also called an asynchronous motor. It has 1500rpm/3000rpm speed, 220V/110V/230V/240V voltage, and works at 50Hz/60Hz frequency. 2.2kW 1 phase motor is available with two capacitors, offers zero starting torque at rest, used for drills, air conditioners, compressors, pumps, cranes, garage door opening and closing systems.

Specifications

Model	RDDLZ-YL90L-2	RDDLZ-YL100L1-4
Rated Output	2.2kW (3hp)
Efficiency	77%	77%
Power Factor	0.95 COSφ
Rated Speed	2820rpm	1420rpm
Rated Current	13.1A	13.3A
Pole	2 Pole	4 Pole
Voltage	220V AC 50Hz (Default), other customizations can be customized.
Tmax/Tn	1.8 times
Ts/Tn	1.7 times
ls/ln	80 times	80 times

Dimension (Unit: mm)

Frame Size	Mounting Dimension									Overall Dimension
Frame Size	A	B	C	D	E	F	G	H	K	AB	AC	AD	AE	HD	L
90L	140	125	56	24	50	8	20	90	10	180	185	160	130	240	400
100L	160	140	63	28	60	8	24	100	12	205	220	180	140	260	430

Details

Tips: Advantages of single phase asynchronous motors

A single phase asynchronous motor is a motor powered by a single-phase AC power source. It has a simple structure, low cost, reliable operation, low vibration and noise, and convenient maintenance. Due to the universality of the power supply, it is widely used in industrial and agricultural production, electronic instruments, medical equipment and household appliances.
