- Stock: In Stock
- Model: RDDLZ-PP-FG600S-A3
- Weight: 1.00
- SKU: RDDLZ-PP-FG600S-A3

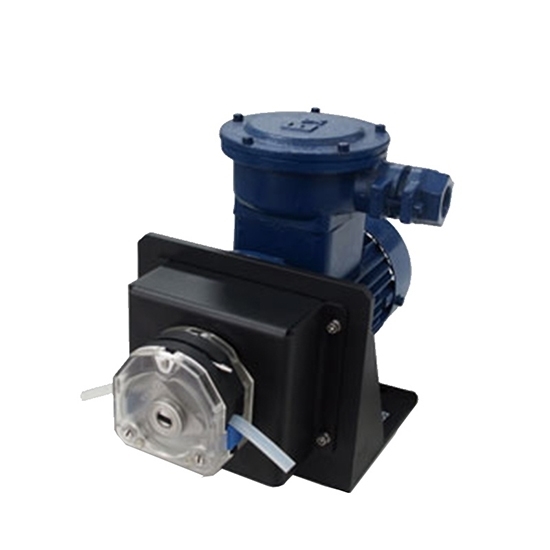

The industrial peristaltic pump has dedicated explosion-proof pump head with ExdIIBT4 grade. High flow rate, maximum value 2200 GPD (6000 mL/min), wide variable speed range of 72-600 rpm, applicable tubing size 4.8/6.4/7.9/9.6mm. This explosion-proof peristaltic pump is suitable for high-precision liquid transmission.
Specification
| Model | RDDLZ-PP-FG600S-A3 | |
| Applicable Pump Head Model | YZ15, YZ25, YT15, YT25, KZ25, KZ25-L | |
| Flow Range | 1-2200 GPD (4-6000 ml/min) | |
| Speed Range | 72-600 rpm | |
| Speed Accuracy Error | ＜±3% | |
| Speed Resolution | 0.1Hz at 2 rpm | |
| Power Supply | 3-phase 380V or 220V, 50Hz (optional) | |
| Rated Power | 550W | |
| Speed Control | VFD stepless speed regulation (standard configuration VFD motor without connecting cable) | |
| Control Functions | Start/stop, forward/reverse, analog speed regulation, RS485 communication, etc. | |
| Working Environment | Ambient temperature 0～40℃, relative humidity <80% | |
| Explosion-Proof Grade | ExdIIBT4 | |
| Protection Grade | IP55 (only for motor) | |
| Dimension | 449 (L) x 350 (W) x 332 (H) mm | |
| Weight | 37kg | |
Note: Package does not include VFD equipment, please contact us if you need VFD!
Applicable Pump Heads, Hoses and Flow Parameters
| Peristaltic Pump | Applicable Pump Head | Channel Number | Applicable Hoses | Single-channel Flow Rate (ml/min) |
| RDDLZ-FG600S-A3 | YZ15 | 1-4 | 13#14#19#16#25#17# | 4-1700 |
| YT15 | 1-4 | 13#14#19#16#25#17#18# | 4-2300 | |
| YZ25 | 1-4 | 15#24# | 120-1700 | |
| YT25 | 1-4 | 15#24#35#36# | 120-2900 | |
| KZ25/KZ25-L | 1-2 | 15#24#35#36# | 177-6000 |
peristaltic pump Horse Specification (Unit: mm)
| Model | Inner Diameter | Outer Diameter | Wall Thickness |
| 15# | 4.8 | 9.8 | 2.5 |
| 24# | 6.4 | 11.4 | 2.5 |
| 35# | 7.9 | 12.9 | 2.5 |
| 36# | 9.6 | 14.6 | 2.5 |
Features
- Explosion-proof peristaltic pump is driven by AC gear explosion-proof motor, split design, and the driver is separated from the frequency converter.
- Explosion-proof peristaltic pump must be used in conjunction with the frequency converter. It has the functions such as start/stop, forward/reverse, speed regulation, and communication.
- Stepless variable speed, adjustment resolution 0.1Hz.
- Explosion-proof peristaltic pump has IP55 high protection grade, suitable for complex industrial environment.
- If the explosion-proof peristaltic pump needs to be placed in a dangerous industrial environment, an explosion-proof converter should be selected.

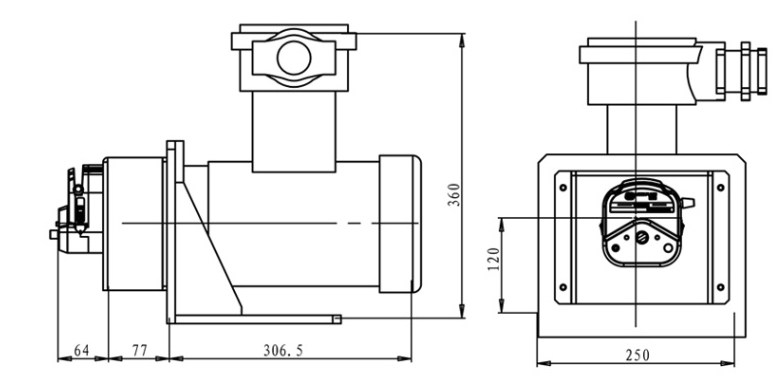

Explosion-Proof Peristaltic Pump Dimensions Drawing (Unit: mm)
Tips: Preparations before starting explosion-proof peristaltic pump.
Generally, after purchasing explosion-proof peristaltic pump equipment, what users care about is the degree of mastery of relevant technical data and the cooperation of production processes, which is convenient for users to start-up, debug and use the equipment. Extend the service life of equipment, the explosion-proof peristaltic pump reduces the production cost as much as possible for users, and brings additional production benefits. Therefore, before using the explosion-proof peristaltic pump, users must read the relevant technical information.
After ensuring the stable installation of equipment, it is necessary to check all the lubrication parts of the explosion-proof peristaltic pump, and add gear oil to ensure smooth operation. Then, power on the main control box and install standard wiring. At this time, do not run the explosion-proof peristaltic pump immediately, let it be unloaded for 3~5 minutes to see if there is any abnormal phenomenon such as stuck or bumped. If there is no abnormality, it can be put into production normally. Once the above situation occurs, it is necessary to stop the machine immediately for inspection, and eliminate the fault completely, so as to extend the service life of explosion-proof peristaltic pump.
